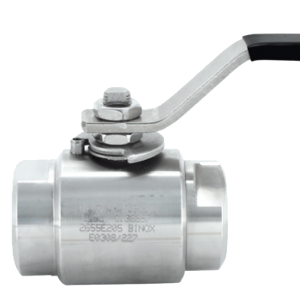

Threaded Ends Ball Valves KH127
FERGO Armaturen GmbH has a wide variety of different ball valves. These ball valves mainly differ in connection form, body material, maximum pressure approval and the available certificates (TA Luft, FireSafe, DVGW Gas, DVGW Trinkwasser). You can choose between flange-connection (DIN or ANSI), threaded ends (DIN or ANSI and female or male thread) and socket weld or butt weld ends. The available standard body materials are brass, steel and stainless steel. Special materials like e.g. titan and duplex are also available on request. Ball valves with ISO-top mounting flange (ISO 5211) can be automated with pneumatic or electric actuators. The different sizes, pressure stages and materials are shown on the datasheet, which can be downloaded on our website. For special executions please contact our sales department.
Ball valve KH127-SSTHI (Art.-Nr.: 100-1050-xx)
• 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
• External mirror polishing
• Design: 2-way
• Threads: ISO 7/1 Rp F/F
• Design according to DIN DVGW for gases PN1-5 (MOP 5)
• Full bore
• 2-piece body
• Body: 1.4408
• Ball: 1.4408
• Ball seat: PTFE
• Stem seal: PTFE
• Medium-Temp. (min./max.): -20°C to +150°C
• Operation: Handlever
Ball valve KH127-SSTHZ (Art.-Nr.: 100-1051-xx)
• 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
• External mirror polishing
• Design: 2-way
• Threads: ISO 7/1 Rp M/F
• Design according to DIN DVGW for gases PN1-5 (MOP 5)
• Full bore
• 2-piece body
• Body: 1.4408
• Ball: 1.4408
• Ball seat: PTFE
• Stem seal: PTFE
• Medium-Temp. (min./max.): -20°C to +150°C
• Operation: Handlever
Ball valve KH127-SSGHI (Art.-Nr.: 100-1052-xx)
• 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
• Design: 2-way
• Threads: ISO 7/1 Rp F/F
• Full bore
• 2-piece body
• Body: AISI316L
• Ball: AISI316L
• Ball seals: PTFE+ Carbografite
• Medium-Temp. (min./max.): -20°C to +210°C
• Operation: Handlever
Ball valve KH127-SSOHI (Art.-Nr.: 100-1053-xx)
• 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
• Design: 2-way
• Threads: ISO 7/1 Rp F/F
• Full bore
• 2-piece body
• Body: AISI316L
• Ball: AISI316L
• Ball seal: POM
• Medium-Temp. (min./max.): -20°C to +80°C
• Operation: Handlever
Ball valve KH127-LSGHI (Art.-Nr.: 100-1054-xx)
• 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
• Design: 2-way
• Threads: ISO 7/1 Rp F/F
• Full bore
• 2-piece body
• Body: 105 (cast steel)
• Ball: AISI316L
• Ball seal: PTFE+ Carbografite
• Medium-Temp. (min./max.): -20°C to +210°C
• Operation: Handlever
Ball valve KH127-LSOHI (Art.-Nr.: 100-1055-xx)
• 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
• Design: 2-way
• Threads: ISO 7/1 Rp F/F
• Design according to DIN DVGW for gases PN1-5 (MOP 5)
• Full bore
• 2-piece body
• Body: A105 (carbon stee)l
• Ball: AISI316L
• Ball seal: POM
• Medium-Temp. (min./max.): -20°C to +80°C
• Operation: Handlever
Type
Ball Valve
Operations
Lever
Sizes
1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Body material
ASTM A105
Pressure range
PN64, PN100, PN120, PN160, PN210
Ball material
1.4301, 1.4401
Ball seat
PTFE, POM, PTFE+Graphite
Connection
F/F
Certifications
FireSafe
