Threaded Ends Ball Valves KH129

FERGO Armaturen GmbH has a wide variety of different ball valves. These ball valves mainly differ in connection form, body material, maximum pressure approval and the available certificates (TA Luft, FireSafe, DVGW Gas, DVGW Trinkwasser). You can choose between flange-connection (DIN or ANSI), threaded ends (DIN or ANSI and female or male thread) and socket weld or butt weld ends. The available standard body materials are brass, steel and stainless steel. Special materials like e.g. titan and duplex are also available on request. Ball valves with ISO-top mounting flange (ISO 5211) can be automated with pneumatic or electric actuators. The different sizes, pressure stages and materials are shown on the datasheet, which can be downloaded on our website. For special executions please contact our sales department.

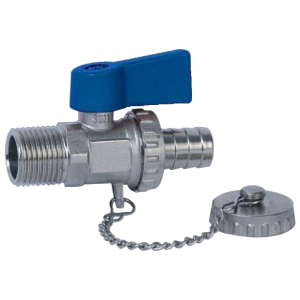

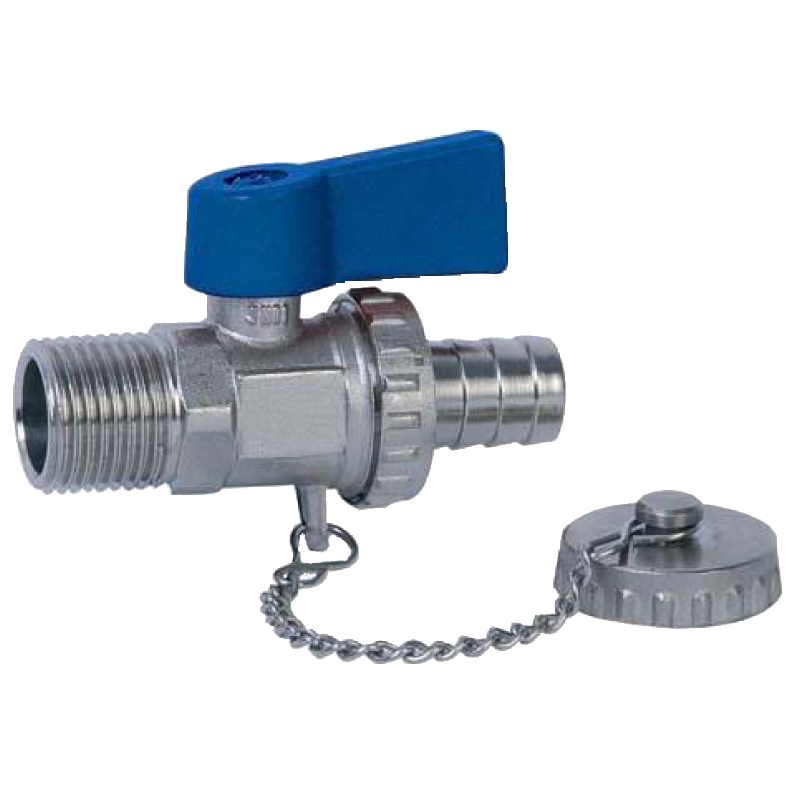

Ball (boiler discharge) valve KH129-MMTLA-1/2″ (Art.-Nr.: 100-1060-04)
• Threaded end (male) ISO 228/1 and Ø15 hose connection with safety cap
• Full bore
• Nominal pressure: PN25
• Body/Ball: brass, nickel-plated finishing
• Ball seat: PTFE
• Operation: aluminium butterfly lever

Download “Ball Valve KH129”
