Flow sight glass type GD100

Flow sight glass made of stainless steel with flanged and threaded connection

Stainless steel sight Glass : quality and control at an exceptional price

Our flow sight glass type GD100 is a versatile product & impresses with its outstanding visual inspection and safety requirements. This stainless steel sight glass is available with flange or socket connection and can be easily integrated into existing systems. The stainless steel body (1.4408/CF8M) offers maximum corrosion resistance and durability. With a PTFE seal and soda-lime tempered glass (DIN 8902), it is designed for operation up to 130 °C (160 °C for short periods) and operating pressures up to 16 bar.

This flow sight glass with soda-lime glass DIN 8902 is an inexpensive and reliable choice for use in non-aggressive applications in the low to medium temperature range. Thanks to its good mechanical strength and optical clarity, it is ideal for general flow monitoring in industrial processes with moderate requirements. Type GD100 is suitable for a wide range of media, including water, neutral liquids, oil, air, inert gases and mild detergents. It is useful for many applications, such as water treatment, HVAC (heating, ventilation, air conditioning), machine and plant monitoring and the food and beverage industry, provided the temperature and pH value are within an acceptable range.

Flanged & threaded sight glass

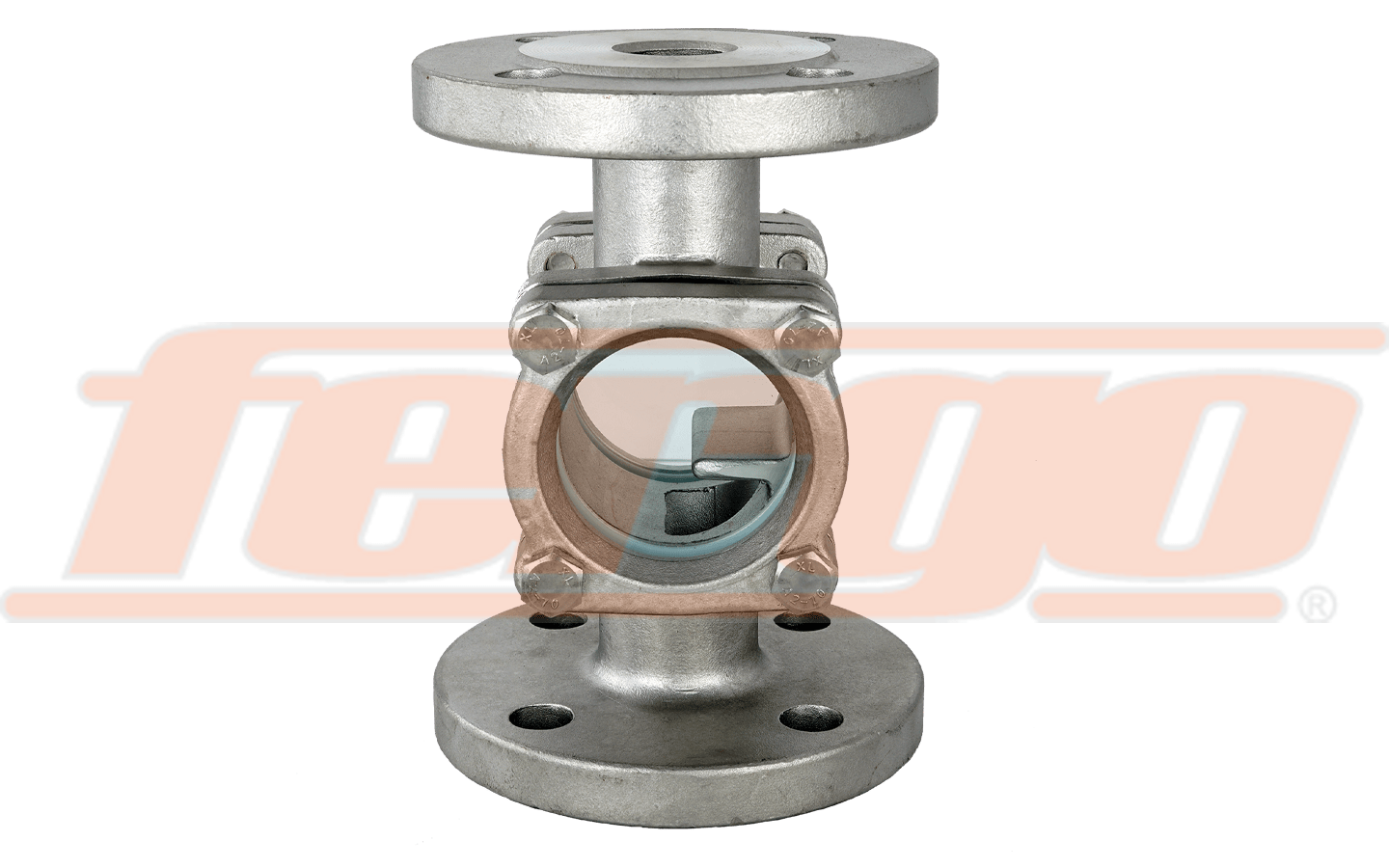

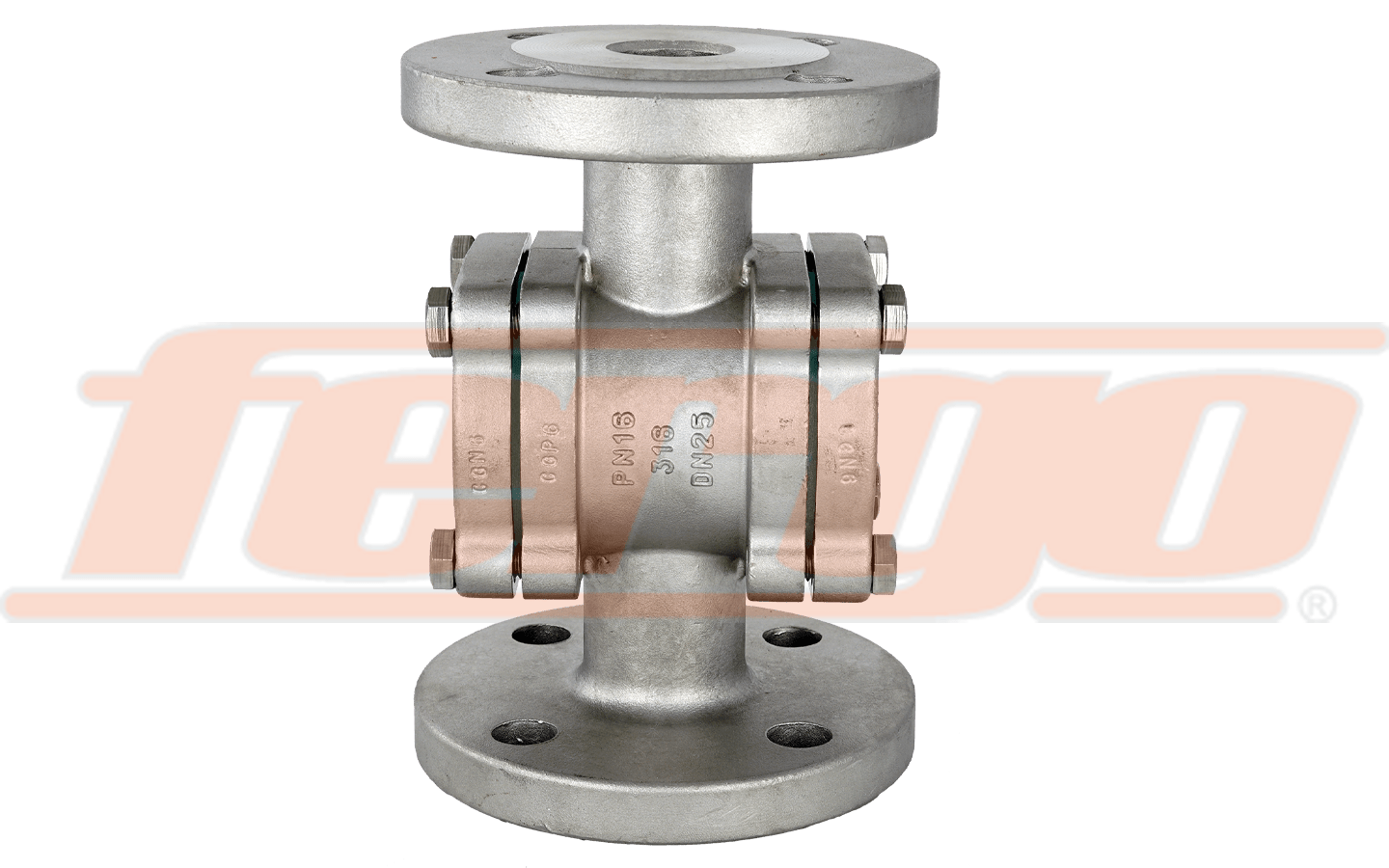

Flanged sight glass type GD100-SSTXF (Art.-Nr.: 350-1001-xx)

  • DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
  • Flanged ends acc. to DIN 2501, PN10/16
  • Face to face acc. to DIN 3202, F1
  • Body: 1.4408 (CF8M)
  • Glass: tempered soda-lime glass (DIN 8902)
  • Gasket: PTFE
  • Normal working temperature: 130°C
  • Max. temperature (short-term): 160°C
  • Thermal shock (DIN 52323): 120°C
  • Max. working pressure: 16 bar

Threaded sight glass type GD100-SSTXI (Art.-Nr.: 350-1000-xx)

  • 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
  • Thread ends F-F acc. to ISO 7-1 (EN 10226-1)
  • Body: 1.4408 (CF8M), shot blasted
  • Glass: tempered soda-lime glass (DIN 8902)
  • Gasket: PTFE
  • Normal working temperature: 130°C
  • Max. temperature (short-term): 160°C
  • Thermal shock (DIN 52323): 120°C
  • Max. working pressure: 16 bar

Type

Sightglass

Sizes

DN15, DN20, DN25, DN32, DN40, DN50, 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Flange connection

PN10, PN16

Body material

1.4408

Pressure range

PN16, PN10

Sealing

PTFE

Connection

Flanges

Threads

DIN 2999, ISO 7/1
