Switchmaster

Die Endschalterbox für höhste Qualitätsansprüche

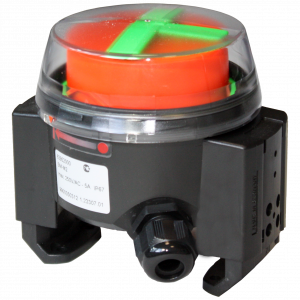

Switchmaster limit switch

The Switchmaster is the limit switch box for high demands. The box is available in many different configurations, including for use in various ATEX zones. Thanks to its unique design, the position of the valve is visible from a distance.

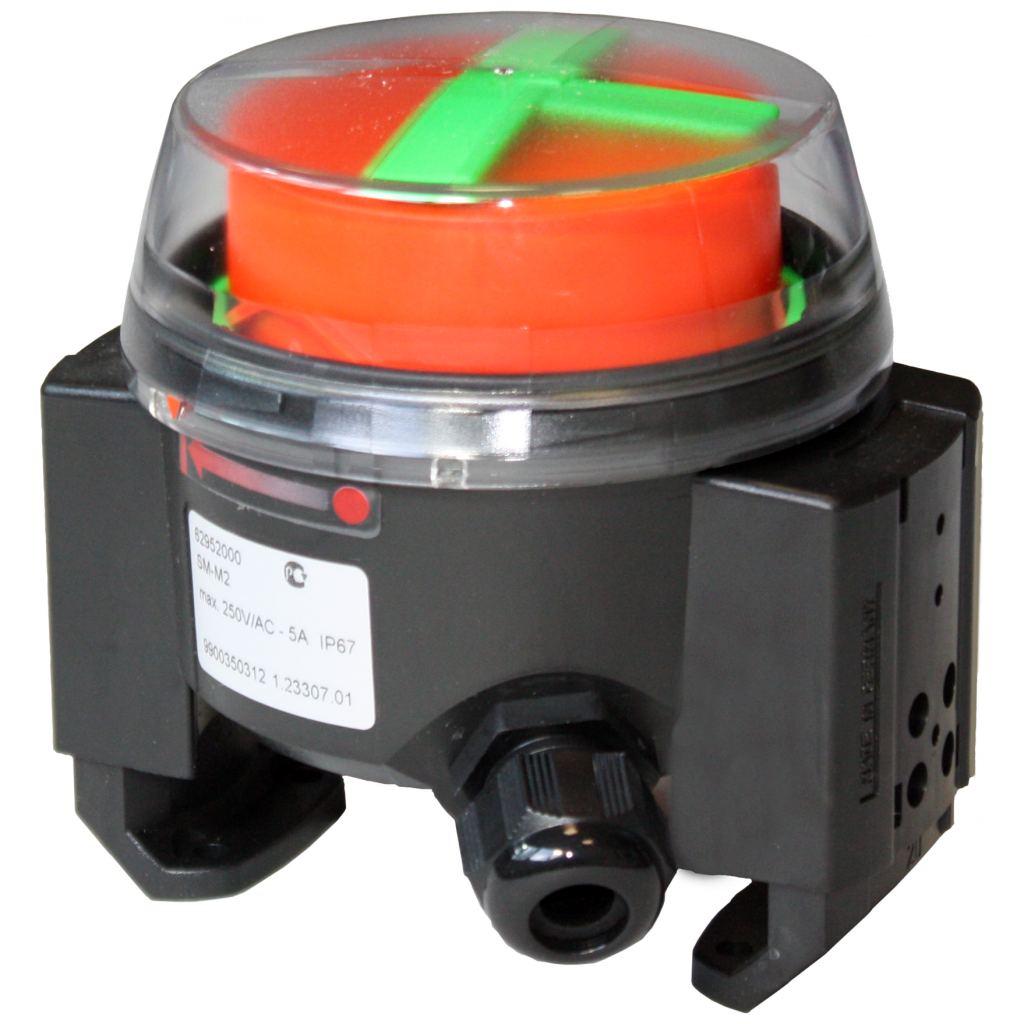

Switchmaster-M2 (Item no.: 710-1050)

  • microswitch OPEN/CLOSE
  • 0…90° swivel angle
  • Switching function: changeover
  • Contacts: gold-plated
  • Rated switching capacity: 0.1 to 5A at 250 VAC
  • Minimum switching capacity: 1 mA at 4 VDC
  • Housing: Bayblend T45 (ABS + PC), antistatic coated
  • Lid: Lexan 143 R (PC)
  • Protection class: IP67
  • Temperature range: -20°C to +70°C

Switchmaster-D2 (Item no.: 710-1051)

  • Inductive sensor OPEN/CLOSE
  • 0…90° swivel angle
  • Switching function: Plus switching, PNP normally open, damped or undamped in end position
  • Voltage range: 10 – 30V/DC
  • Operating current: 100 mA
  • Housing: Bayblend T45 (ABS + PC), antistatic coated
  • Lid: Lexan 143 R (PC)
  • Protection class: IP67
  • Temperature range: -20°C to +70°C

Switchmaster-N2 (Item no.: 710-1052)

  • Inductive sensor OPEN/CLOSE, Namur EN 60947-5-6
  • 0…90° swivel angle
  • Explosion-proof Ex ia IIB T6
  • Nominal voltage: 8 V/DC, max. 16V/DC
  • Output current: damped <1 mA, undamped >3 mA
  • Switching function: damped or undamped in end position
  • Switching capacity: max. 34 mW
  • Housing: Bayblend T45 (ABS + PC), antistatic coated
  • Lid: Lexan 143 R (PC), antistatic coated
  • Protection class: IP67
  • Temperature range: -20°C to +70°C
  • ATEX marking: II 2 G Ex ia IIB T6
