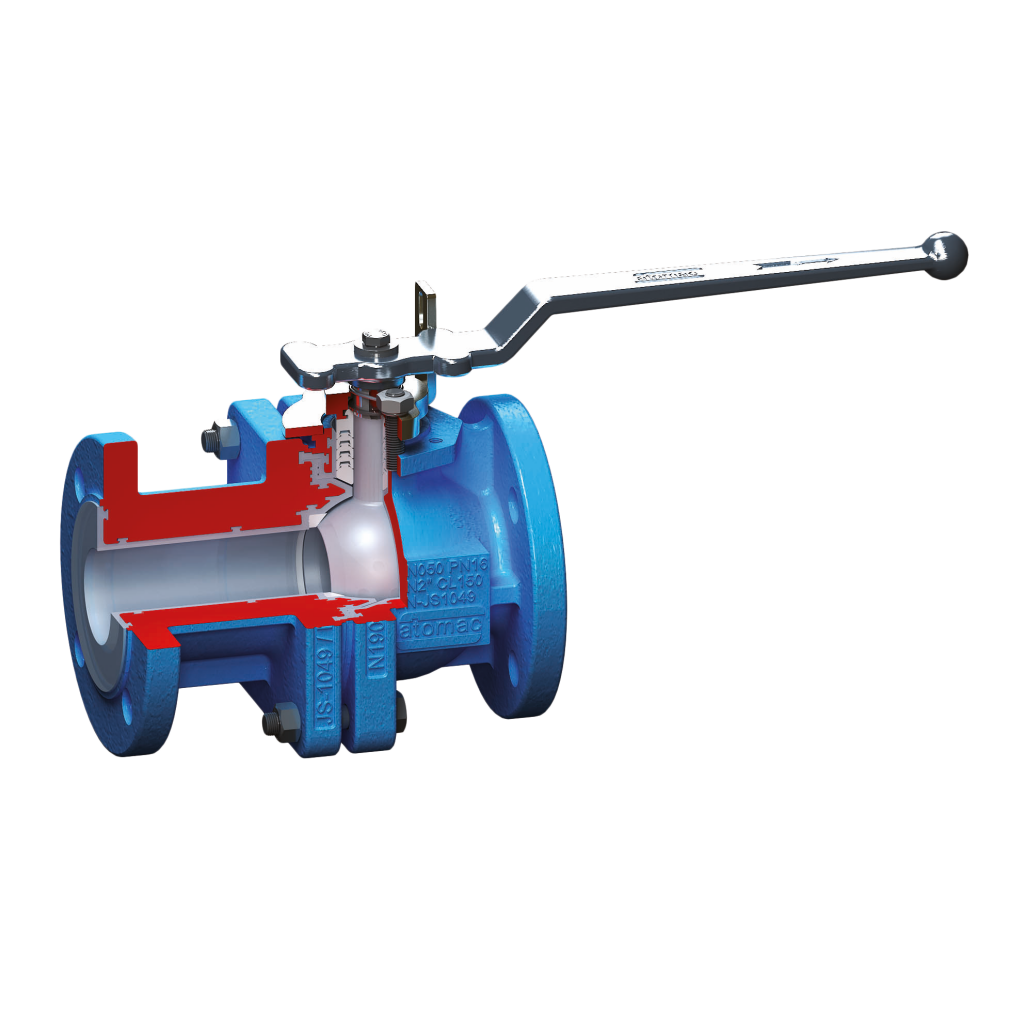

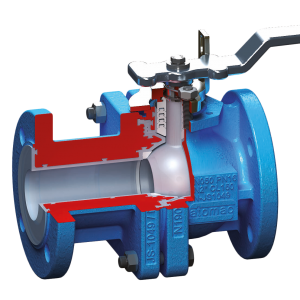

AKH8

PFA lined monoblock ball valve

With this valve FLOWSERVE compliments the extensive Atomac ball valve range. Compared to a floating ball design, the ATOMAC AKH8 offers a one piece ball and stem unit. Through this connection between the ball and stem the use in sticky, adhesive and highly viscous fluid applications is improved, particularly in high cycling requirements as the stem drive connection into the ball slot in floating ball design valves may deteriorate.

The excellent construction and design of the static and dynamic body joint sealing of our ATOMAC AKH2.2 with the metal of metal connection is also integrated in this new monoblock ball valve. Through this, piping vibrations as well as thermal cycling cannot negative effect the valve torque or the body seal.

Type

Ball Valve

Operations

Electric Actuator, Pneumatic double-acting, Pneumatic single-acting, Lever, Topflange (ISO 5211), Gearbox with Handwheel

Sizes

DN15, DN20, DN25, DN40, DN50, DN80, DN100

Flange connection

PN10, PN16

Face-to-face

DIN EN 558-1

Body material

GGG40+PFA, GGG40+FEP

Packing gland

PTFE, PTFE+Graphite

Pressure range

PN16

Ball material

PFA coated, FEP coated

Ball seat

PTFE

Lining/Coating

PFA, FEP

Connection

Flanges
