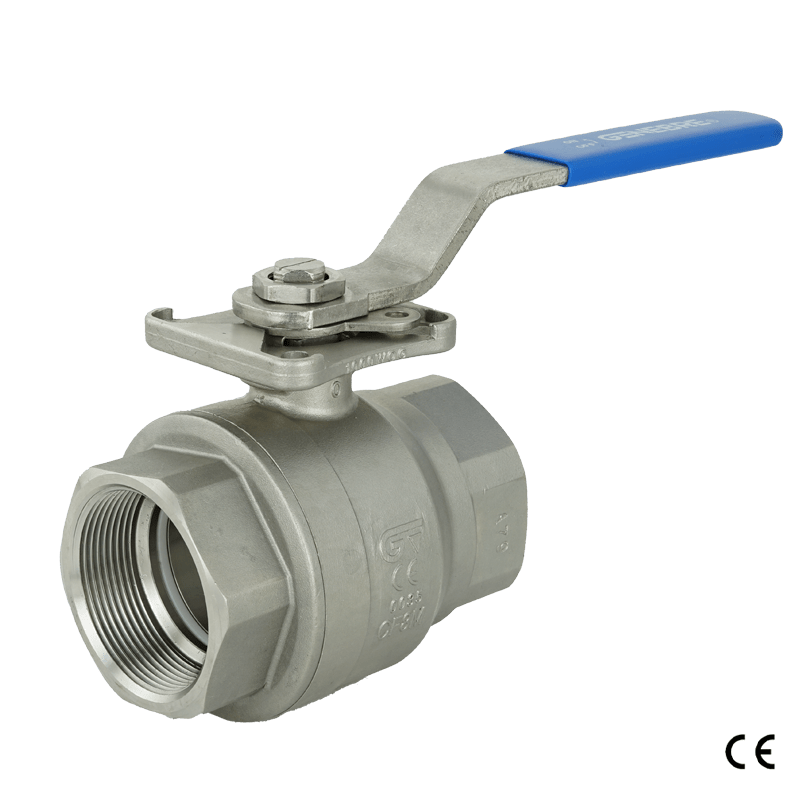

Stainless steel threaded ball valve type KH113

Stainless steel ball valve with ISO 5211 top flange for actuators

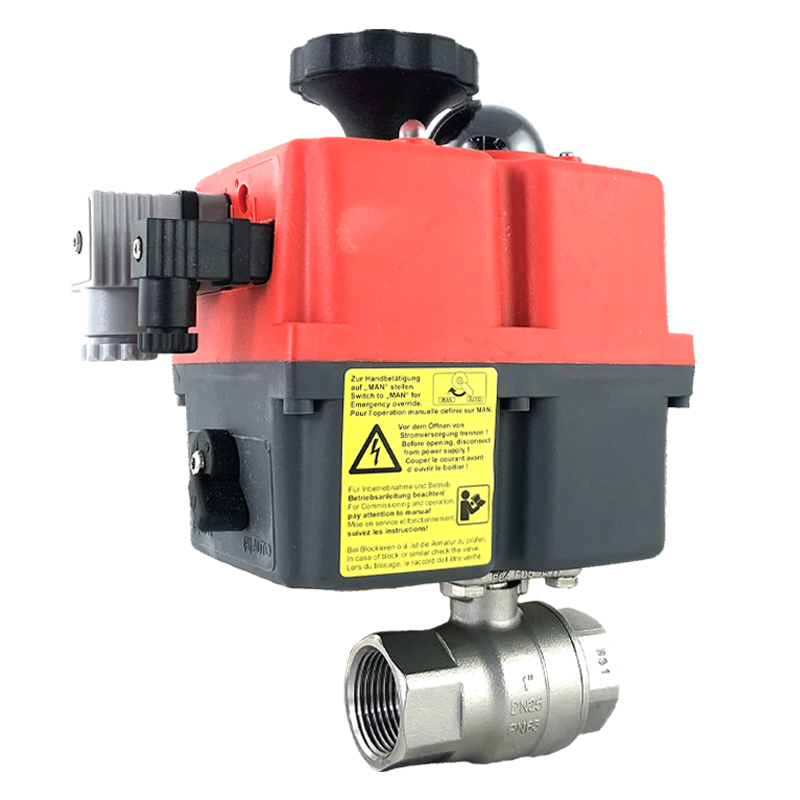

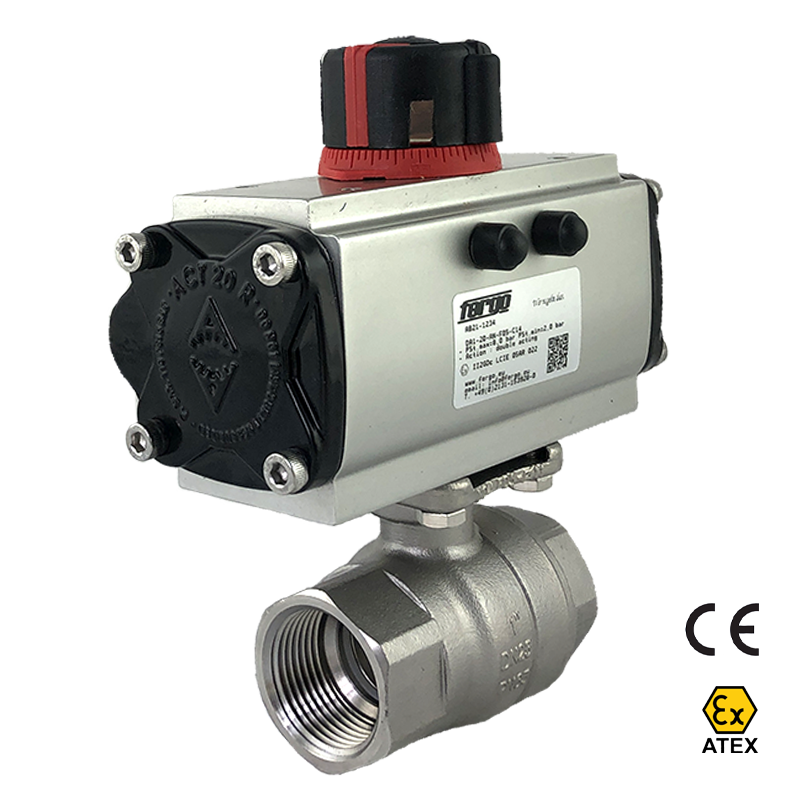

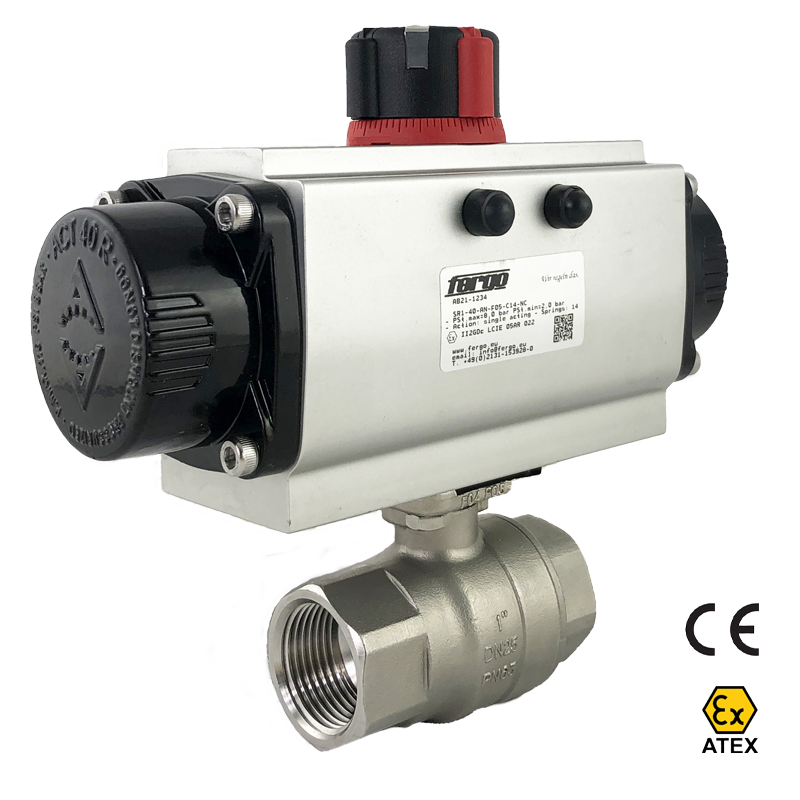

Stainless steel electric & pneumatic ball valve

FERGO Armaturen GmbH has a wide variety of different ball valves. These ball valves mainly differ in connection form, body material, maximum pressure approval and the available certificates (TA Luft, FireSafe, DVGW Gas, DVGW Trinkwasser). You can choose between flange-connection (DIN or ANSI), threaded ends (DIN or ANSI and female or male thread) and socket weld or butt weld ends. The available standard body materials are brass, steel and stainless steel. Special materials like e.g. titan and duplex are also available on request. Ball valves with ISO-top mounting flange (ISO 5211) can be automated with pneumatic or electric actuators. The different sizes, pressure stages and materials are shown on the datasheet, which can be downloaded on our website. For special executions please contact our sales department.

Ball valve type: KH113-SSTHI (Art.-Nr.: 100-1020-xx)

  • 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
  • Threaded ends F-F acc. to ISO 7-1 (EN 10226-1)
  • Full port
  • 2-piece body
  • Blow-out proof stem
  • Body: SS316 (1.4408)
  • Ball / Stem: SS316 (1.4408)
  • Ball seat: PTFE + 15% G.F.
  • Temp. (min./max.): -25°C to +180°C
  • Max. pressure: 63bar
  • Direct mounting actuator ISO 5211
  • Locking system
  • Operation: handlever

Type

Ball Valve

Operations

Electric Actuator, Pneumatic double-acting, Pneumatic single-acting, Lever, Topflange (ISO 5211)

Sizes

1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Body material

1.4408

Pressure range

PN63

Ball material

1.4408

Ball seat

PTFE+Glasfibre

Connection

F/F

Threads

DIN 2999, ISO 7/1
