Lug-type butterfly valve in stainless steel DVGW Gas type AK211G

Stainless steel butterfly valve with DVGW gas - DIN EN 13774

Lug-type butterfly valve in stainless steel: DVGW gas approval

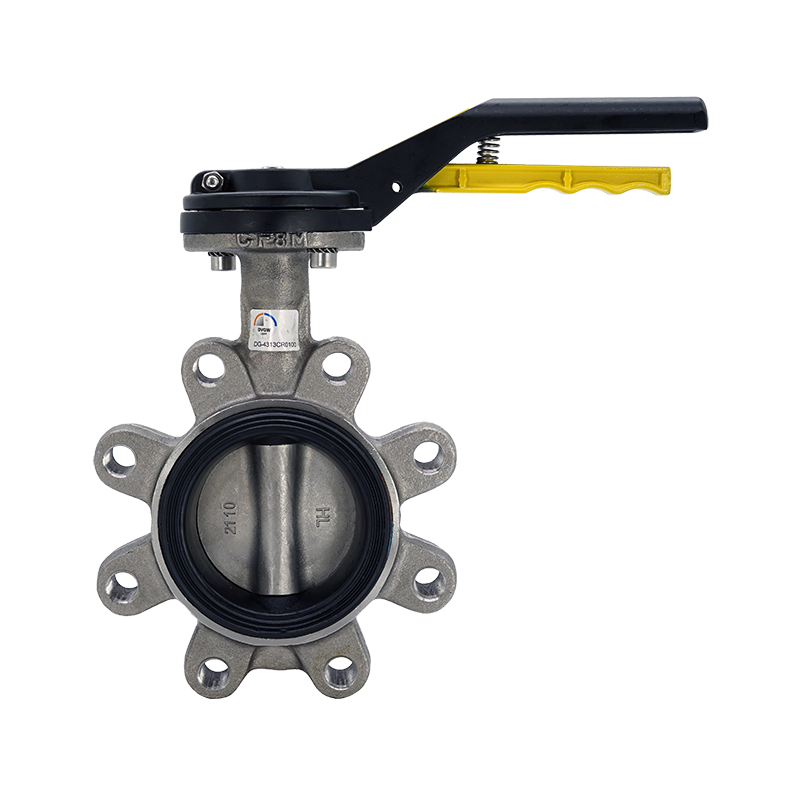

The AK211G stainless steel lug type butterfly valve designed for gas applications stands out for its impressive performance, durability, and top-notch safety features. Its concentric and flanged design makes it an ideal choice for installation between flanges to PN10/16 (DIN) and/or Class150 (ASME). Typically, these gas butterfly valves come with a user-friendly hand lever made from either aluminum or ductile iron. In addition, they can also be automated with pneumatic or electric actuators, thanks to the adaptable ISO 5211 top flange, catering to the specific needs of your application. With DVGW gas approval in accordance with DIN EN 13774, this butterfly valve meets essential industry standards, ensuring maximum safety and reliability for both natural gas supply and industrial gas systems.

Stainless steel butterfly valve with DVGW gas from FERGO

Butterfly valve connection flange DIN PN10/16 Type AK211G-SSNLL (Art.-Nr.: 150-1635-xx, 150-1655-xx) DN50, DN65, DN80, DN100, DN125, DN150, DN200

  • LUG type for mounting between flanges PN10/16
  • Top flange to ISO 5211
  • Tight-closing
  • Concentric design
  • Body: CF8M (1.4408)
  • Disc: CF8M (1.4408)
  • Shaft: AISI 316
  • Seat: NBR (DVGW)
  • Temp. (min./max.): -10°C bis +90°C
  • Actuation: Hand lever, gearbox, pneumatic & electric actuator
  • Accessories & options: Limit switch box, solenoid valve, positioner, spindle extension
  • DVGW GAS approval in accordance with DIN EN 13774

Butterfly valve connection flange ANSI Class150 Type AK211G-SSNLL (Art.-Nr.: 150-1657-xx) DN50, DN65, DN80, DN100, DN125, DN150, DN200

  • LUG type for mounting between flanges ASME Class150
  • Top flange to ISO 5211
  • Tight-closing
  • Concentric design
  • Body: CF8M (1.4408)
  • Disc: CF8M (1.4408)
  • Shaft: AISI 316
  • Seat: NBR (DVGW)
  • Temp. (min./max.): -10°C bis +90°C
  • Actuation: Hand lever, gearbox, pneumatic & electric actuator
  • Accessories & options: Limit switch box, solenoid valve, positioner, spindle extension
  • DVGW GAS approval in accordance with DIN EN 13774

Other variants and customised requirements are available on request.

Product

Lug type butterfly valve DVGW Gas

Nominal sizes

DN50, DN65, DN80, DN100, DN125, DN150, DN200

Flange connection

PN10, PN16, ANSI Class150

Face-to-face length

DIN EN 558-1 Series 20

Body

CF8M (1.4408)

Disc

CF8M (1.4408)

Shaft

AISI 316

Seat

NBR (DVGW)

Temperature (min./max.)

-10°C upto +90°C

Nominal pressure

PN10, PN16

Approval

DVGW GAS acc. to DIN EN 13774

Operation

Electric motor, Pneumatic double-acting, Pneumatic single-acting, Hand lever, Mounting flange (ISO 5211), Gearbox with handwheel
