Disco Check Valve Typ RV108

Disco Check Valve Stainless Steel

The RV108 is also called a disco-check valve. The valve disc is connected with a spring, so that the RV108 closes automatically even at low-pressure rates or return flow, therefore an outlet flow is avoided. Disco-check valves are particularly suitable for clean liquids and gases. The RV108 is available in many material combinations and can be designed for the respective application. Please see our datasheet for detailed information. We offer check valves in a wide selection of various materials and designs. Please get in touch with our sales department to be advised on this issue comprehensively and freely.

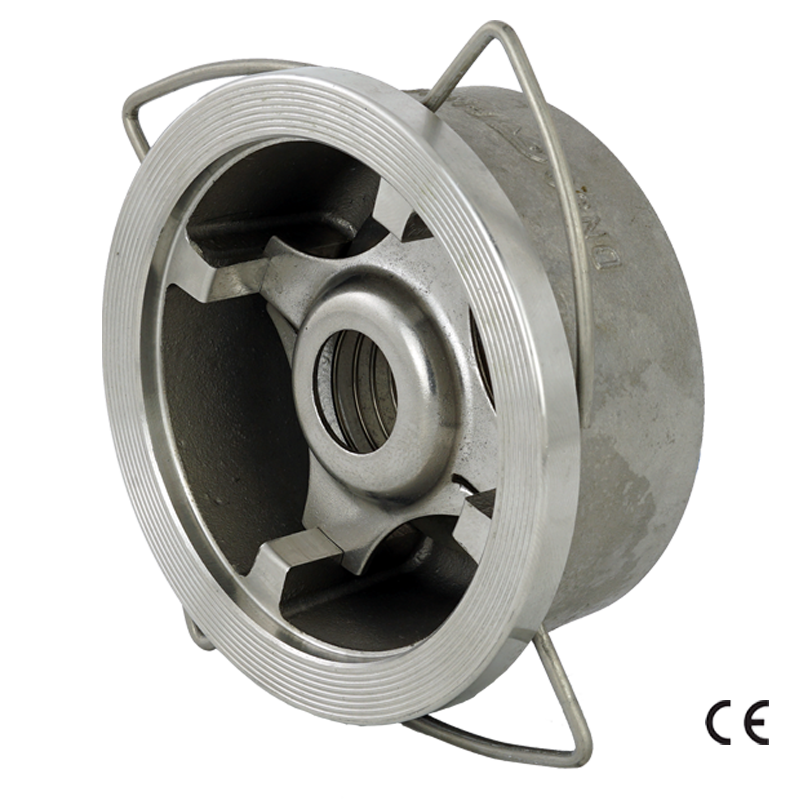

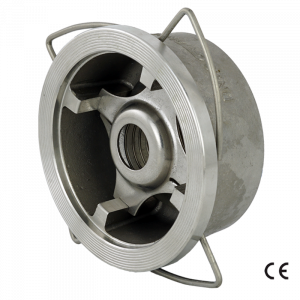

Disco check valve type RV108-SSMFW (Art.-Nr.: 300-1001-xx)

• DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200
• Body: CF8M (SS316)
• Disc: CF8M (SS316)
• Spring: SS316
• Seat: metal to metal
• Mounting between flanges PN16/40, ANSI150
• Face to face acc. EN 558-1, row 49
• Max. working pressure: 40 bar (25 bar DN100 and above)
• Temperature range: -20°C to +200°C

Download “Check Valve RV108”
