DVGW-certified ball valves for drinking water : Electric & pneumatic
The supply and transportation of drinking water requires the selection of specific components for the pipeline. For this purpose, the German Technical and Scientific Association for Gas and Water (DVGW) certifies the components according to strict guidelines. The selection of a DVGW-certified ball valve for drinking water therefore not only guarantees reliability, but also safety for people.

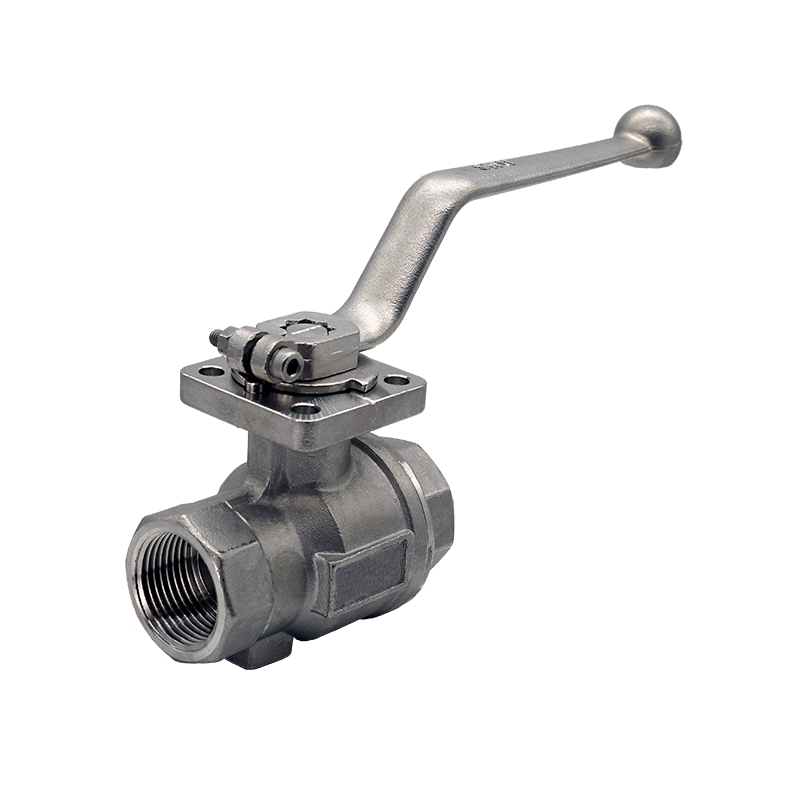

Our drinking water ball valve type KH124W is a 2-way ball valve with full bore. Since it is made of stainless steel, this shut-off ball valve prevents the water from being contaminated by corrosion-related impurities. The valve has a female threaded connection in accordance with DIN EN 10226-1 (ISO 7/1). Depending on the operating pressure, the valve can be used for medium temperatures of 0 °C – +90 °C.

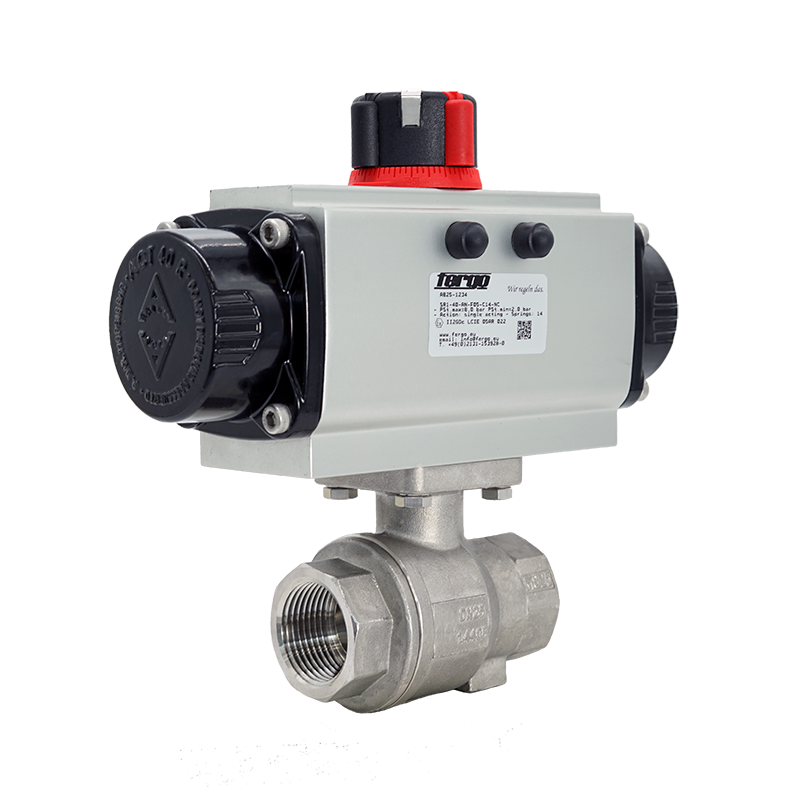

Compared to our type KH112, this ball valve has an ISO5211 direct-mount design, which allows the actuator to be mounted directly. In addition to the standard actuation via a hand lever, Fergo also supplies these drinking water ball valves with electric and pneumatic actuators, completely ready for installation! We also supply accessories such as pneumatic solenoid valves (24V & 230V), limit switch boxes, positioners, stem extensions and much more.
The type KH124W has DVGW drinking water approval PN10 in accordance with EN 13828 W570-1, TA-Luft approval, fire-safe design & silicone-free. Whether for buildings or industrial applications – our drinking water ball valve is the ideal choice for reliably shutting off drinking water/water.
Ball valve KH124W, (Product number: 100-1076-xx): 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
- Design: 2-way • Full bore • 2-piece body
- Threaded ends acc. to DIN EN 10226-1 (ISO 7/1), Rp
- Body / Ball: 1.4408
- Stem: 1.4401
- Ball seat: PTFE
- Shaft seal: PTFE spring-loaded
- Temperature range: 0°C…+90°C (depending on working pressure)
- Max. working pressure: 10 bar
- Direct mounting acc. to DIN ISO 5211
- DVGW drinking water approval PN10 acc. to DIN EN 13828 W570-1
- TA Luft approval acc. to DIN EN ISO 15848
- Operation: Hand lever, electric actuator, pneumatic actuator, gearbox
- Accessories & options: Pneumatic solenoid valve, limit switch box, positioner, stem extension
Product type
Ball valve
Size
1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
Body/Ball
1.4408
Seat
PTFE
Nominal pressure
PN10
Connection
Internal threads Rp according to DIN EN 10226-1 (ISO 7/1)
Actuation
Electric actuator, pneumatic double-acting, pneumatic single-acting, hand-lever, gearbox
