KH112

Stainless steel ball valve with DVGW for drinking water

FERGO Armaturen GmbH has a wide variety of different ball valves. These ball valves mainly differ in connection form, body material, maximum pressure approval and the available certificates (TA Luft, FireSafe, DVGW Gas, DVGW Trinkwasser). You can choose between flange-connection (DIN or ANSI), threaded ends (DIN or ANSI and female or male thread) and socket weld or butt weld ends. The available standard body materials are brass, steel and stainless steel. Special materials like e.g. titan and duplex are also available on request. Ball valves with ISO-top mounting flange (ISO 5211) can be automated with pneumatic or electric actuators. The different sizes, pressure stages and materials are shown on the datasheet, which can be downloaded on our website. For special executions please contact our sales department.

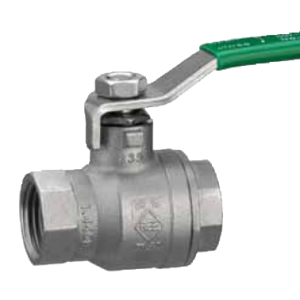

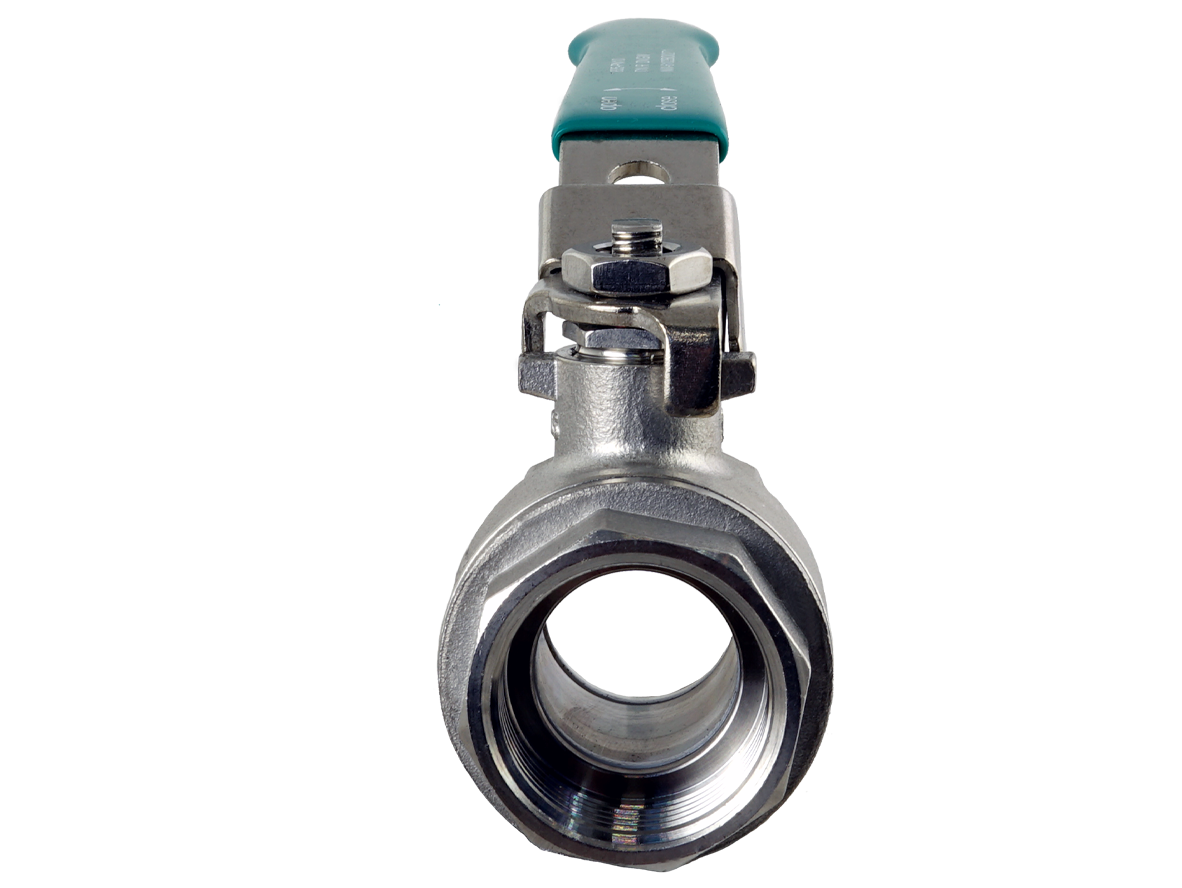

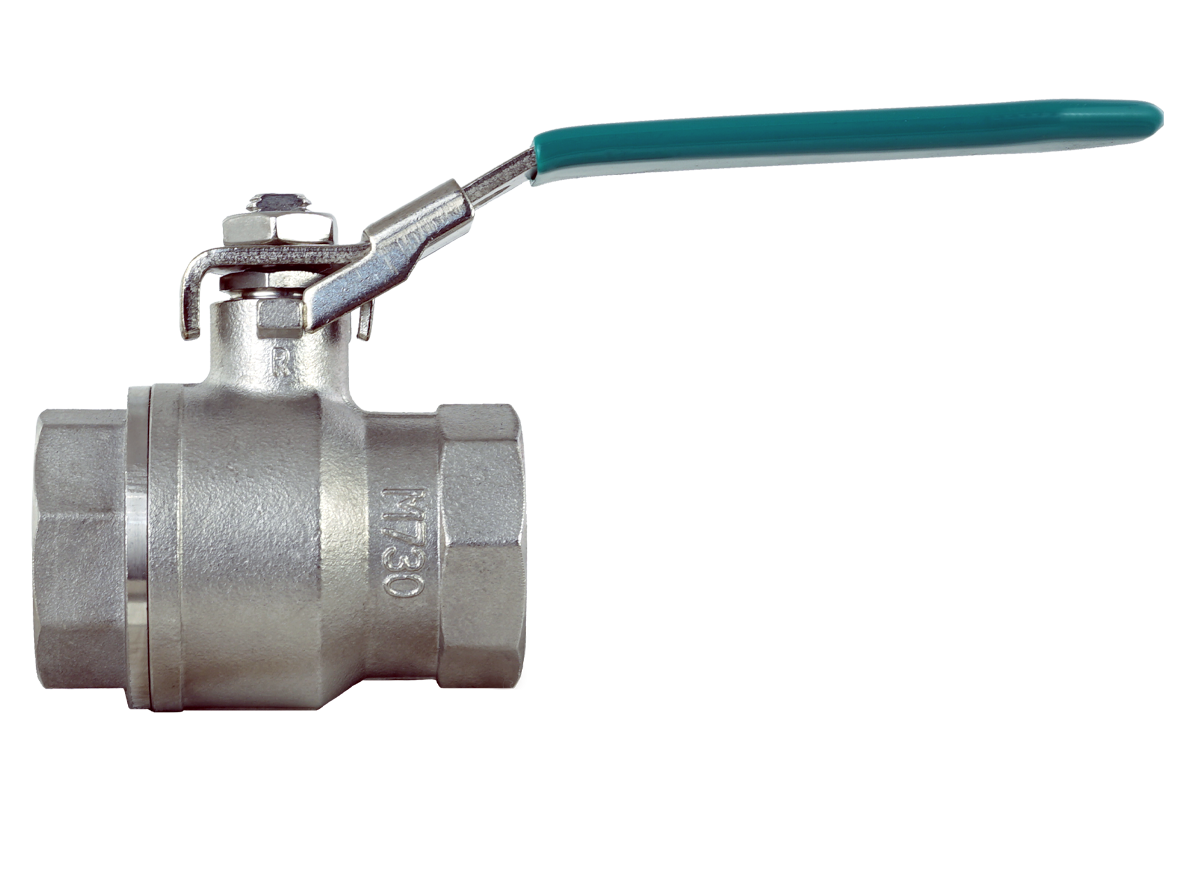

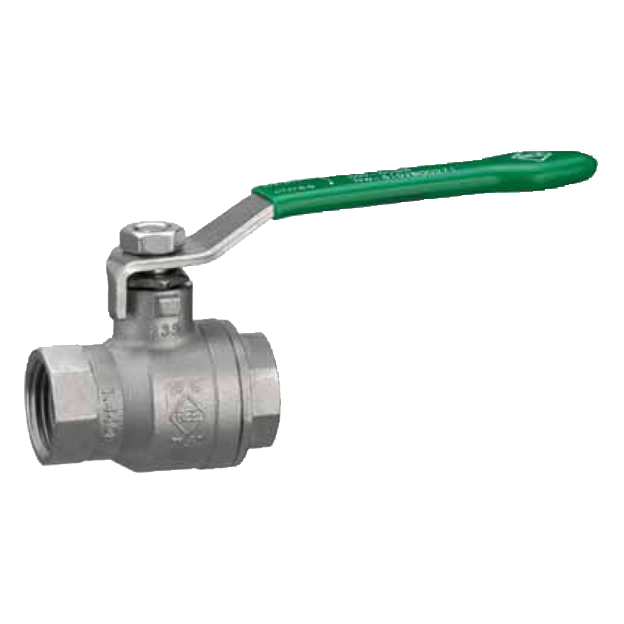

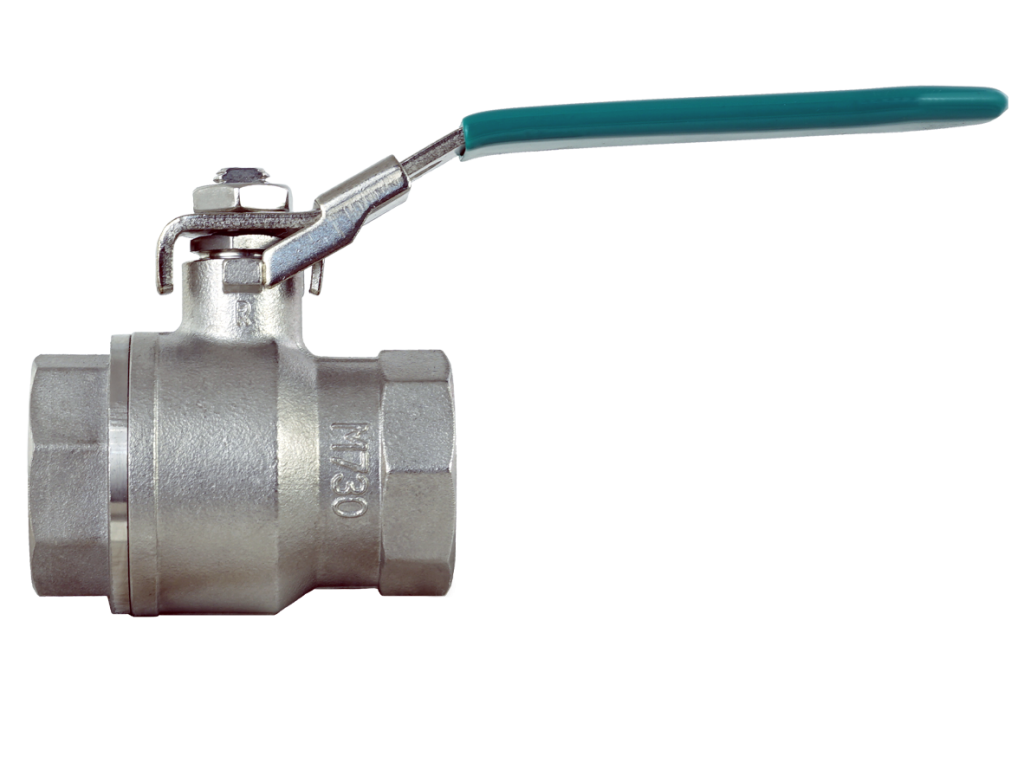

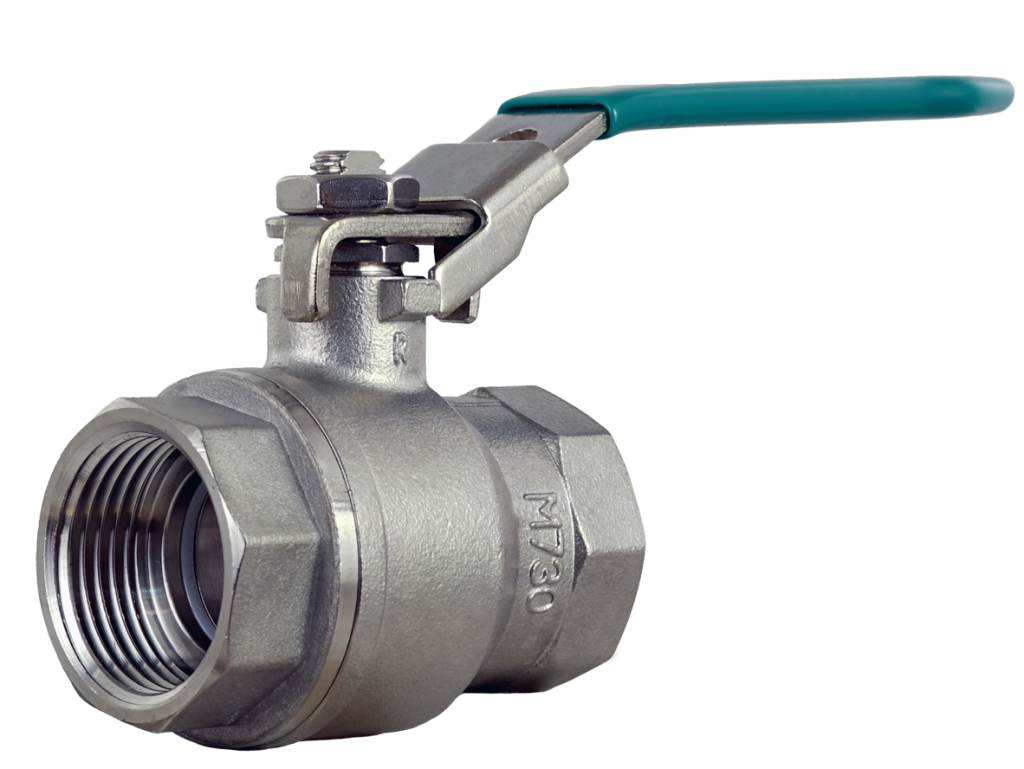

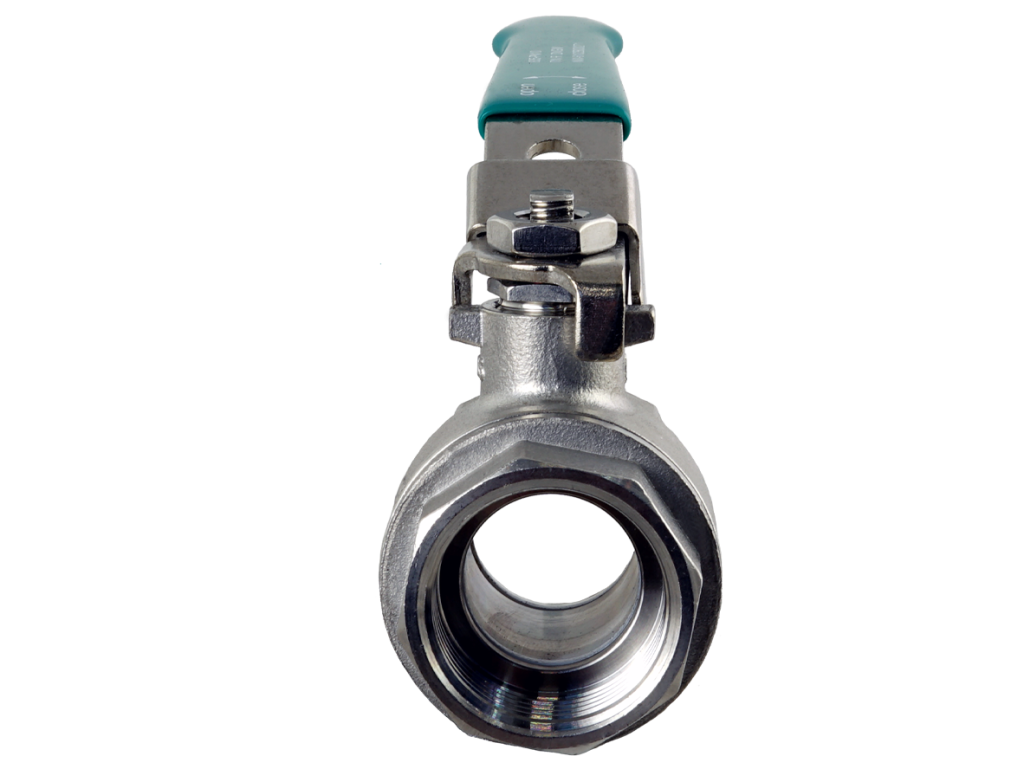

Ball valve KH112-SSTHI (Art.-Nr.: 100-1019-xx)

  • 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
  • Design: 2-way
  • Connection: threaded ISO 228/1 F/F
  • Design acc. to DVGW for drinking water DIN EN 13828, PN10
  • Full bore
  • 2-piece body
  • Body: 1.4408
  • Ball: 1.4408
  • Ball seat: PTFE
  • Stem seal: PTFE
  • Medium-Temp. (min./max.): -20°C to +180°C
  • Operation: Handlever

Type

Ball Valve

Operations

Lever

Sizes

3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 1/8"

Body material

1.4408

Pressure range

PN40, PN25

Ball material

1.4408

Ball seat

PTFE

Connection

F/F

Threads

ISO 228

Certifications

DVGW for drinking water
