Threaded Ends Ball Valves KH101

FERGO Armaturen GmbH has a wide variety of different ball valves. These ball valves mainly differ in connection form, body material, maximum pressure approval and the available certificates (TA Luft, FireSafe, DVGW Gas, DVGW Trinkwasser). You can choose between flange-connection (DIN or ANSI), threaded ends (DIN or ANSI and female or male thread) and socket weld or butt weld ends. The available standard body materials are brass, steel and stainless steel. Special materials like e.g. titan and duplex are also available on request. Ball valves with ISO-top mounting flange (ISO 5211) can be automated with pneumatic or electric actuators. The different sizes, pressure stages and materials are shown on the datasheet, which can be downloaded on our website. For special executions please contact our sales department.

Ball valve KH101-MMTLI (Art.-Nr.: 100-1004-xx)
• 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
• Design: 2-way
• Female threaded ends ISO 7/1 Rp (F-F)
• Design: EN331 approved, as per DVGW for gases PN1-5 (MOP 5)
• Full bore
• Body: brass, nickel-plated
• Ball: brass, chrome-plated
• Ball seat: PTFE
• O-rings: Viton/NBR
• Operation: lever handle

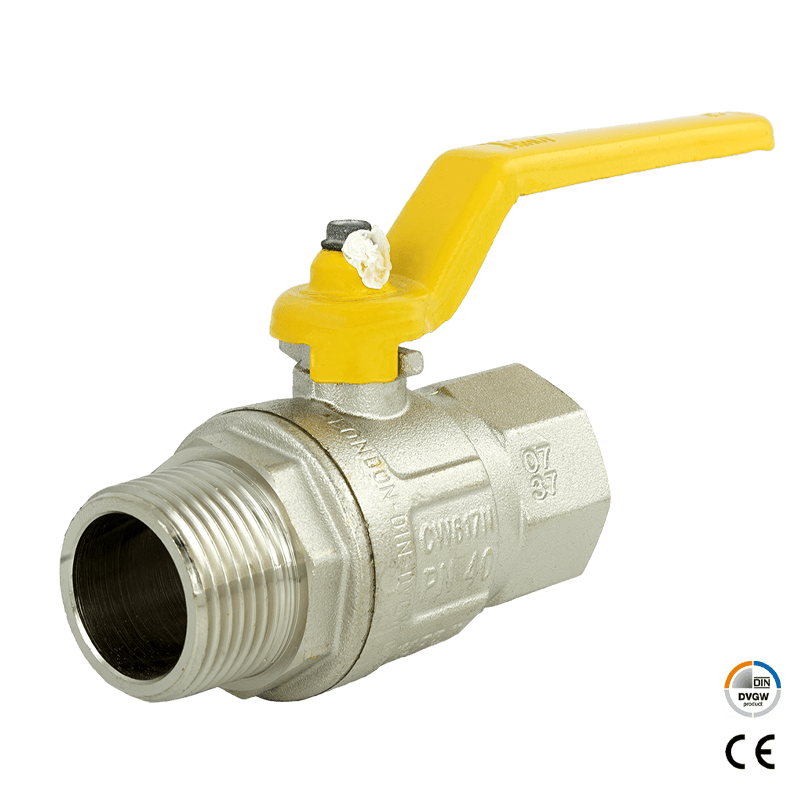

Ball valve KH101-MMTLZ (Art.-Nr.: 100-1005-xx)
• 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
• Design: 2-way
• Male threaded ISO 7/1 R – Female thread ISO 7/1 Rp (M-F)
• Design: EN331 approved, as per DVGW for gases PN1-5 (MOP 5)
• Full bore
• Body: brass, nickel-plated
• Ball: brass, chrome-plated
• Ball seat: PTFE
• O-rings: Viton/NBR
• Operation: lever handle

Ball valve KH101-MMTLZ (Art.-Nr.: 100-1006-xx)
• 1/4″, 3/8″, 1/2″, 3/4″, 1″
• Design: 2-way
• Female threaded ends ISO 7/1 Rp (F-F)
• Design: EN331 approved, as per DVGW for gases PN1-5 (MOP 5)
• Full bore
• Body: brass, nickel-plated
• Ball: brass, chrome-plated
• Ball seat: PTFE
• O-rings: Viton/NBR
• Operation: T-handle

Ball valve KH101-MMTTZ (Art.-Nr.: 100-1007-xx)
• 1/4″, 3/8″, 1/2″, 3/4″, 1″
• Design: 2-way
• Male threaded ISO 7/1 R – Female thread ISO 7/1 Rp (M-F)
• Design: EN331 approved, as per DVGW for gases PN1-5 (MOP 5)
• Full bore
• Body: brass, nickel-plated
• Ball: brass, chrome-plated
• Ball seat: PTFE
• O-rings: Viton/NBR
• Operation: T-handle

Type

Ball Valve

Operations

Lever, Butterfly Handle

Sizes

1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Body material

Brass

Pressure range

PN40

Ball material

Brass

Ball seat

PTFE

Connection

F/F, M/F

Threads

DIN EN 10226-1

Certifications

DVGW for gases
