Threaded Ends VG100

Our globe valves VG100 are manual valves for shutting off the flow of media. They are characterized by high tightness. Their goal is the compact design. These valves are suitable for the use in heating applications, especially hot water pipes. The wide range of offered diameters allows the use of these valves from the smallest flow rates to the largest volume flows in main lines. The valves are suitable for shutting off water, air and other neutral media, which is compatible with the material of the valve. These VG100 globe valves can be installed in any position. The direction of flow is defined by the arrows on the body.

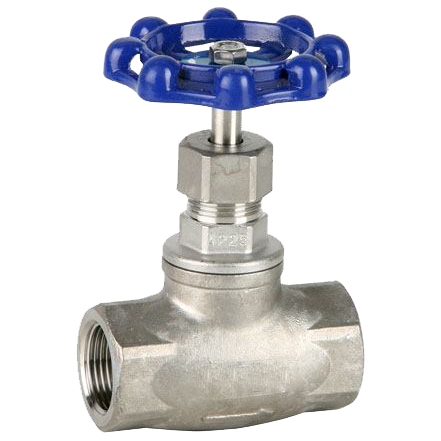

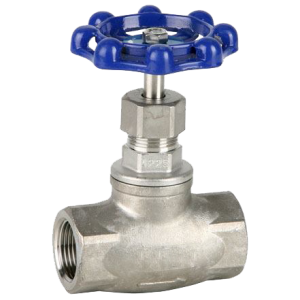

Globe valve type VG100-SSTNI (Art.-Nr.: 200-1000-xx)
• 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
• Thread ends F-F acc. to ISO 7-1 (EN 10226-1)
• Body: 1.4408 (CF8M)
• Disc: 1.4408 (CF8M)
• Stem packing: PTFE
• Working temperature: max. +180°C at 10bar
• Max. working pressure: 16 bar
• Operation: handwheel, non rising stem
