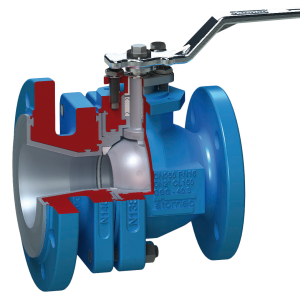

Flanged Ball Valves AKH6
The ATOMAC AKH6 is originally designed to serve as a tank drain valve, but it also can be installed in place of re ducing spools to downsize piping dimensions. There is a wide range of various dimensions available with flange connections per DIN PN16 as well ANSI 150Lbs.
Furthermore the AKH6 from FLOWSERVE has the same characteristics as former mentioned lined ball valves included high corrosion resistant liners either FEP or PFA, full ports, anti blow-out stem, anti-static design, actuator mounting flanges according DIN EN ISO 5211 and a long term protection against external leakage to the atmosphere. All internal components and spare parts are interchangeable with the components of the atomac ball valve AKH2.
Electric Actuator, Pneumatic double-acting, Pneumatic single-acting, Lever, Topflange (ISO 5211), Gearbox with Handwheel
PN10, ANSI 150, PN16
PFA coated, FEP coated, Ceramic
