Flanged Ball Valves AMP3

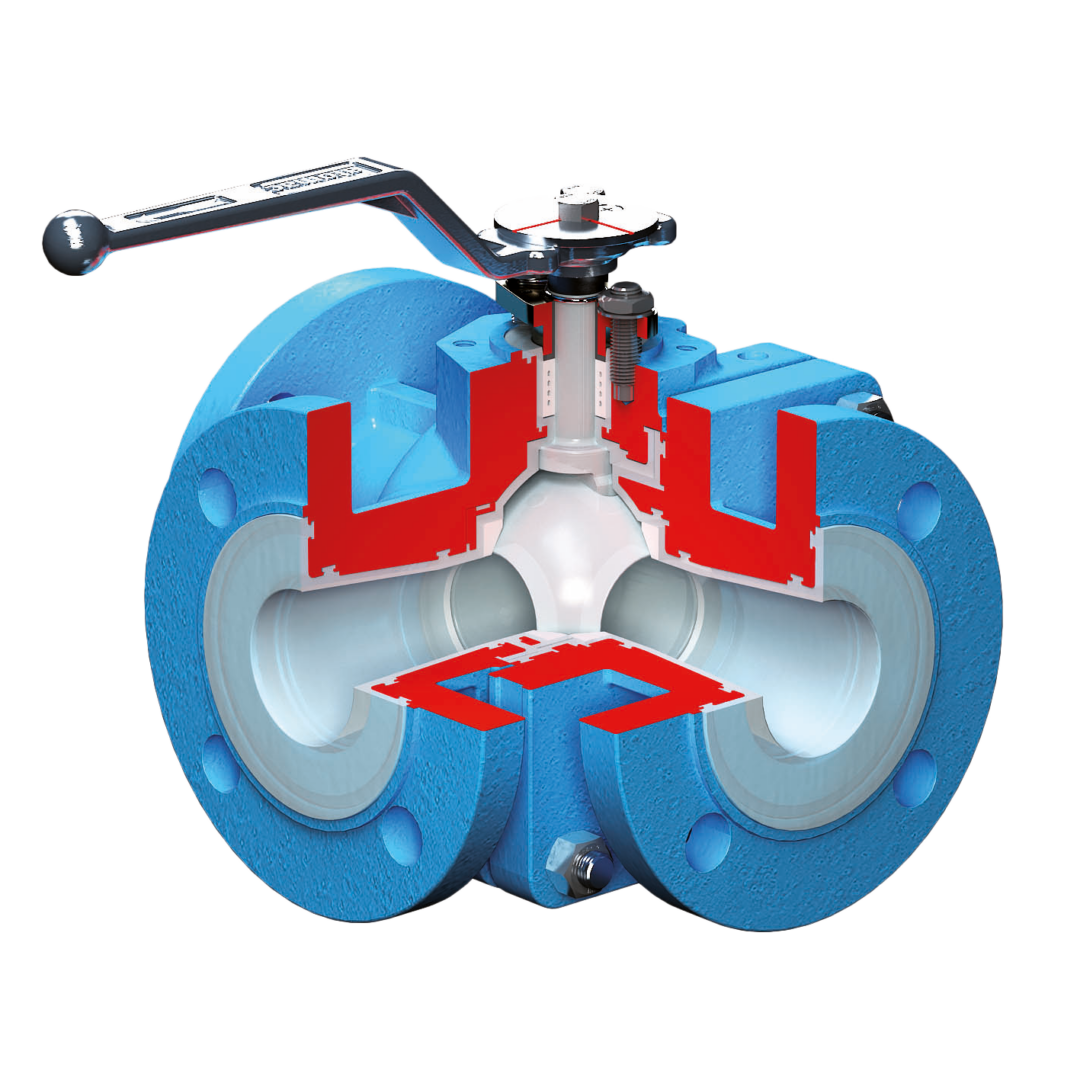

The ATOMAC AMP3 3-way ball valve is the best choice for corrosive diverter valve applications and available at lower cost than alloy valves with equal or superior corrosion resistance in difficult services. The compact design permits use where space constraints are a concern. The 3-way ball valve design offers a high flow capacity with minimal pressure loss through the valve.

The AMP3 from FLOWSERVE is available with an L-ball or T-ball configuration to offer a wide variety of flow patterns for 90° or 180° rotations. Optional: PFA-conductive liner material.

3-way ball valve AMP3L, PN16 (Art.-Nr.: 101-1010-xx)
• DN25, DN40, DN50, DN80, DN100
• PFA lined 3-way ball valve
• L-Ball (switch symbols see datasheet AMP3)
• Max. operating temperature: +200°C
• Face to face acc. to EN 558, Row 1
• Flanged acc. to DIN EN 1092-2, PN16
• Body: ductile iron EN-JS 1049 (GGG40.3) / PFA lined
• Ball: cast steel 1.0619 / PFA coated
• Stem: stainless steel duplex 1.4470 / PFA coated
• Seat rings / packing: PTFE
• Bolting: A2-70
• Operation: hand lever
• TA Luft approval

3-way ball valve AMP3L, PFA-conductive, PN16 (Art.-Nr.: 101-1011-xx)
• DN25, DN50, DN80, DN100
• PFA-conductive lined 3-way ball valve
• L-Ball (switch symbols see datasheet AMP3)
• Max. operating temperature: +200°C
• Face to face acc. to EN 558, Row 1
• Flanged acc. to DIN EN 1092-2, PN16
• Body: ductile iron EN-JS 1049 (GGG40.3) / PFA-conductive lined
• Ball: cast steel 1.0619 / PFA-conductive coated
• Stem: stainless steel duplex 1.4470 / PFA-conductive coated
• Seat rings / packing: PTFE conductive
• Bolting: A2-70
• Operation: hand lever
• TA Luft approval

3-way ball valve AMP3T, PN16 (Art.-Nr.: 102-1010-xx)
• DN25, DN40, DN50, DN80, DN100
• PFA lined 3-way ball valve
• T-Ball (switch symbols see datasheet AMP3)
• Max. operating temperature: +200°C
• Face to face acc. to EN 558, Row 1
• Flanged acc. to DIN EN 1092-2, PN16
• Body: ductile iron EN-JS 1049 (GGG40.3) / PFA lined
• Ball: cast steel 1.0619 / PFA coated
• Stem: stainless steel duplex 1.4470 / PFA coated
• Seat rings / packing: PTFE
• Bolting: A2-70
• Operation: hand lever
• TA Luft approval

3-way ball valve AMP3T, PFA-conductive (Art.-Nr.: 102-1011-xx)
• DN25, DN50, DN80, DN100
• PFA-conductive lined 3-way ball valve
• T-Ball (switch symbols see datasheet AMP3)
• Max. operating temperature: +200°C
• Face to face acc. to EN 558, Row 1
• Flanged acc. to DIN EN 1092-2, PN16
• Body: ductile iron EN-JS 1049 (GGG40.3) / PFA-conductive lined
• Ball: cast steel 1.0619 / PFA-conductive coated
• Stem: stainless steel duplex 1.4470 / PFA-conductive coated
• Seat rings / packing: PTFE conductive
• Bolting: A2-70
• Operation: hand lever
• TA Luft approval

Type

Ball Valve

Operations

Electric Actuator, Pneumatic double-acting, Pneumatic single-acting, Lever, Topflange (ISO 5211), Gearbox with Handwheel

Sizes

DN25, DN40, DN50, DN80, DN100, DN150, 1", 1 1/2", 2", 3", 4", 6"

Flange connection

PN10, ANSI 150, PN16

Face-to-face

DIN EN 558 Line 1

Body material

GGG40+PFA, GGG40+FEP

Packing gland

PTFE, PTFE+Graphite

Pressure range

PN16, Class 150

Ball material

PFA coated, FEP coated

Ball seat

PTFE

Lining/Coating

PFA, FEP

Connection

Flanges
