The KH123 is a massive ball valve made of stainless steel with a flange connection, it is easily to automate and to integrate into your valve due to its ISO-top mounting flange. The KH123 has a pressure rating of PN40 at low nominal bores and an approval for PN16 at nominal bore from DN50. Furthermore it can be delivered with different sealing systems and certificates (TA Luft, DVGW, FireSafe…). We also offer special execution ball valves made of special material for extremely high system pressure and high temperature. The different sizes, pressure stages and materials are shown on the datasheet, which can be downloaded on our website. Feel free to contact our sales department and we will advise you and create an offer, which of course is not binding.

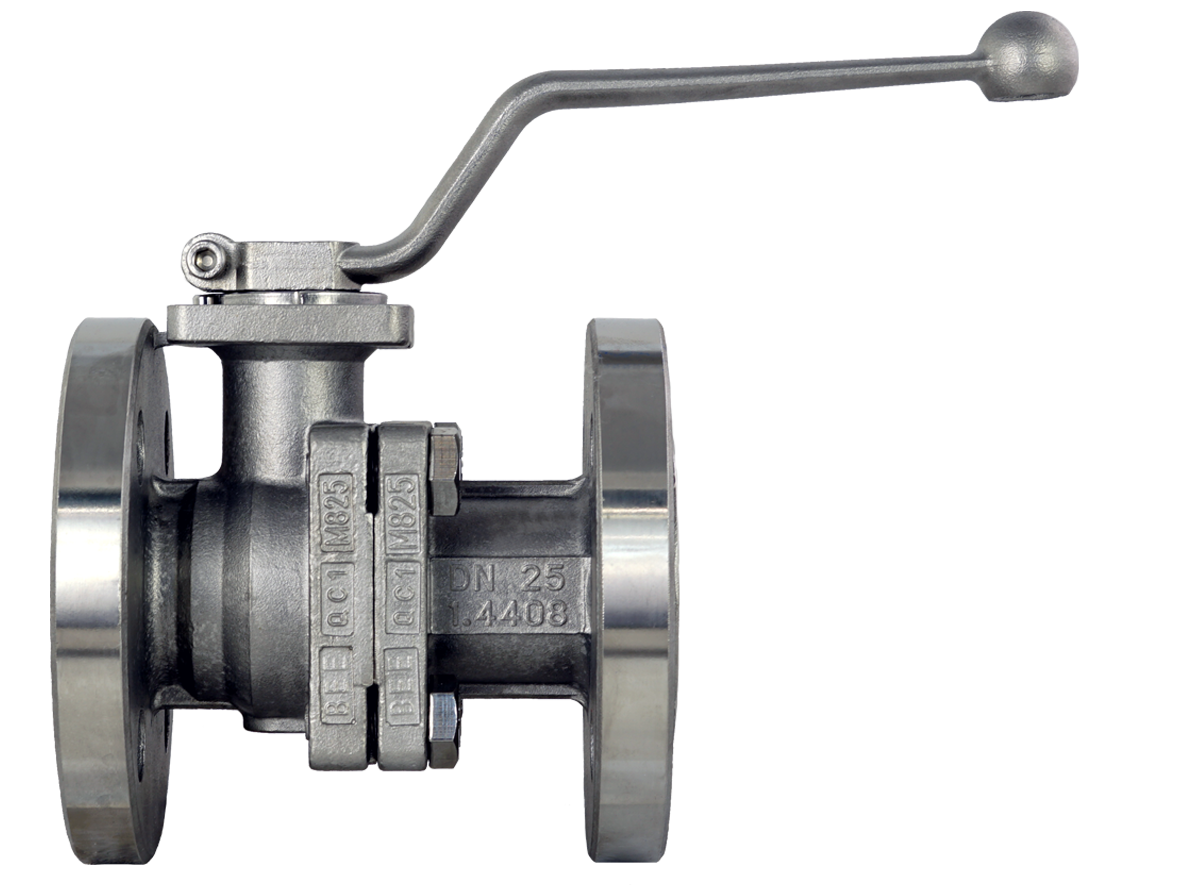

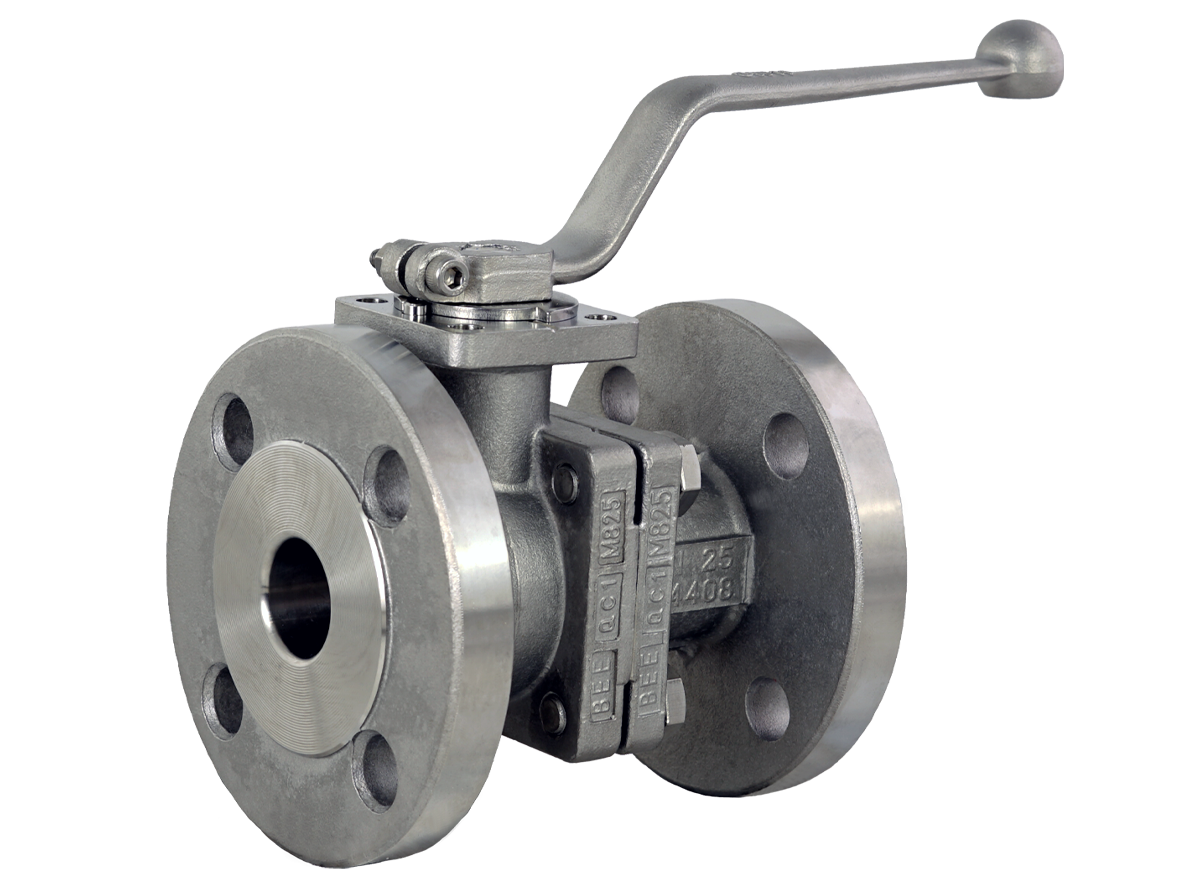

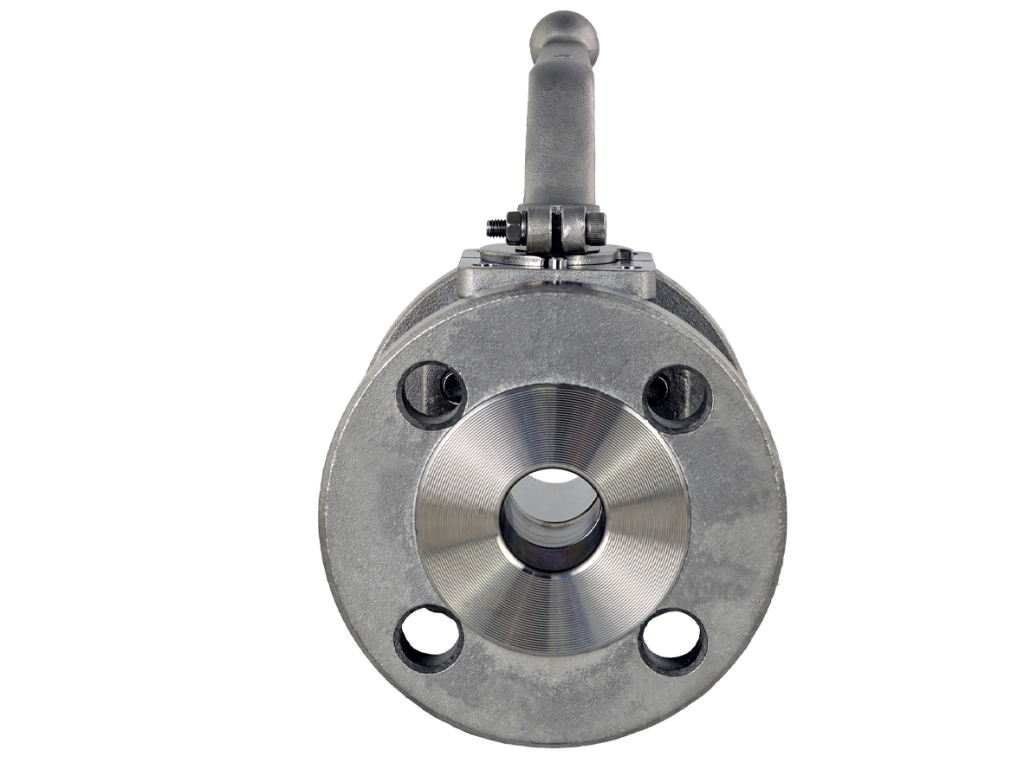

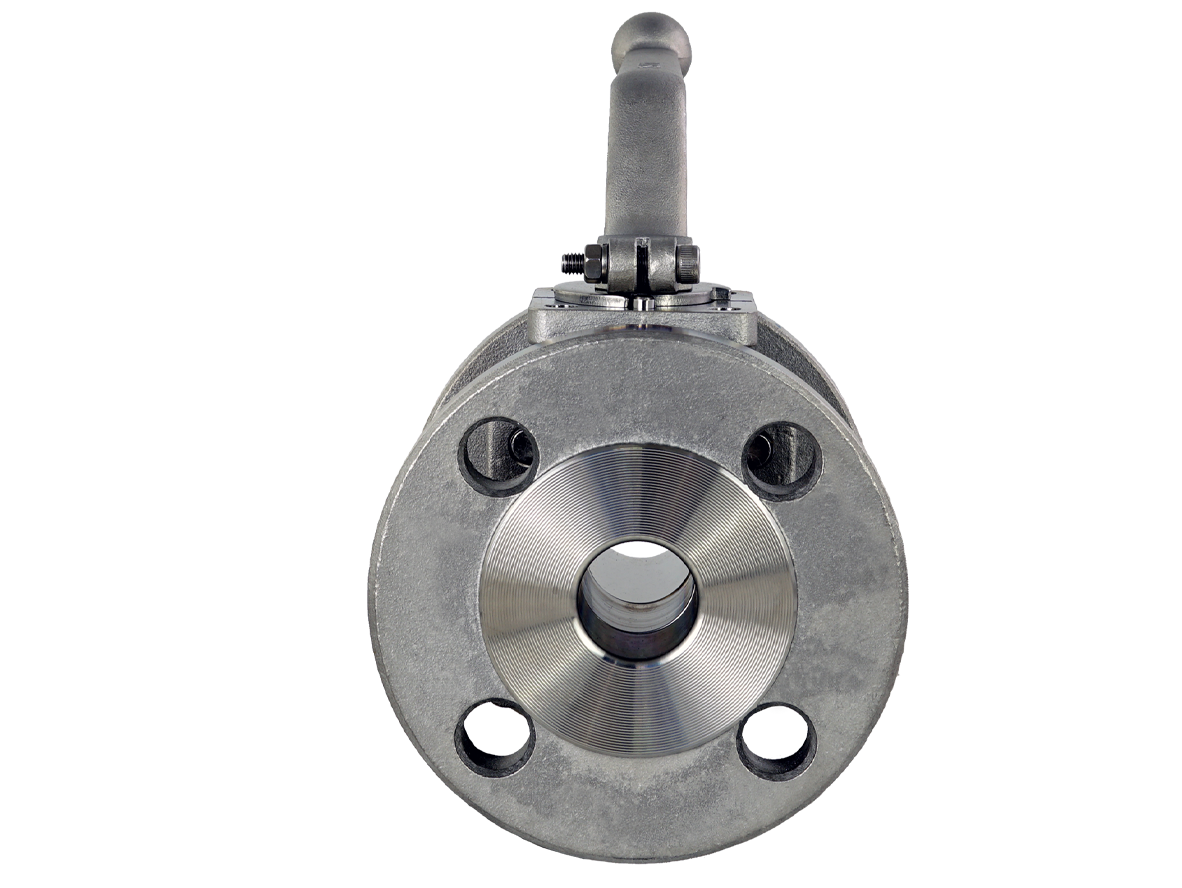

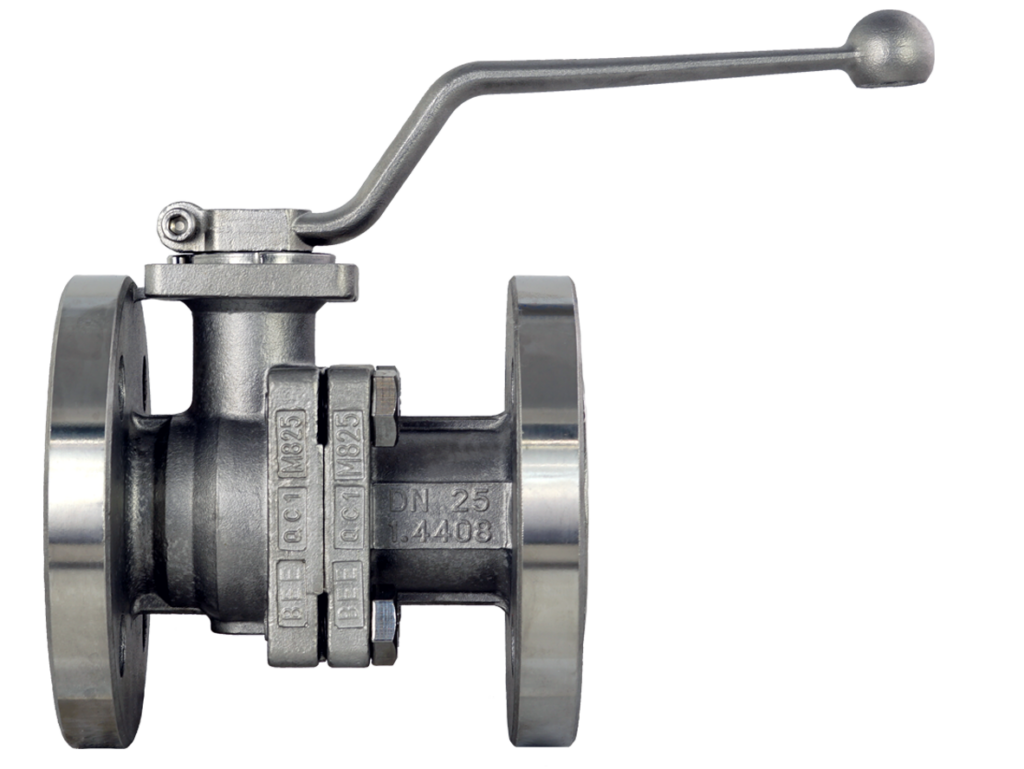

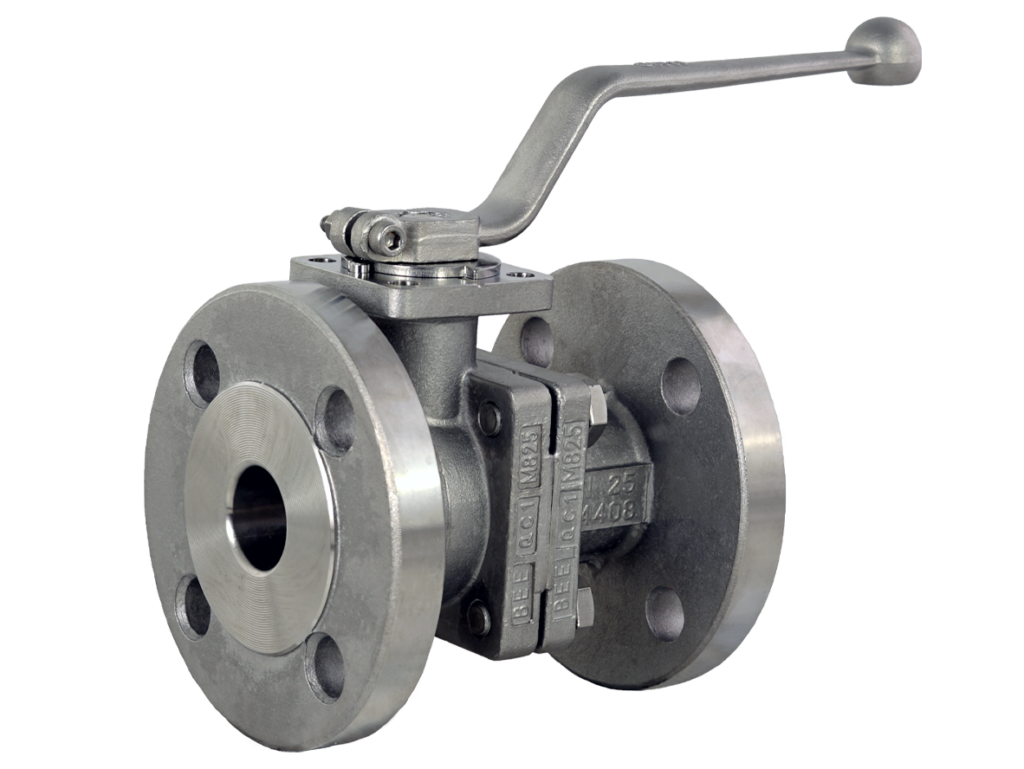

Ball valve KH123W-SSTHF (Art.-Nr.: 100-1041-xx)
- DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200
- Face to face according R27
- 2-piece body
- Body: 1.4408
- Ball: 1.4408
- Ball seat: PTFE + Glas fibre
- Direct mounting actuator ISO 5211
- Working temperature: –20°C to +180°C / gas: -20°C to +60°C
- Certificate: DVGW drinking water approval acc. to DIN EN 1074-2
- Operation: Handlever
Type
Ball Valve
Operations
Electric Actuator, Pneumatic double-acting, Pneumatic single-acting, Lever, Topflange (ISO 5211)
Sizes
DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200
Flange connection
PN10, PN16, PN40
Face-to-face
DIN EN 558 Line 27, DIN EN 558 Line 1
Body material
1.4408
Pressure range
PN16
Ball material
1.4408
Ball seat
PTFE, PTFE+Glasfibre, PTFE+TFM, Antimony-carbon, PEEK, FKM+PTFE+Graphite
Certifications
TA-Luft, PED, FireSafe
