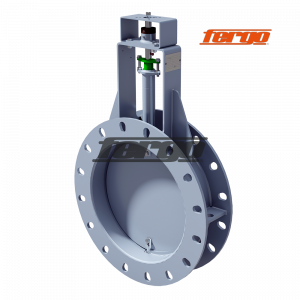

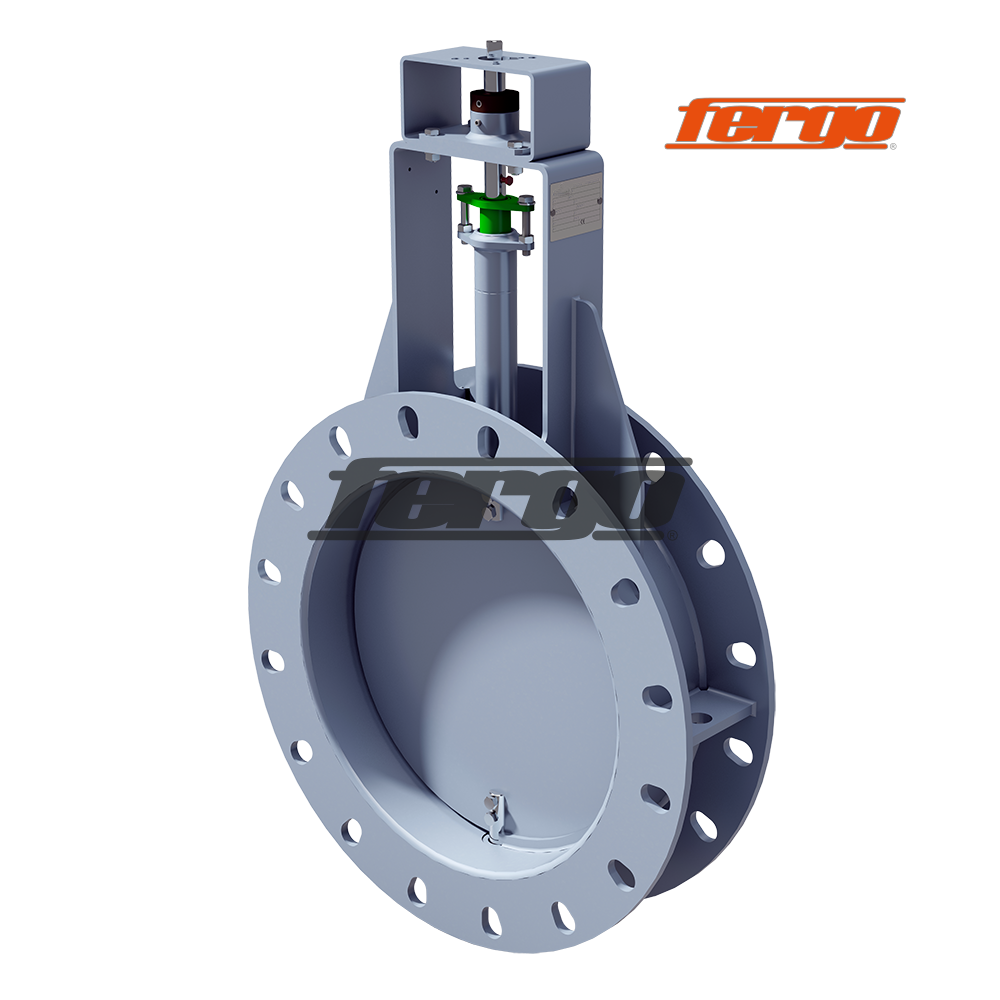

Flanged Ends AD731

The AD731 is an universal damper valve and it is simply mounted between two flanges (DIN 24154, other flanges on request). This damper valve can be designed for you individually. We offer different materials for body and disc, depending on working temperature and pressure in your construction. Due to optionally available body seat rings with graphite lining, we have minimal leak values. By using standard mounting brackets the AD731 can be automated according to your wishes. We carry a large stock of different types of damper valves, feel free to contact us if you are looking for a special design.

Type

Damper Valve

Operations

Electric Actuator, Pneumatic double-acting, Pneumatic single-acting, Lever, Topflange (ISO 5211), Gearbox with Handwheel

Flange connection

PN6, PN10, PN16, DIN 24154

Body material

Steel, Stainless steel SS304, Stainless steel SS316

Butterfly disc

Steel, Stainless steel SS304, Stainless steel SS316

Disc sealing

None, Stop bars with and without soft sealing

Packing gland

Graphite, Glass fiber

Connection

Flanges
