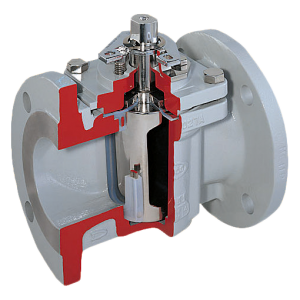

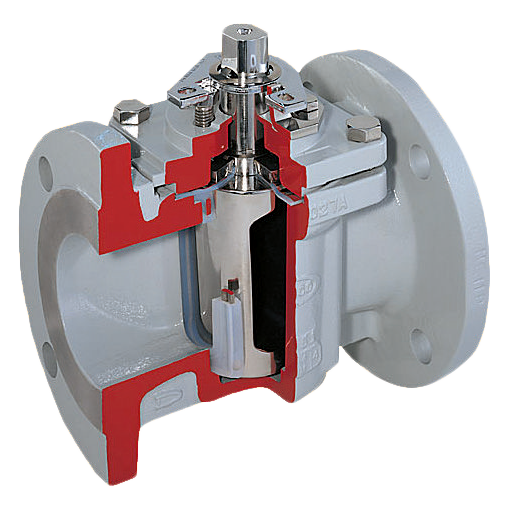

Mach1

Hochleistungs-Kükenhahn mit reduziertem Drehmoment

FLOWSERVE’s DURCO plug valves provide a better through-hole seal than other comparable on/off valves and offer equivalent or superior emissions protection compared to custom-built heavy-duty valves. They are ideal for difficult applications in the chemical and process industries, for isolating pipelines, pumps, liquid containers, reactors and other critical applications.

The models in the Mach1 series represent a further development of the plug valves. The already low torques have been reduced even further, while the maximum operating temperature has been increased to up to 274°C. Another highlight of the Mach1 plug valve: the PFA sealing bushes can be changed very easily.

Produktbezeichnung

Kükenhahn

Betätigungen

Kettenrad, Elektromotor, Pneumatisch doppelwirkend, Pneumatisch einfachwirkend, Handhebel, Aufbauflansch (ISO 5211), Getriebe mit Handrad, Knebelgriff

Nennweiten

DN10, DN15, DN20, DN25, DN40, DN50, DN80, DN100, DN150, 1/4", 3/8", 1/2", 3/4", 1", 1 1/2", 2", 3", 4", 6", DN5

Flanschanschluss

PN10, ANSI 150, PN16, PN40, ANSI 300, ANSI 600, PN25

Baulänge

ANSI B 16.10

Gehäusematerial

GGG40, 1.4408, 1.0619, 1.4301, Durcomet 100, Durimet 20, Chlorimet 2, Chlorimet 3, Nickel, Monel, Durcomet 5, 1.4547

Stopfbuchspackung

Grafit

Druckstufe

PN40, PN25, PN16, PN10, Class 150, Class 300, Class 600

Dichtung

Graphit

Anschluss

IG/IG, Schweißmuffen, Anschweißenden, Flansche
