PTFE Butterfly Valve type AK130

PTFE coated and sealed

PTFE Lined Butterfly Valve

The PTFE-lined butterfly valves are specially designed for use in highly aggressive and corrosive media for industrial purposes. Fergo offers PTFE-lined butterfly valves with automation. The PTFE-lined butterfly valves are available with pneumatic and electric actuators. The additional accessories can be combined as required.

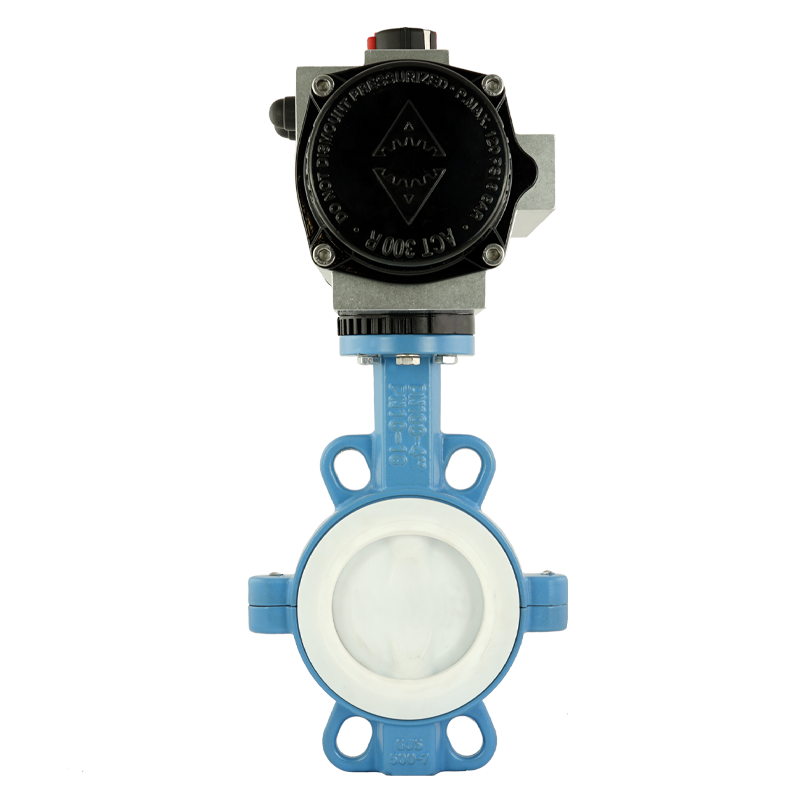

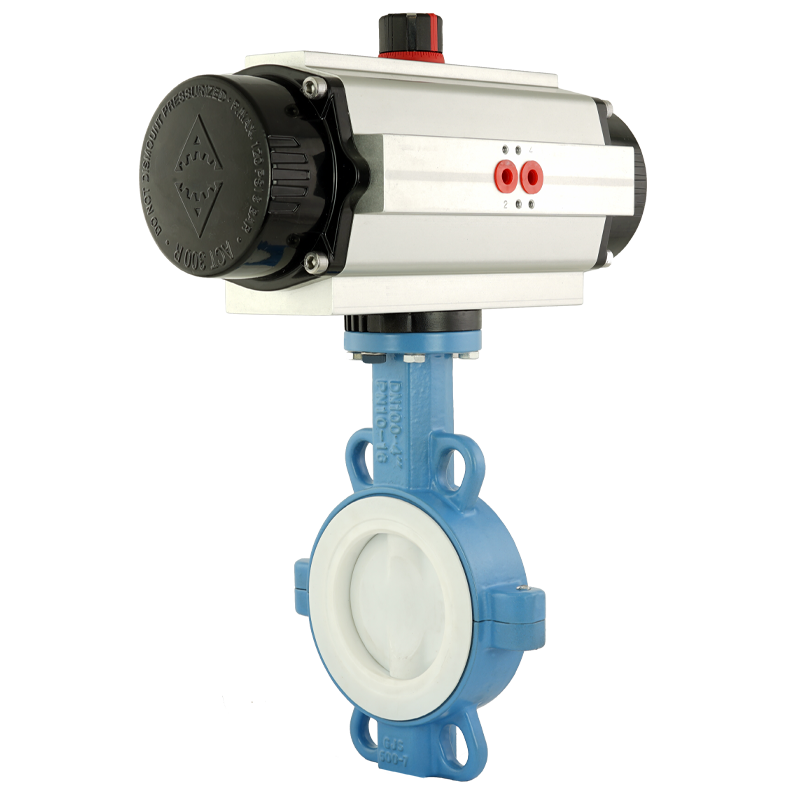

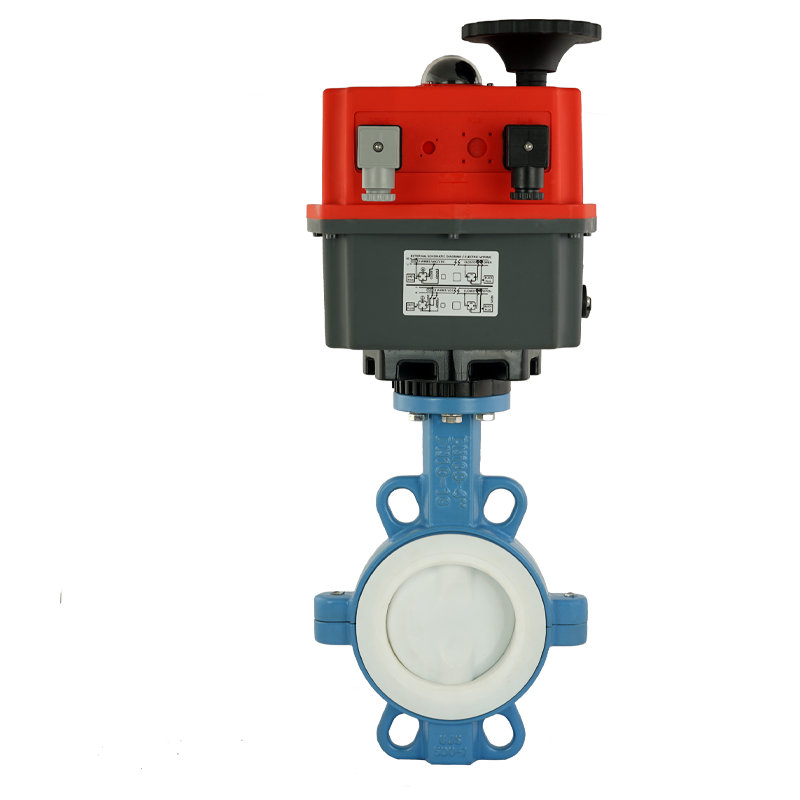

PTFE-lined butterfly valves with actuator

Structure: Fergo offers fully assembled butterfly valves with pneumatic or electric actuators with additional accessories such as a solenoid valve, mounting bridge, adapter, and surface-mounted fittings such as position indicator, position indicator, limit switch, and positioner.

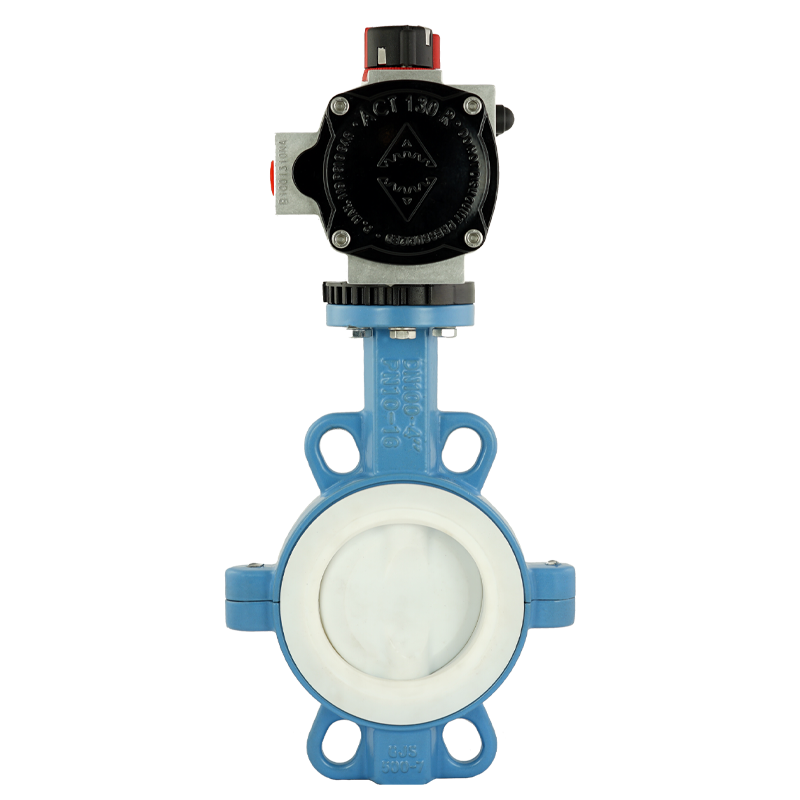

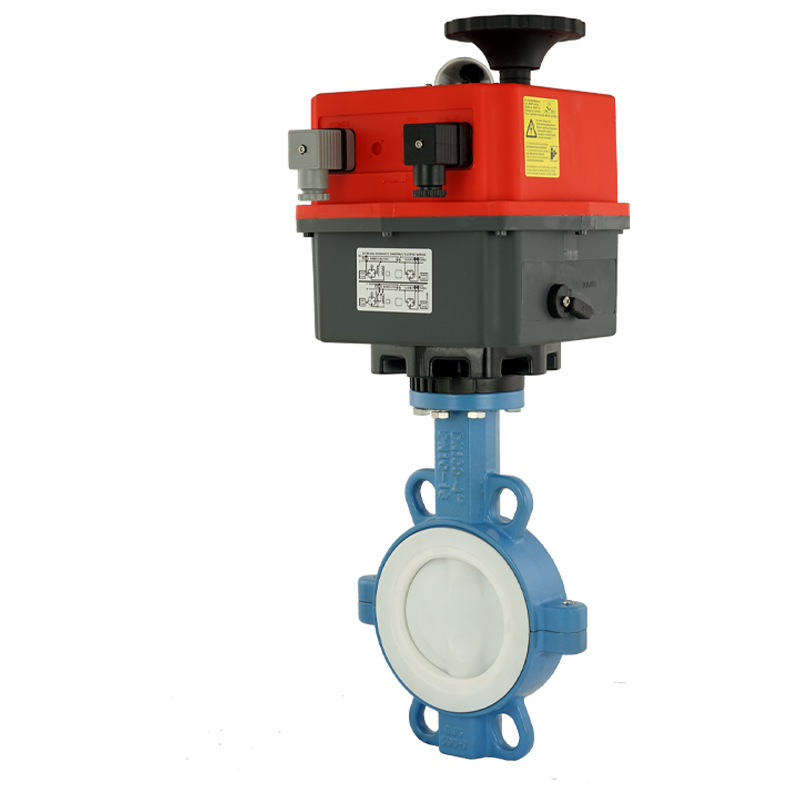

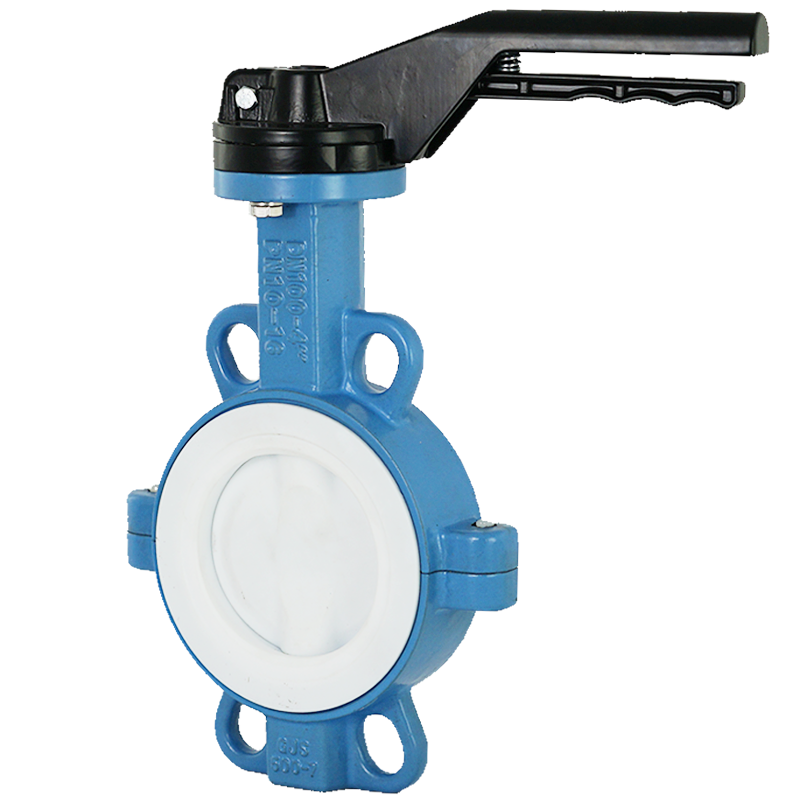

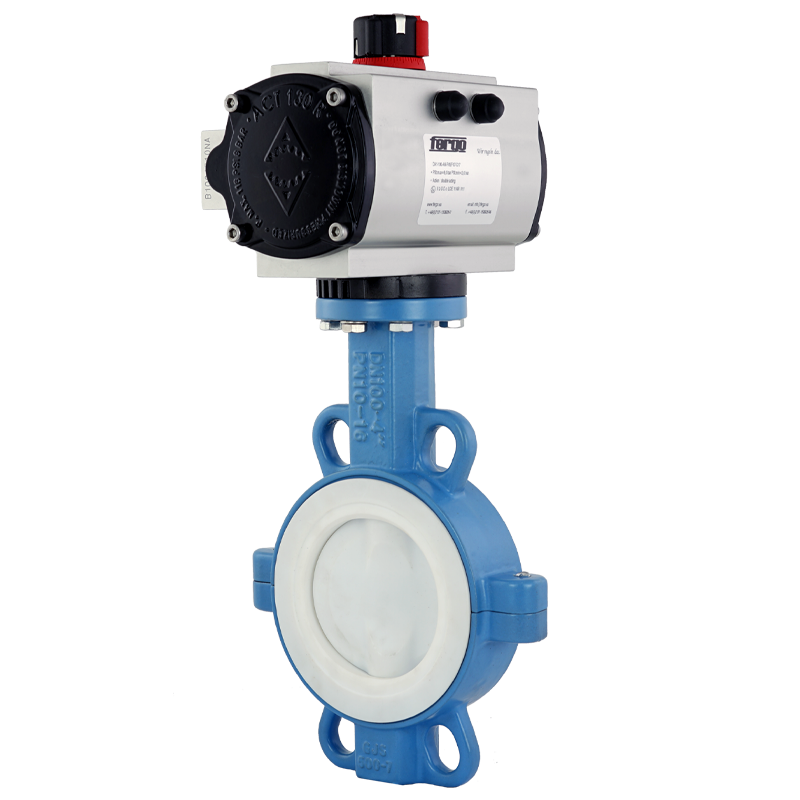

Fergo butterfly valve type AK130-DYTXW-DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300

  • Series 20WP4040
  • Wafer body – 2-piece
  • Tight-closing – Centrically mounted
  • Installation between flanges PN10, PN16, ANSI 150
  • Head flange to ISO 5211
  • Body: EN-GSJ-500-7 (GGG50) nodular cast iron
  • Butterfly disc: ASTM A182 F316 (CF8M), PTFE coating
  • Nominal pressure (max.): 16bar
  • Seat ring: PTFE
  • Temp. (min. max.): -25°C to +200°C
  • Actuation: Hand lever, pneumatic & electric Actuators

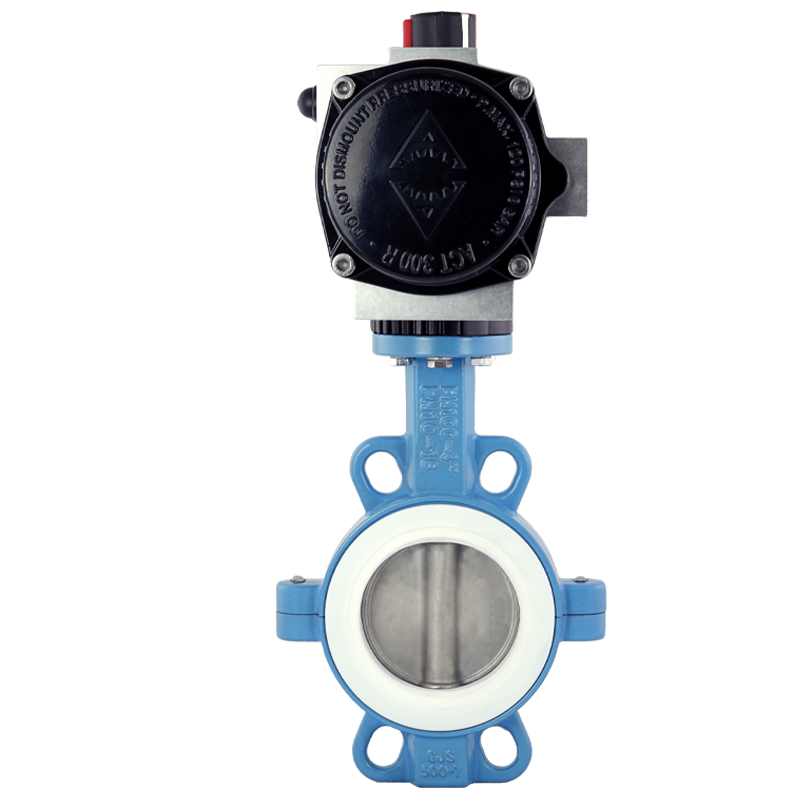

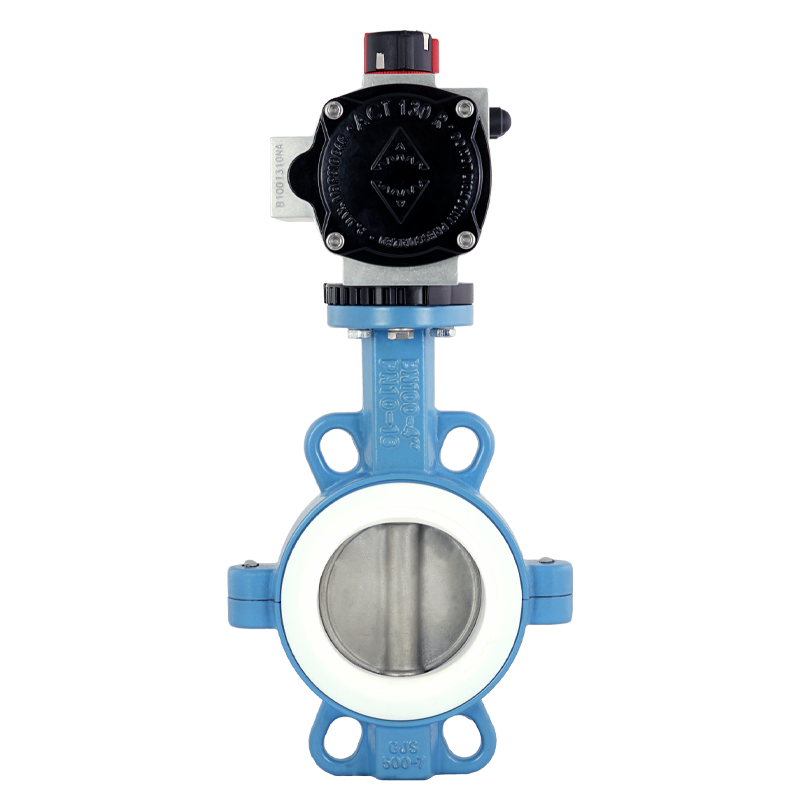

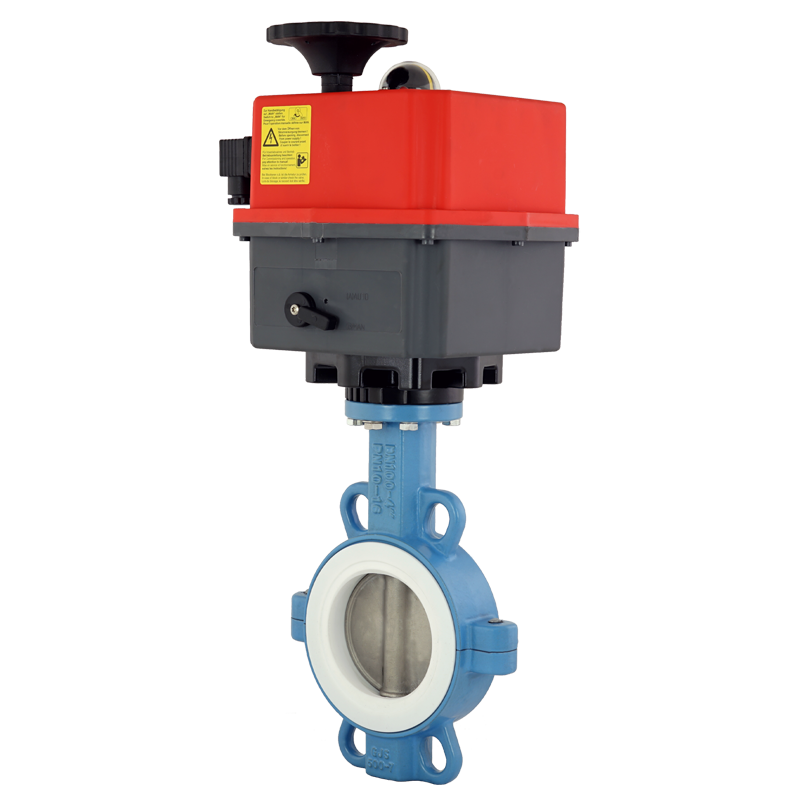

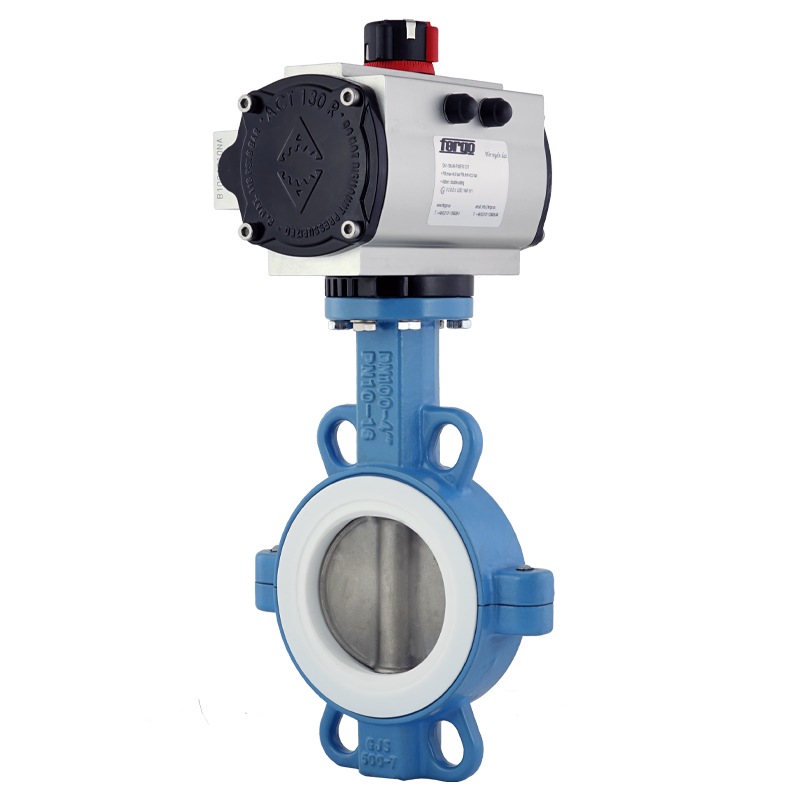

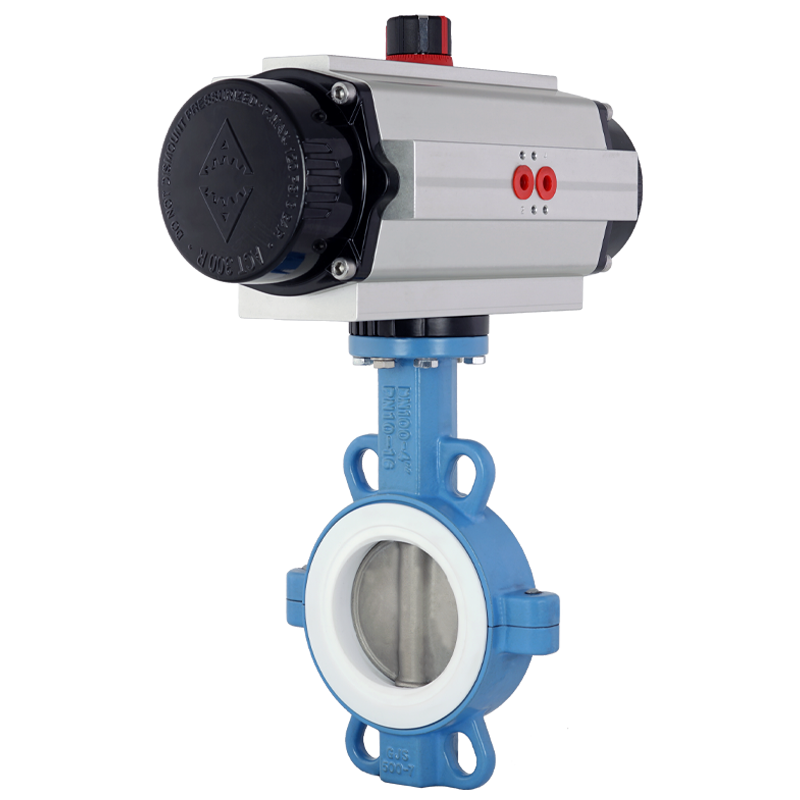

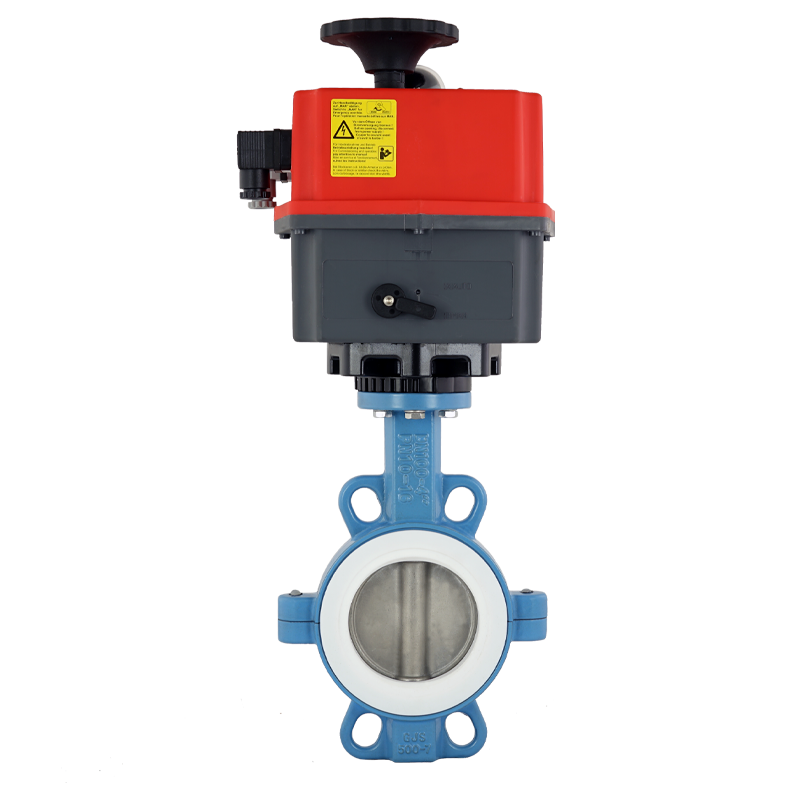

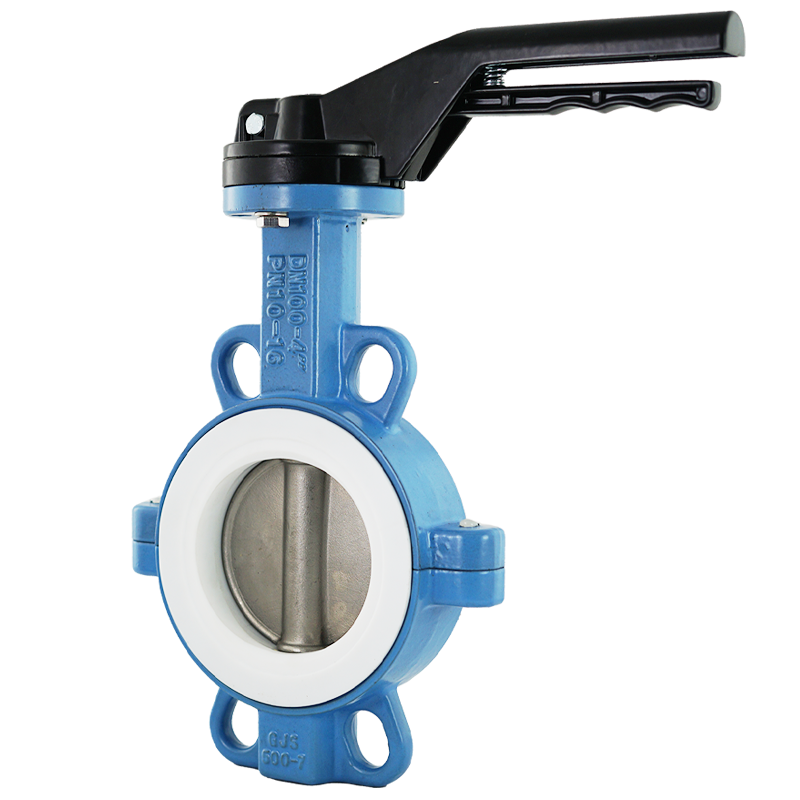

Fergo butterfly valve type AK130-DSTXW-DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300

  • Series 20WP4040
  • Wafer body – 2-piece
  • Tight-closing – Centrically mounted
  • Installation between flanges PN10, PN16, ANSI 150
  • Head flange to ISO 5211
  • Body: EN-GSJ-500-7 (GGG50) nodular cast iron
  • Butterfly disc: ASTM A182 F316 (CF8M)
  • Nominal pressure (max.): 16bar
  • Seat ring: PTFE
  • Temp. (min. max.): -25°C to +200°C
  • Actuation: Hand lever, pneumatic & electric Actuators
