PTFE butterfly valve

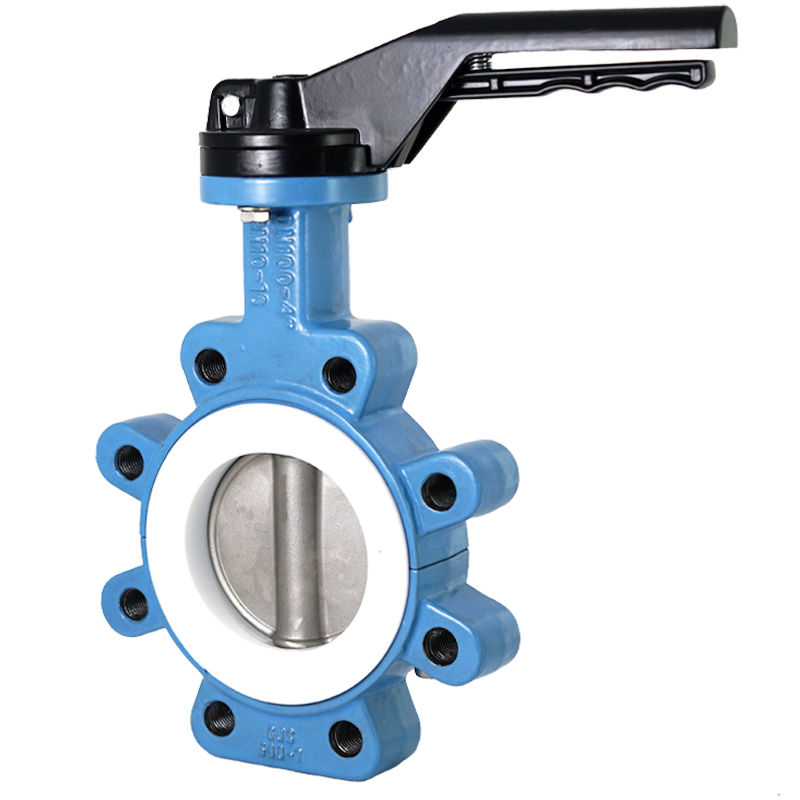

The PTFE-lined butterfly valves have been developed with a minimum of 3mm thick PTFE lining to ensure an optimum level of protection. The PTFE-lined butterfly valves are available in wafer and flanged versions with connections of PN10/16/150lbs from DN40-DN300. The PTFE-lined butterfly valves can be controlled with a hand lever, a pneumatic actuator, and an electric actuator.

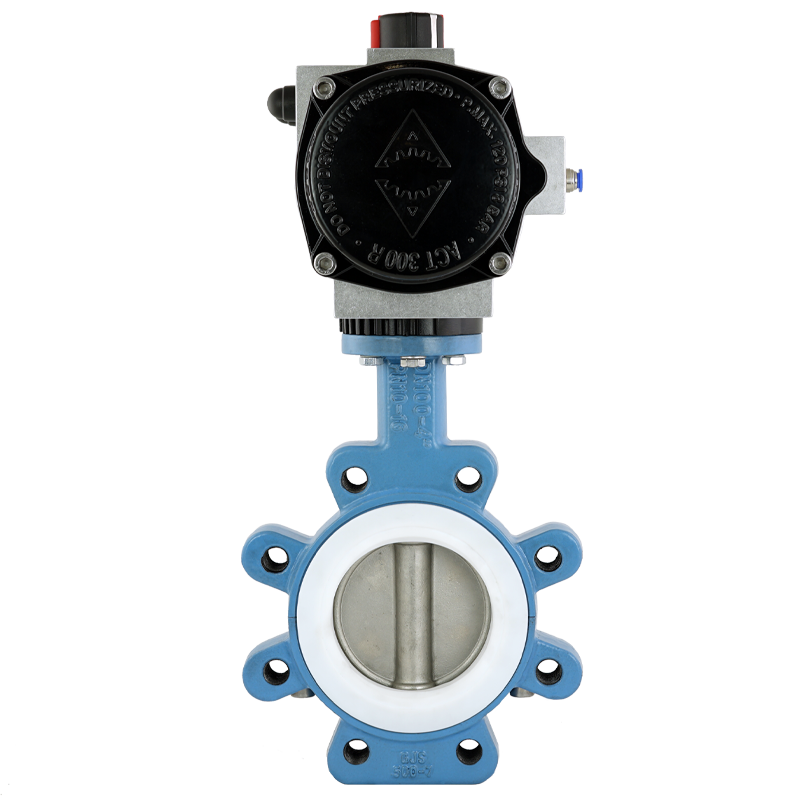

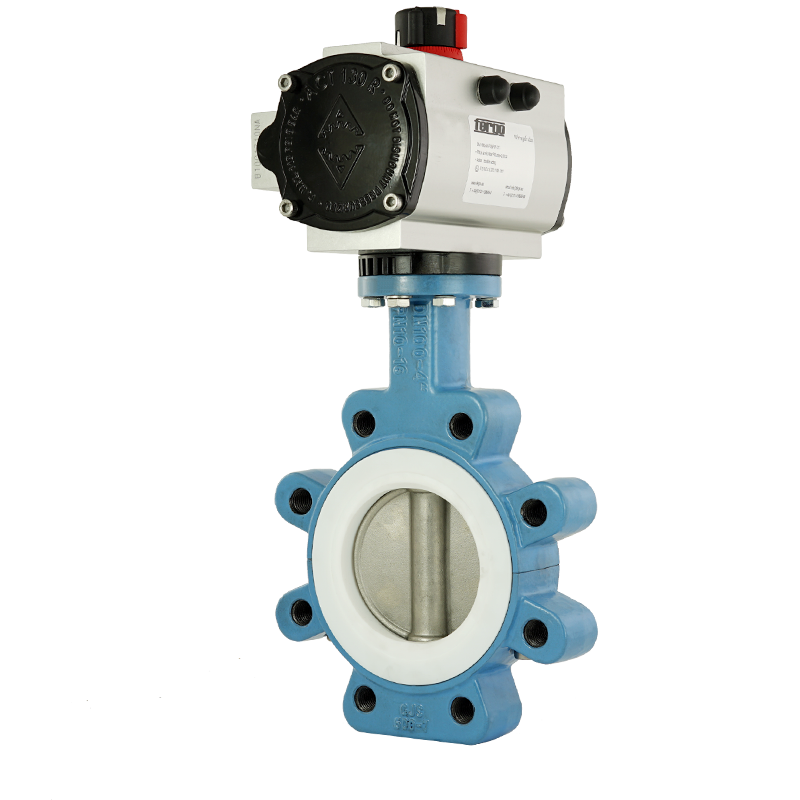

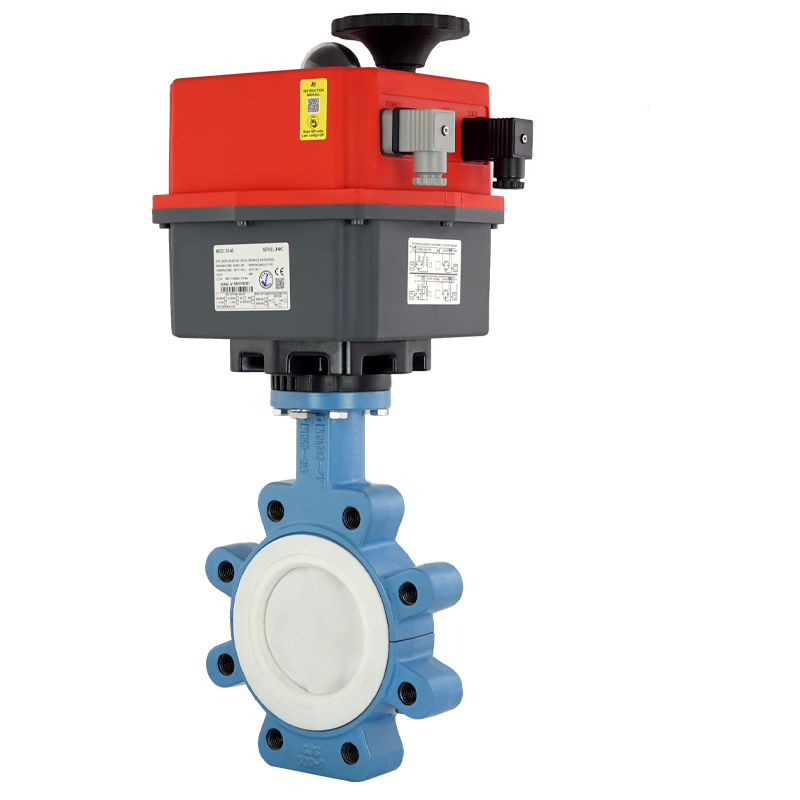

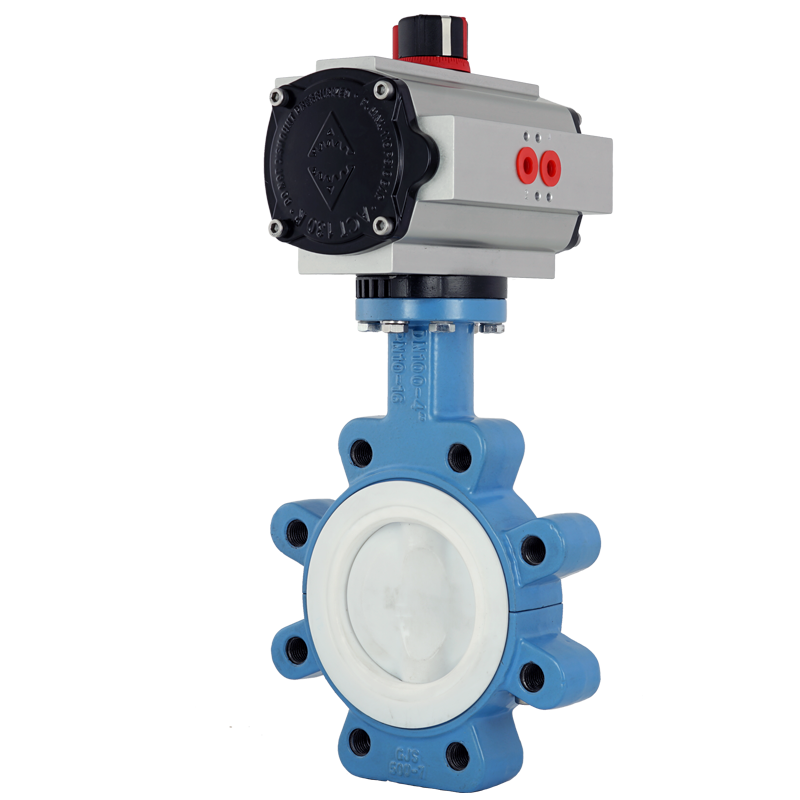

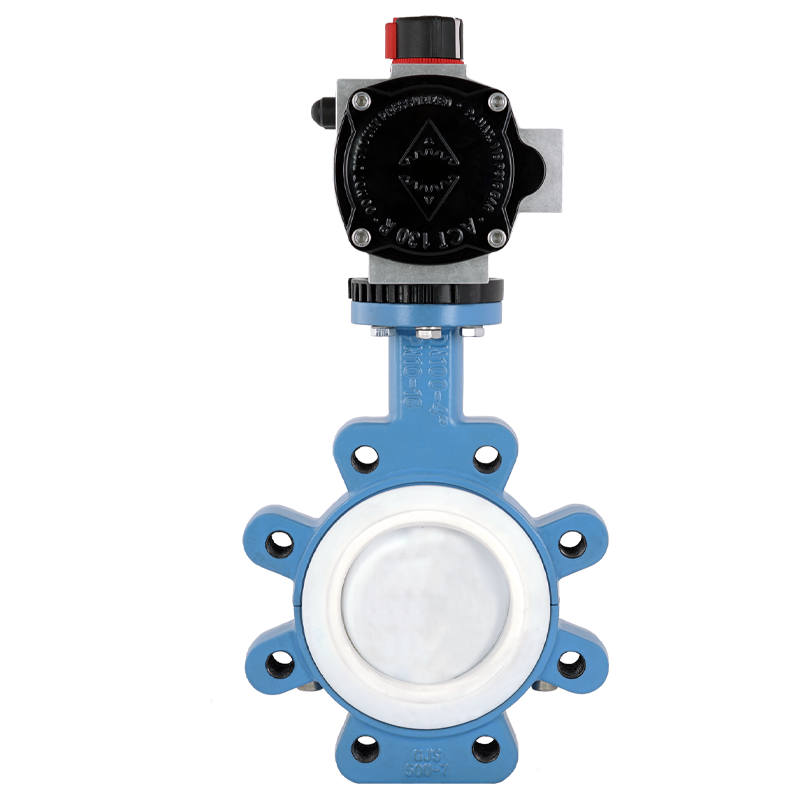

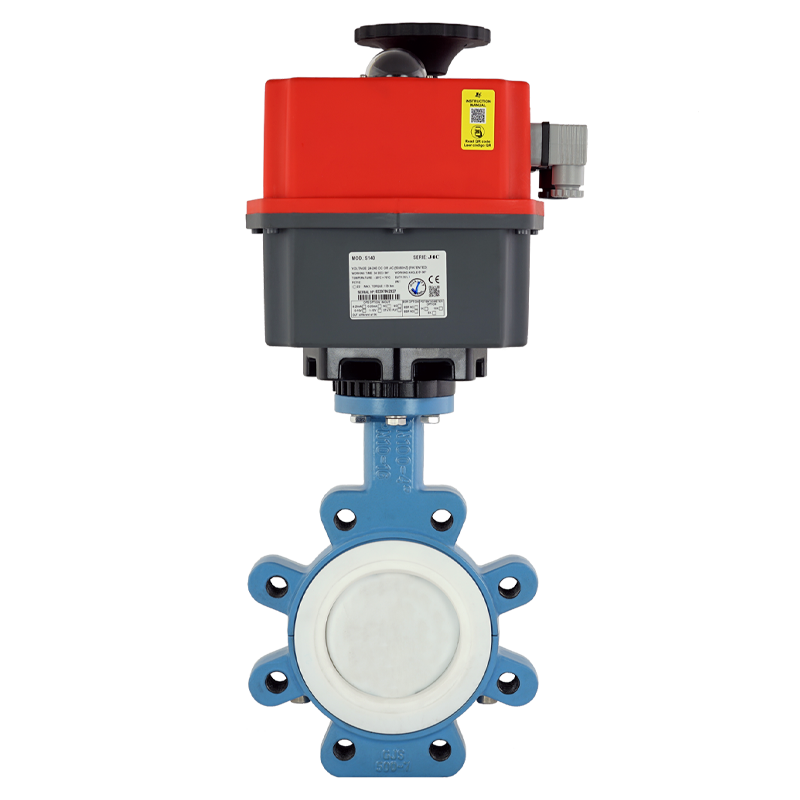

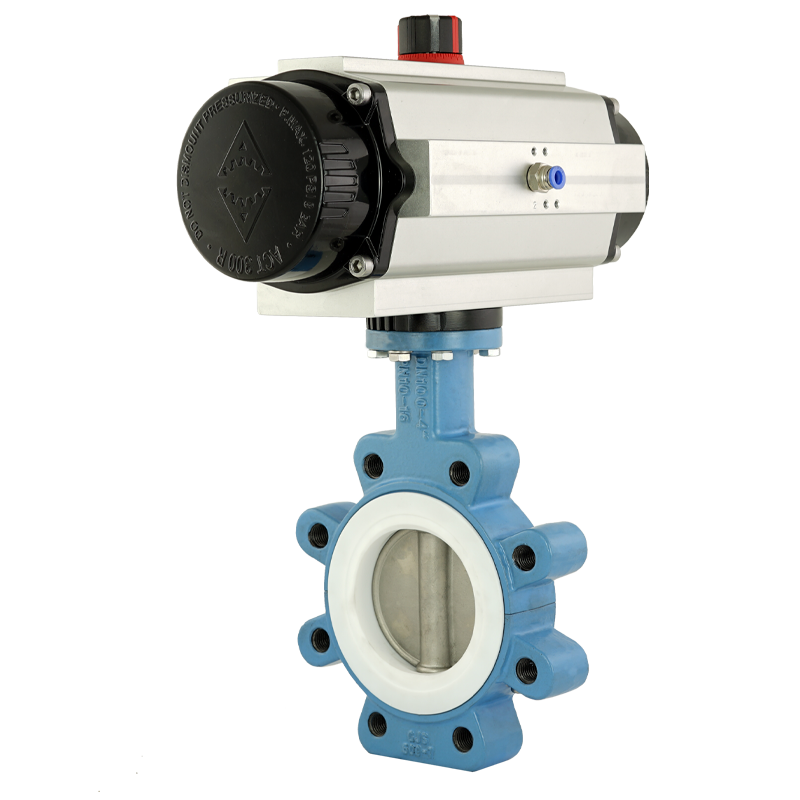

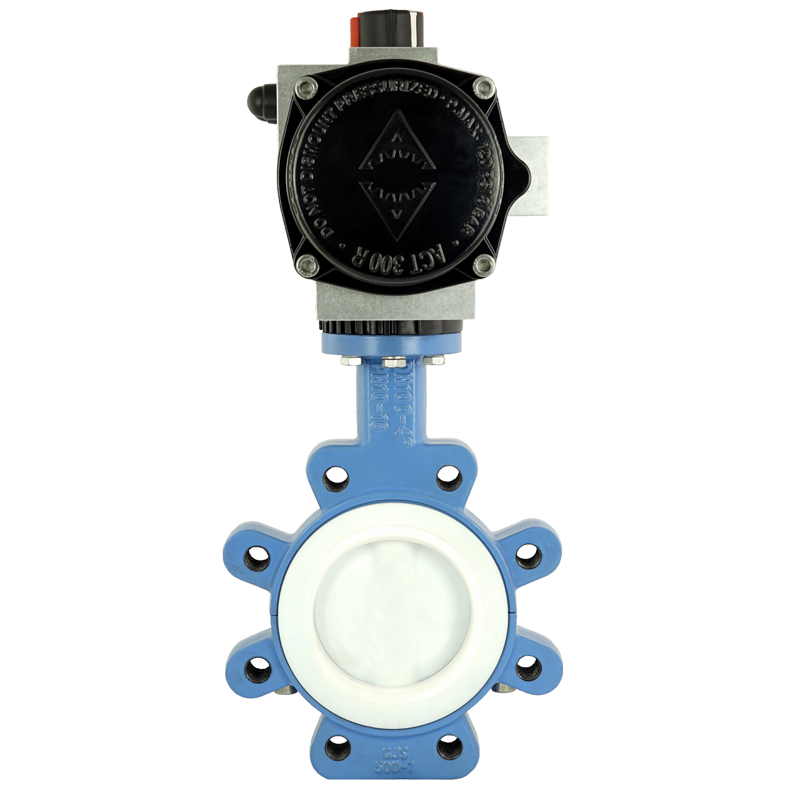

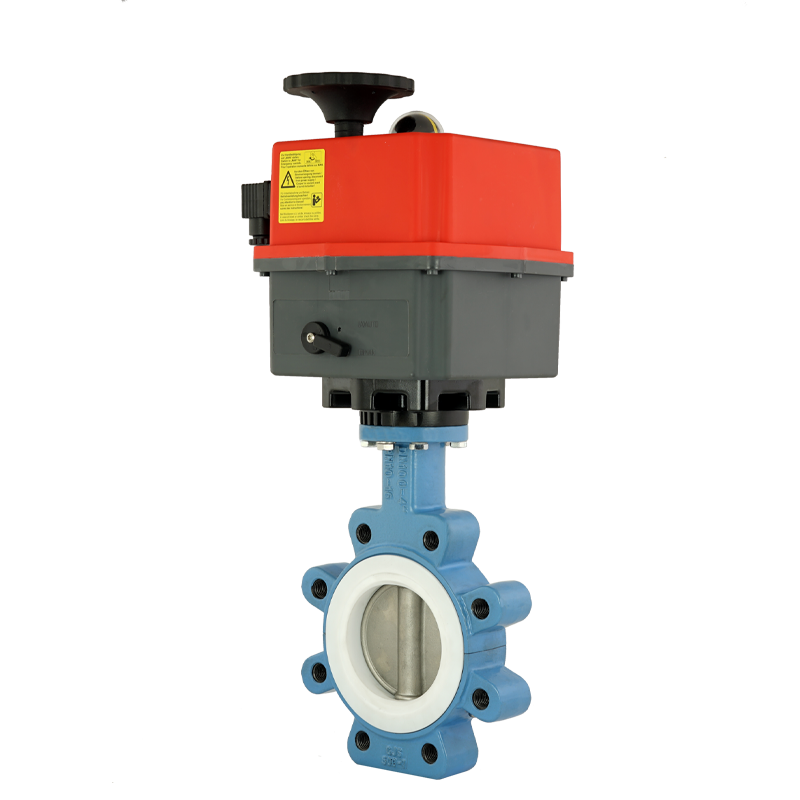

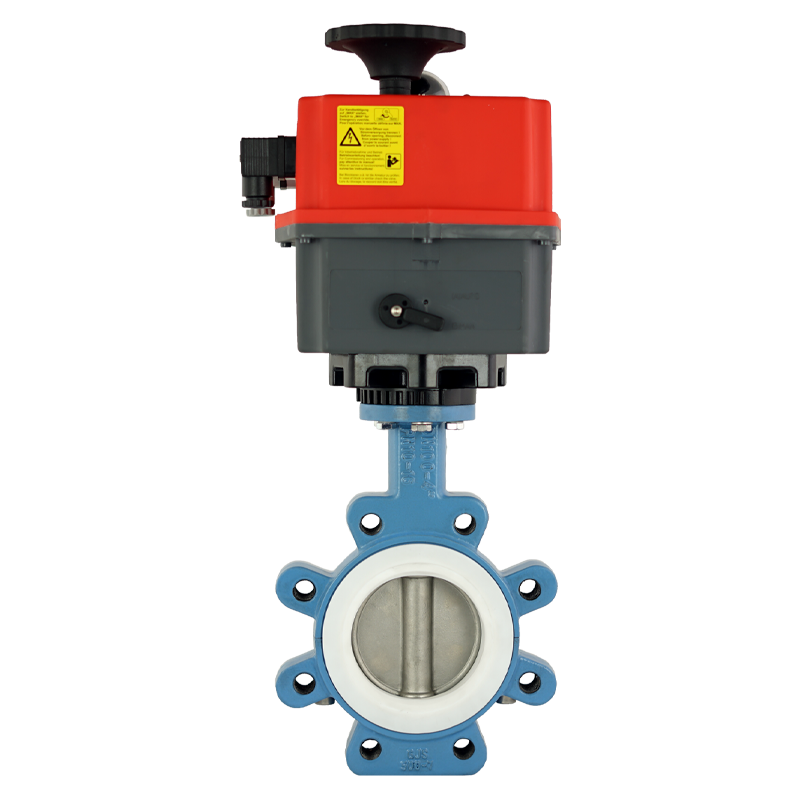

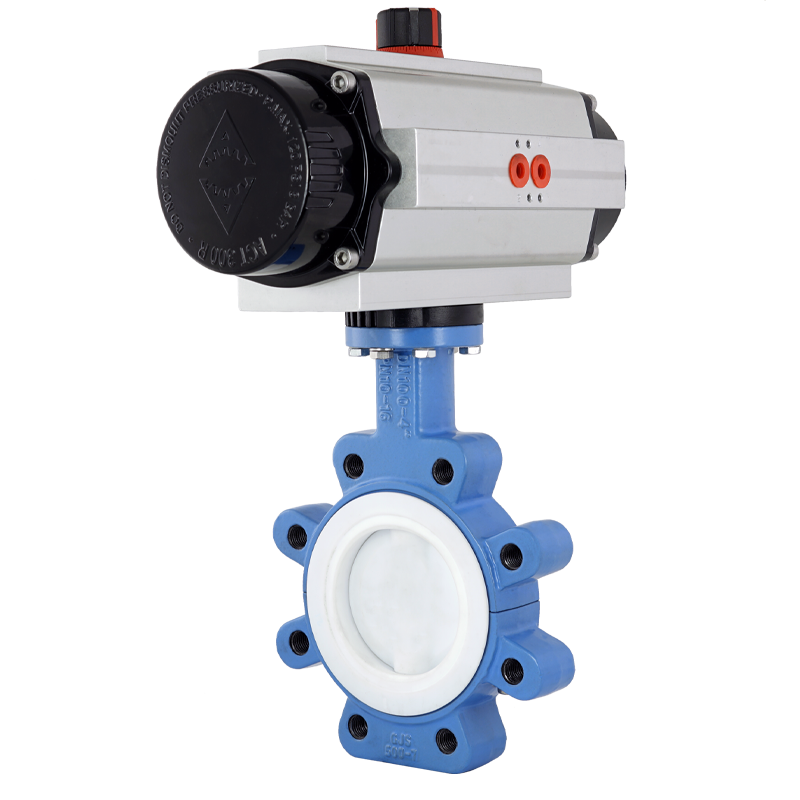

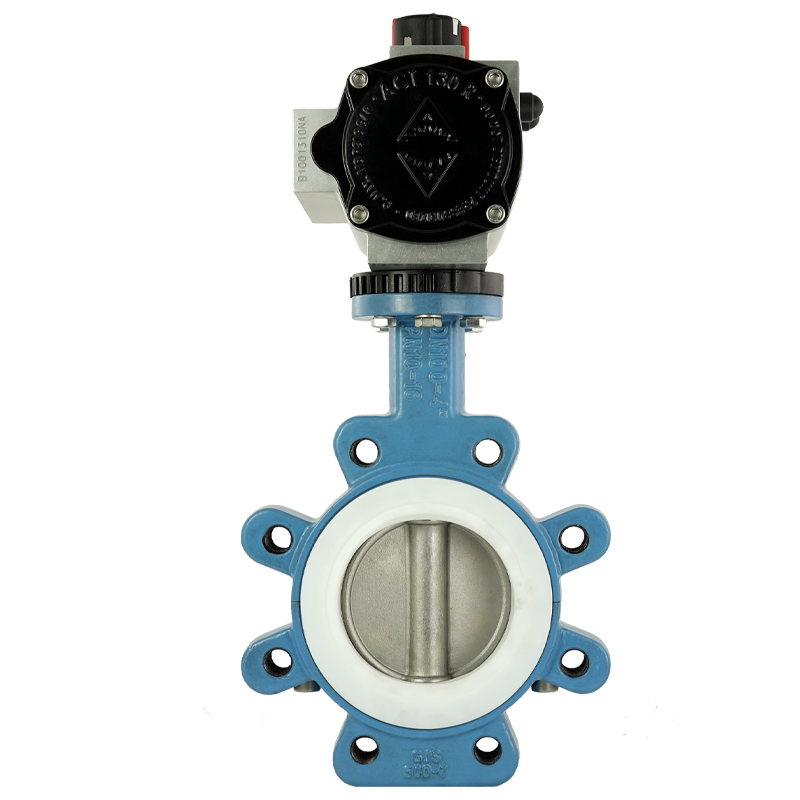

Automated PTFE coated butterfly valve: pneumatic & electric
The butterfly valve can be installed by ISO 5211 standards. Fergo Armaturen GmbH has a wide range of automation options at its disposal. Fergo Armaturen has extensive experience in the field of automation technology.
Please contact us for further details and inquiries. We will be happy to advise you with our professional experts.
Assembly: Fergo offers fully assembled butterfly valves with a pneumatic or electric actuator with additional accessories such as a solenoid valve, mounting bridge, adapter, and surface-mounted valves such as position indicator, position indicator, limit switch, and positioner.
Fergo butterfly valve type AK131-DYTLL-DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300
- Series 20WP4040
- Lug/Flanged body – 2-piece
- Tight-closing – Centrically mounted
- Installation between flanges PN10, PN16 – Optional: flange bore 150lbs
- Head flange to ISO 5211
- Body: EN-GSJ-500-7 (GGG50) nodular cast iron
- Butterfly disc: ASTM A182 F316 (CF8M), PTFE coating
- Nominal pressure (max.): 16bar
- Seat ring: PTFE
- Temp. (min. max.): -25°C to +200°C
- Operation: Hand lever, gearbox, pneumatic & electric actuator
- Control accessories and options: Limit switch box, Solenoid/pilot valve, Positioner, stem extension

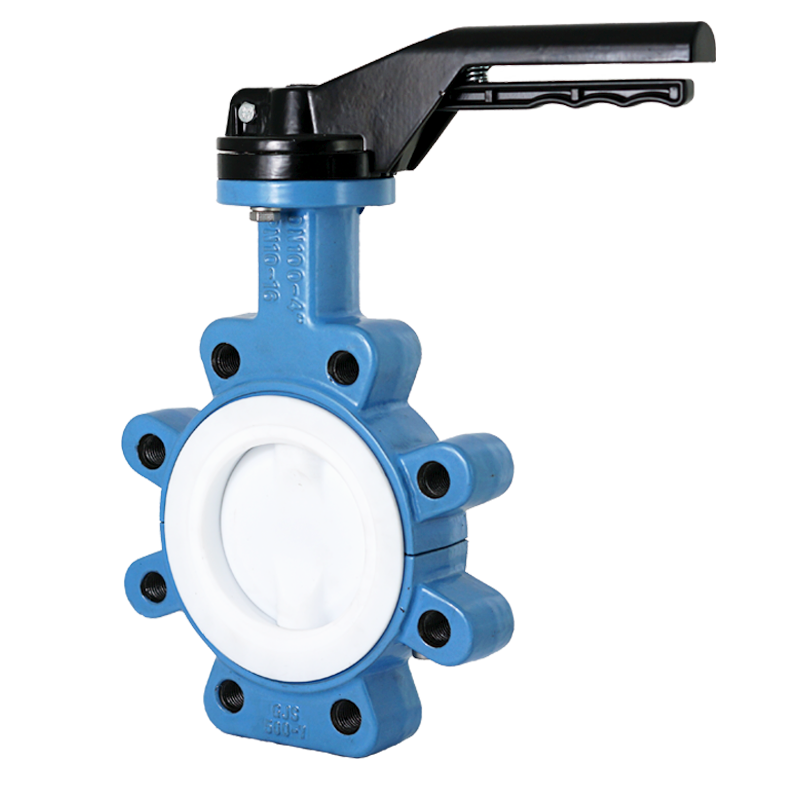

Fergo butterfly valve type AK130-DSTLL-DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300
- Series 20WP4040
- Lug body – 2-piece
- Tight-closing – Centrically mounted
- Installation between flanges PN10, PN16 – Optional: flange bore 150lbs
- Head flange to ISO 5211
- Body: EN-GSJ-500-7 (GGG50) nodular cast iron
- Butterfly disc: ASTM A182 F316 (CF8M)
- Nominal pressure (max.): 16bar
- Seat ring: PTFE
- Temp. (min. max.): -25°C to +200°C
- Operation: Hand lever, gearbox, pneumatic & electric actuator
- Control accessories and options: Limit switch box, Solenoid/pilot valve, Positioner, stem extension
Product designation
Butterfly valve
Operations
Electric actuator, Pneumatic double-acting, Pneumatic single-acting, Hand lever, Mounting flange (ISO 5211), Gearbox with handwheel
Flange connection
PN10, PN16, optional flange bore 150lbs
Overall length
EN 558 S20
Housing material
EN-GSJ-500-7 (GGG50) Spheroidal graphite cast iron
Flap
CF8M (1.4408) & PTFE PFA lined
Flap seal
PTFE
Pressure level
16 Bar
