Lug-type butterfly valve type AK211

Lug butterfly valve with multiple customisation options

Lug Type Butterfly Valve: customisable butterfly valve

The new AK211 is a concentric butterfly valve for the highest demands because it is possible to convert it nearly completely. Each AK211 is mounted complying with your request, with exactly the materials you need for your operation. Besides the standard body and valve materials, the AK211 is also available in bronze, aluminium and even Hastelloy. The valve seal, the so-called seat ring, is available in NBR, EPDM, and Viton, but also in silicone, Hypalon and many other materials. Our AK211 is also DVGW Gas (AK211G) and DVGW drinking water (AK211W) certified. All valves of the FERGO Armaturen GmbH are very easy to automate due to the standard top-mounting flange (ISO5211); we can do this for you, too. The AK211 is deliverable as wafer-version, too, which is our type AK210.

In addition to the normal EPDM, NBR, and Viton/FPM/FKM seats, our flanged butterfly valve AK211 can also be ordered with different food grade seats, high-temperature/low-temperature seats, silicon, Flucast, Hypalon, Butyl, and many more. The butterfly valve with ATEX is also available at request.

The AK211 and the AK210 can perfectly be aligned with your application. Please ask our sales department which combination is ideal for you – this is of course absolutely non-binding and without any charge.

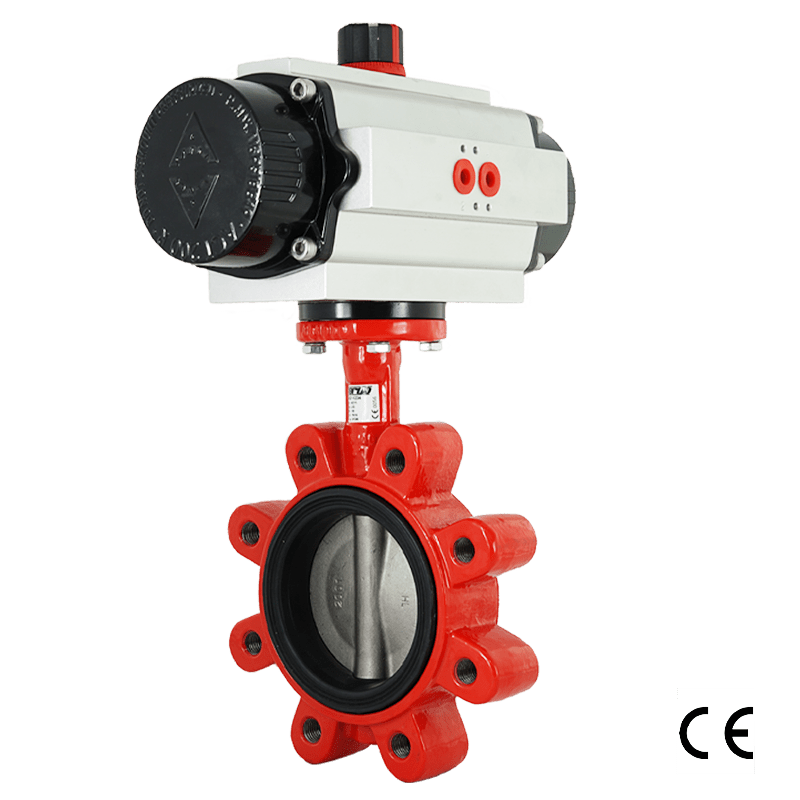

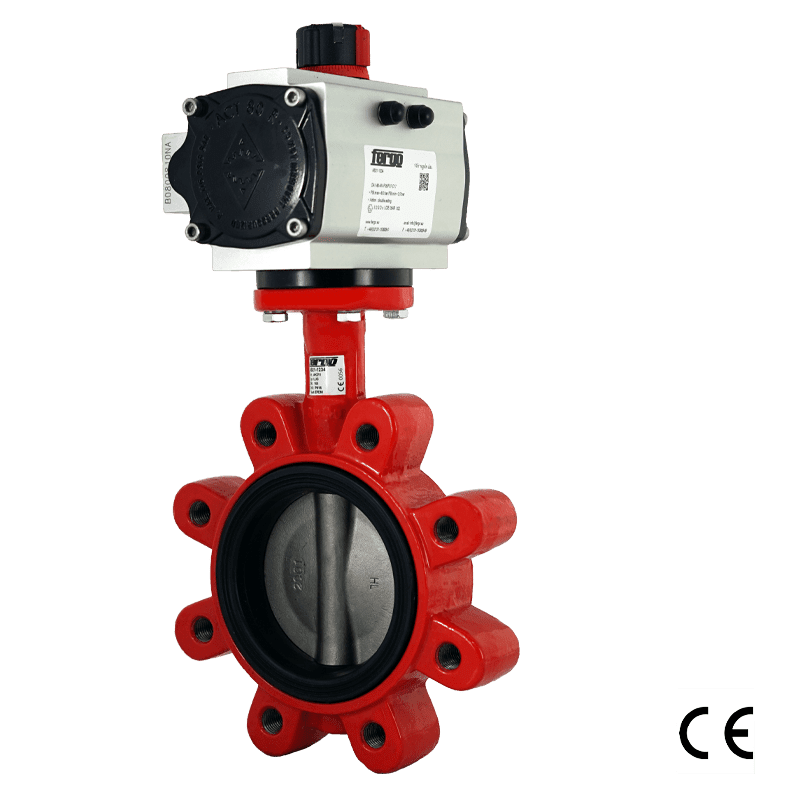

Flanged mounting butterfly valve with actuators

Butterfly Valve type AK211-D2SELL (Art.-Nr.: 150-1621-xx) DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600

  • LUG type for mounting between flanges PN10
  • Top flange ISO 5211
  • Concentric design
  • Body: GGG40 + Epoxy 120µm
  • Disc: CF8M (1.4408)
  • Shaft: AISI 420
  • Seat: EPDM
  • Temp. (min./max.): -20°C to +110°C
  • Operation: hand lever, gearbox, pneumatic & electric actuator
  • Accessories and options: Limit switch box, Solenoid/pilot valve, Positioner, stem extension

Butterfly Valve type AK211-D2SELL (Art.-Nr.: 150-1641-xx) DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600

  • LUG type for mounting between flanges PN16
  • Top flange ISO 5211
  • Concentric design
  • Body: GGG40 + Epoxy 120µm
  • Disc: CF8M (1.4408)
  • Shaft: AISI 420
  • Seat: EPDM
  • Temp. (min./max.): -20°C to +110°C
  • Operation: hand lever, gearbox, pneumatic & electric actuator
  • Accessories and options: Limit switch box, Solenoid/pilot valve, Positioner, stem extension

Butterfly Valve type AK211-D2SVLL (Art.-Nr.: 150-1629-xx) DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600

  • LUG type for mounting between flanges PN10
  • Optional: flanges drilling 150lbs
  • Top flange ISO 5211
  • Concentric design
  • Body: GGG40 + Epoxy 120µm
  • Disc: CF8M (1.4408)
  • Shaft: AISI 420
  • Seat: VITON
  • Temp. (min./max.): -15°C to +190°C
  • Operation: hand lever, gearbox, pneumatic & electric actuator
  • Accessories and options: Limit switch box, Solenoid/pilot valve, Positioner, stem extension

Butterfly Valve type AK211-D2SVLL (Art.-Nr.: 150-1649-xx) DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600

  • LUG type for mounting between flanges PN16
  • Optional: flanges drilling 150lbs
  • Top flange ISO 5211
  • Concentric design
  • Body: GGG40 + Epoxy 120µm
  • Disc: CF8M (1.4408)
  • Shaft: AISI 420
  • Seat: VITON
  • Temp. (min./max.): -15°C to +190°C
  • Operation: hand lever, gearbox, pneumatic & electric actuator
  • Accessories and options: Limit switch box, Solenoid/pilot valve, Positioner, stem extension

Type

Butterfly Valve

Operations

Electric Actuator, Pneumatic double-acting, Pneumatic single-acting, Lever, Topflange (ISO 5211), Gearbox with Handwheel, Regulation Lever

Sizes

DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600, DN700, DN750, DN800, DN900, DN1000

Flange connection

PN10, PN16

Face-to-face

DIN EN 558-1 Line 20

Body material

GJS400, WCB (1.0619), CF8M (1.4408), Bronze, Aluminium

Butterfly Disc

GJS400, WCB (1.0619), CF8M (1.4408), Alubronze, Hastelloy C

Disc sealing

EPDM, NBR, Viton (FPM), Viton Bio, Silicone, Hypalone

Pressure range

PN10, PN16
