Butterfly valve for gas: DVGW gas approval
The AK210G wafer-type butterfly valve has been specially designed for gas applications. The body is made of GGG40 (EN GJS 400-15) with an epoxy resin coating, the disc is made of stainless steel 1.4408 (CF8M) or GGG40 (EN GJS 400-15), and the sealing sleeve is made of NBR. The butterfly valve is DVGW gas certified and is therefore suitable for fuel gases under G 260 (-20°C to max. +60°C).
Gas butterfly valve with actuator
All butterfly valves from FERGO Armaturen GmbH can be easily automated thanks to the standardised (EN ISO 5211) mounting flange, which we will also be happy to do for you. The AK210G is also available in the flange-mounted version (LUG) and has the type designation AK211G.

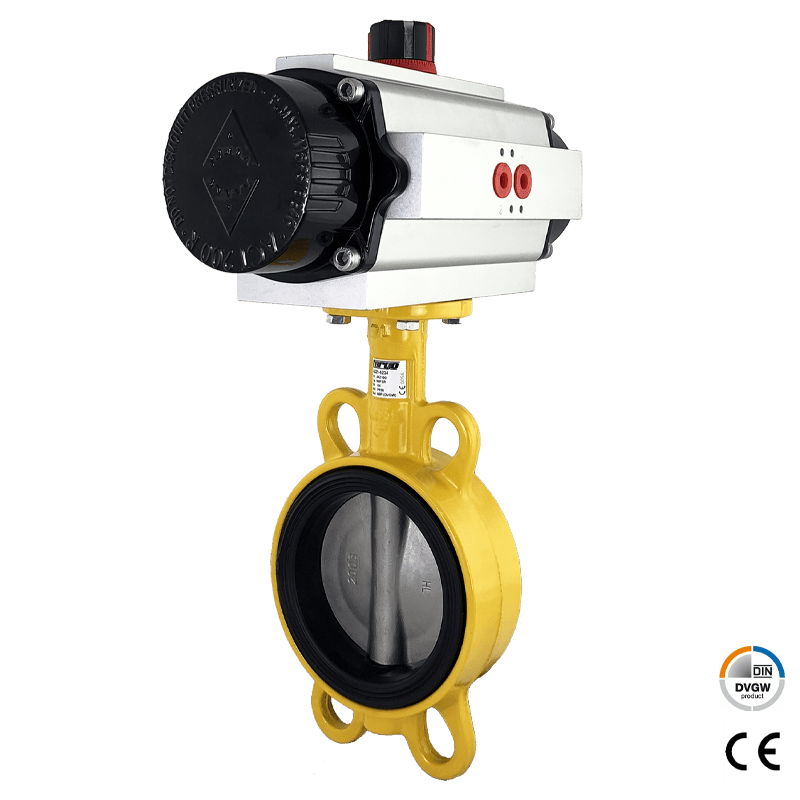

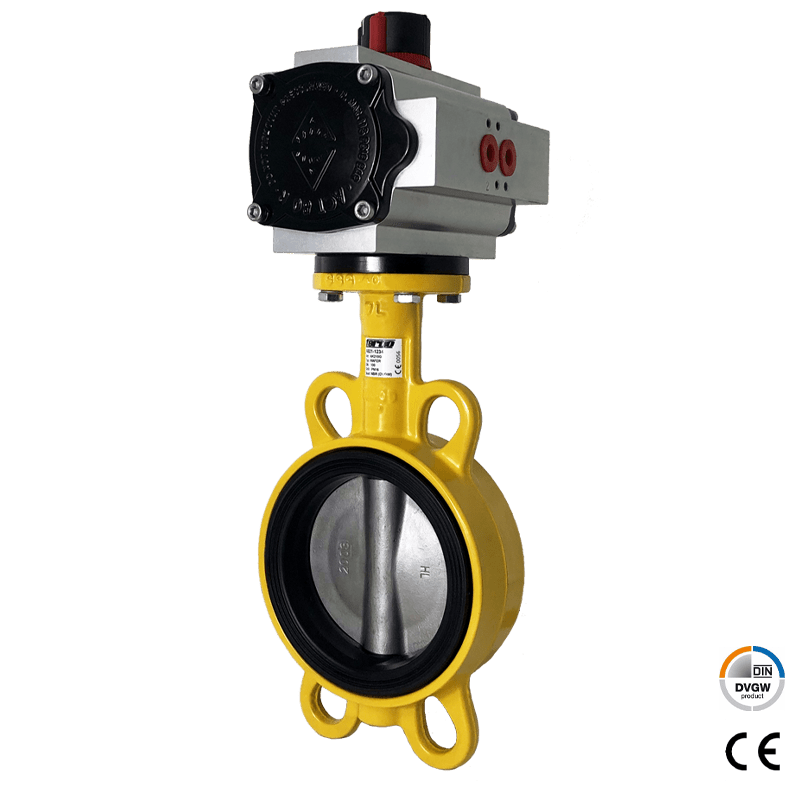

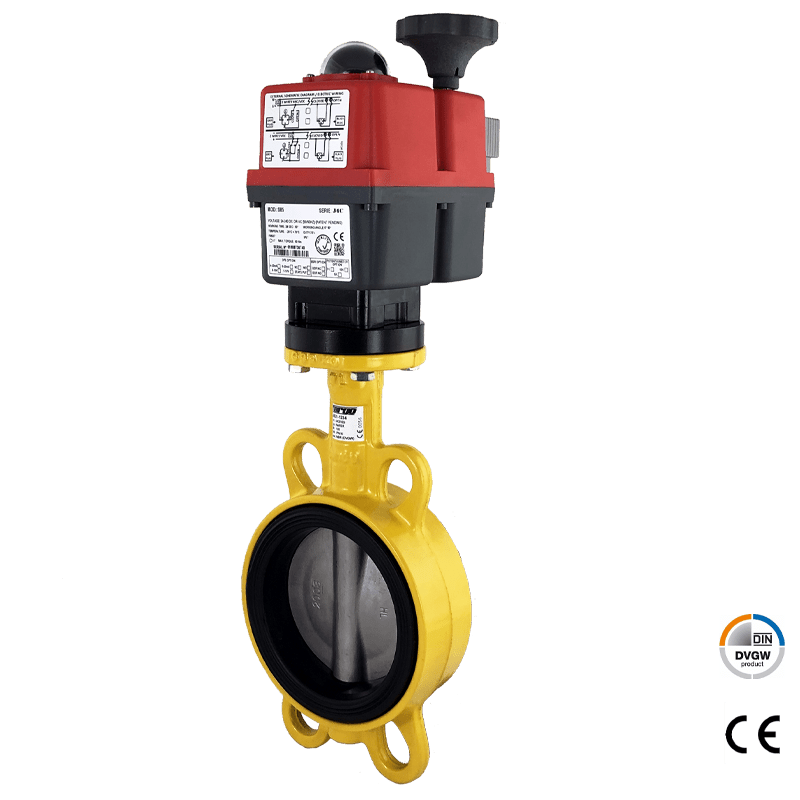

The butterfly valves are available as double-acting and single-acting pneumatic actuators. Fergo offers butterfly valves with electric actuator AC/DC 24V – 230V – 240V – 400V. The standard electric actuator is the latest J4C actuator. The J4C actuator offers more options (battery pack, positioner).
Other actuators are available on request.
Wafer butterfly valve for biogas, natural gas & more – DVGW-certified
Butterfly Valve type AK210G-D2SNLW (Art.-Nr.: 150-1603-xx) DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600
- WAFER type for mounting between flanges PN6/10/16/150lbs
- Top flange ISO 5211
- Concentric design
- Body: GGG40 + Epoxy 120µm
- Disc: CF8M (1.4408)
- Shaft: AISI 420
- Nominal pressure (max.): 16bar
- Seat: NBR (DVGW)
- Temp. (min./max.): -10°C to +90°C

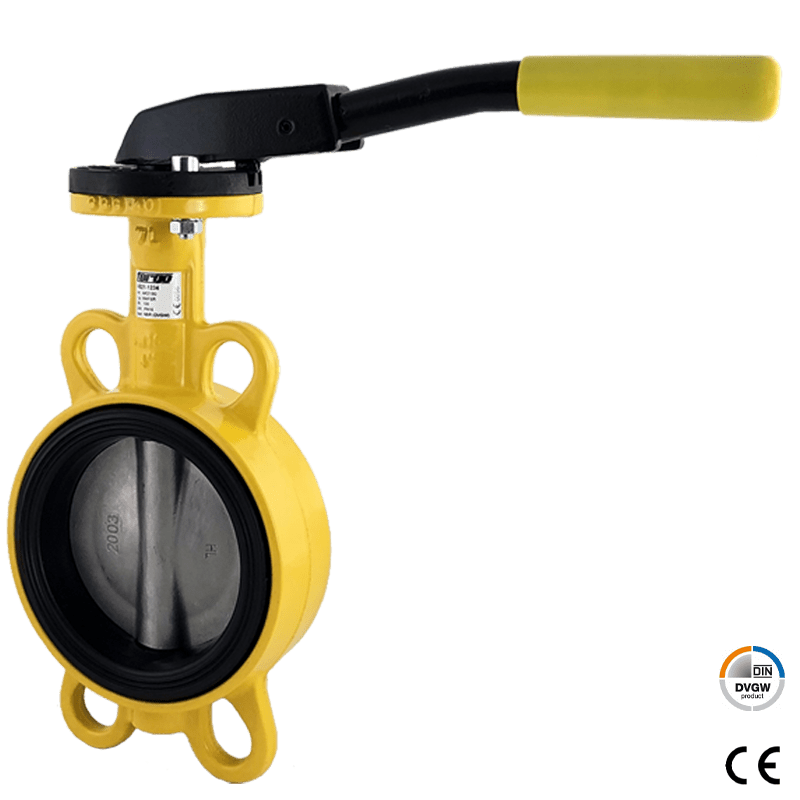

- Operation: hand lever (aluminium), pneumatic & electric actuator
- DVGW GAS acc. to DIN EN 13774
Butterfly Valve type AK210G-D2D2NLW (Art.-Nr.: 150-1613-xx) DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600
- WAFER type for mounting between flanges PN6/10/16/150lbs
- Top flange ISO 5211
- Concentric design
- Body: GGG40 + Epoxy 120µm
- Disc: GGG40 + Resicoat R4, 150µm
- Shaft: AISI 420
- Seat: NBR (DVGW)
- Temp. (min./max.): -10°C to +90°C
- Operation: hand lever (aluminium), pneumatic & electric actuator
- DVGW GAS acc. to DIN EN 13774
Type
Butterfly Valve
Operations
Electric Actuator, Pneumatic double-acting, Pneumatic single-acting, Lever, Topflange (ISO 5211), Gearbox with Handwheel, Regulation Lever
Sizes
DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300
Flange connection
PN6, PN10, PN16, ANSI 150
Face-to-face
DIN EN 558-1 Line 20
Body material
GJS400
Butterfly Disc
GJS400, CF8M (1.4408)
Disc sealing
NBR
Pressure range
PN10, PN16
