Wafer butterfly Valve type AK210

Wafer-type butterfly valve with customisation options

Wafer-type butterfly valve with actuator

The new AK210 is a concentric butterfly valve for the highest demands because it can be converted nearly completely. Each AK210 is mounted complying with your request, with exactly the materials you need for your operation. Besides the standard body and valve materials, the AK210 is also available in bronze, aluminium, and Hastelloy. The valve seal, the so-called seat ring, is available in NBR, EPDM, and Viton, but also in silicone, Hypalon and many other materials. Our AK210 has DVGW Gas (AK210G) and DVGW drinking water (AK210W) certification. All valves of the FERGO Armaturen GmbH are very easy to automate due to the standard top-mounting flange (ISO5211); we can do this for you, too. The AK210 is deliverable as lug-version, too, it is called AK211 then. The AK210 and the AK211 can be perfectly aligned with your application.

In addition to the normal EPDM, NBR, and Viton seats, our AK210 can also be ordered with different food-grade seats, high-temperature/low-temperature seats, silicon, Flucast, Hypalon, Butyl, and many more. ATEX is also available at request.

Please ask our sales department which combination is ideal for you – this is of course non-binding and without any charge.

Butterfly Valve type AK210-D2SEXW (Art.-Nr.: 150-1600-xx) DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600

  • WAFER type for mounting between flanges PN6/10/16/150lbs
  • Top flange ISO 5211
  • Concentric design
  • Body: GGG40 + Epoxy 120µm
  • Disc: CF8M (1.4408)
  • Shaft: AISI 420
  • Seat: EPDM
  • Temp. (min./max.): -20°C to +110°C

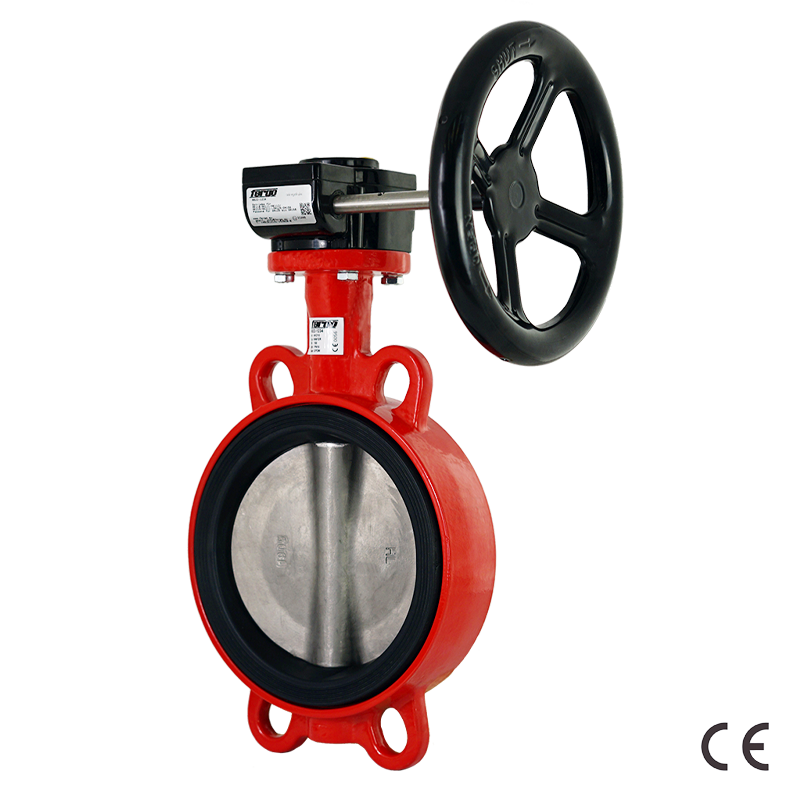

  • Actuation: Handlever, gearbox, pneumatic & electric actuator
  • Accessories and options: Limit switch box, Solenoid/pilot valve, Positioner, Shaft extension

Butterfly Valve type AK210-D2SELW (Art.-Nr.: 150-1601-xx) DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600

  • WAFER type for mounting between flanges PN6/10/16/150lbs
  • Top flange ISO 5211
  • Concentric design
  • Body: GGG40 + Epoxy 120µm
  • Disc: CF8M (1.4408)
  • Shaft: AISI 420
  • Seat: EPDM
  • Temp. (min./max.): -20°C to +110°C
  • Actuation: Handlever, gearbox, pneumatic & electric actuator
  • Accessories and options: Limit switch box, Solenoid/pilot valve, Positioner, Shaft extension

Butterfly Valve type AK210-D2SVLW (Art.-Nr.: 150-1609-xx) DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600

  • WAFER type for mounting between flanges PN6/10/16/150lbs
  • Top flange ISO 5211
  • Concentric design
  • Body: GGG40 + Epoxy 120µm
  • Disc: CF8M (1.4408)
  • Shaft: AISI 420
  • Seat: VITON
  • Temp. (min./max.): -15°C to +190°C
  • Actuation: Handlever, gearbox, pneumatic & electric actuator
  • Accessories and options: Limit switch box, Solenoid/pilot valve, Positioner, Shaft extension

Type

Butterfly Valve

Operations

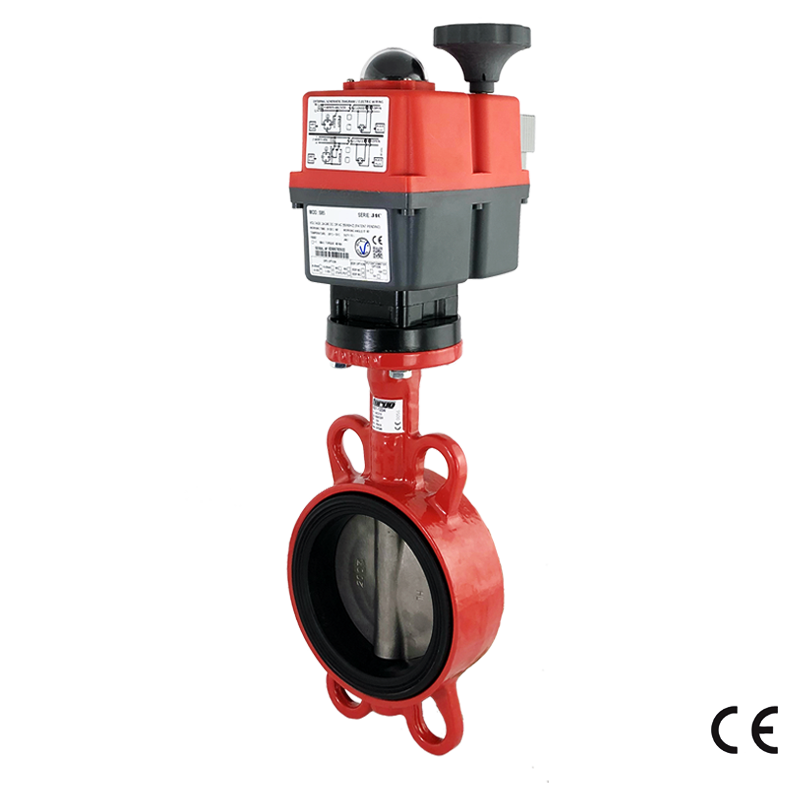

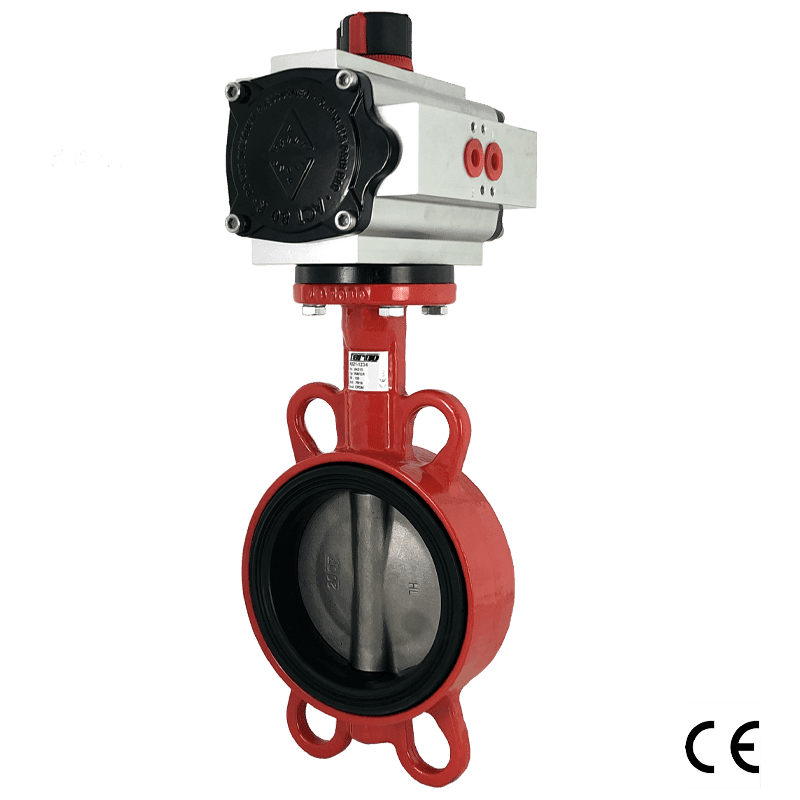

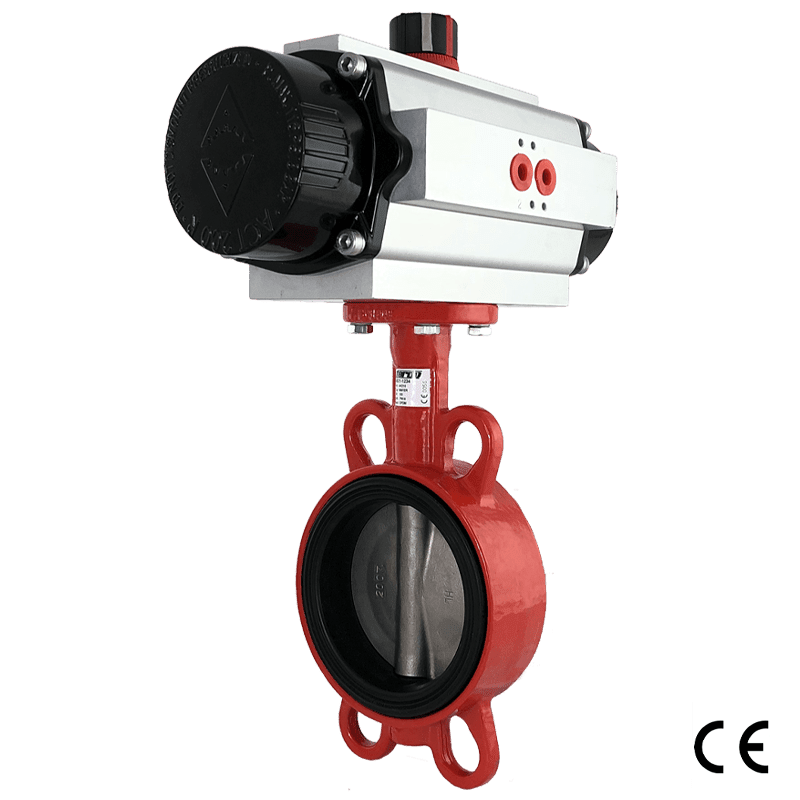

Electric Actuator, Pneumatic double-acting, Pneumatic single-acting, Lever, Topflange (ISO 5211), Gearbox with Handwheel, Regulation Lever

Sizes

DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600, DN700, DN750, DN800, DN900, DN1000, DN1100, DN1200

Flange connection

PN6, PN10, PN16, ANSI 150

Face-to-face

DIN EN 558-1 Line 20

Body material

GJS400, WCB (1.0619), CF8M (1.4408), Bronze, Aluminium

Butterfly Disc

GJS400, WCB (1.0619), CF8M (1.4408), Alubronze, Hastelloy C

Disc sealing

EPDM, NBR, Viton (FPM), Viton Bio, Silicone, Hypalone

Pressure range

PN10, PN16
