FERGO Armaturen GmbH has a wide variety of different ball valves. These ball valves mainly differ in connection form, body material, maximum pressure approval and the available certificates (TA Luft, FireSafe, DVGW Gas, DVGW Trinkwasser). You can choose between flange-connection (DIN or ANSI), threaded ends (DIN or ANSI and female or male thread) and socket weld or butt weld ends. The available standard body materials are brass, steel and stainless steel. Special materials like e.g. titan and duplex are also available on request. Ball valves with ISO-top mounting flange (ISO 5211) can be automated with pneumatic or electric actuators. The different sizes, pressure stages and materials are shown on the datasheet, which can be downloaded on our website. For special executions please contact our sales department.

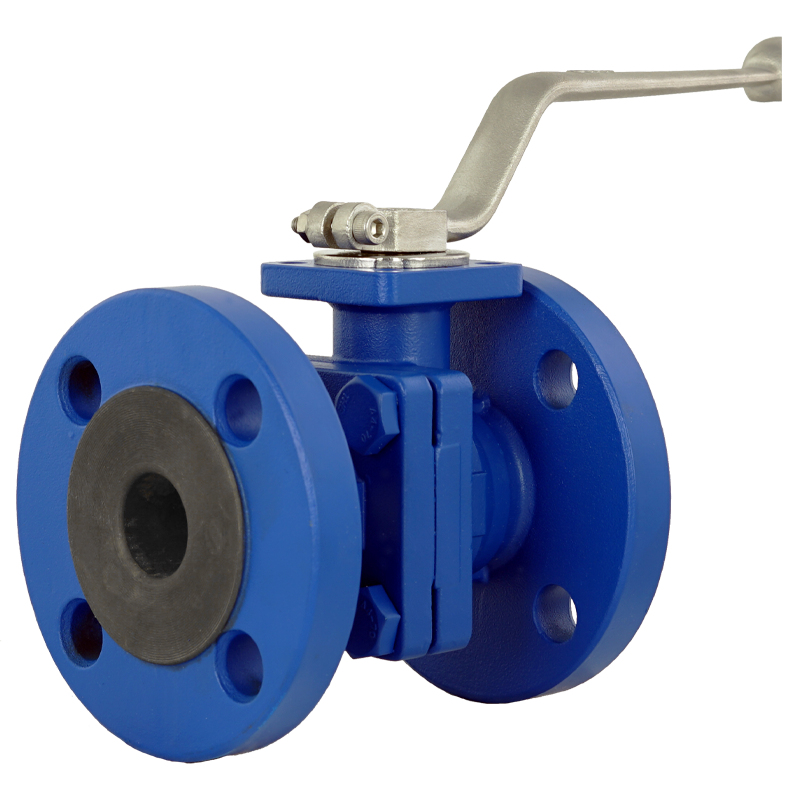

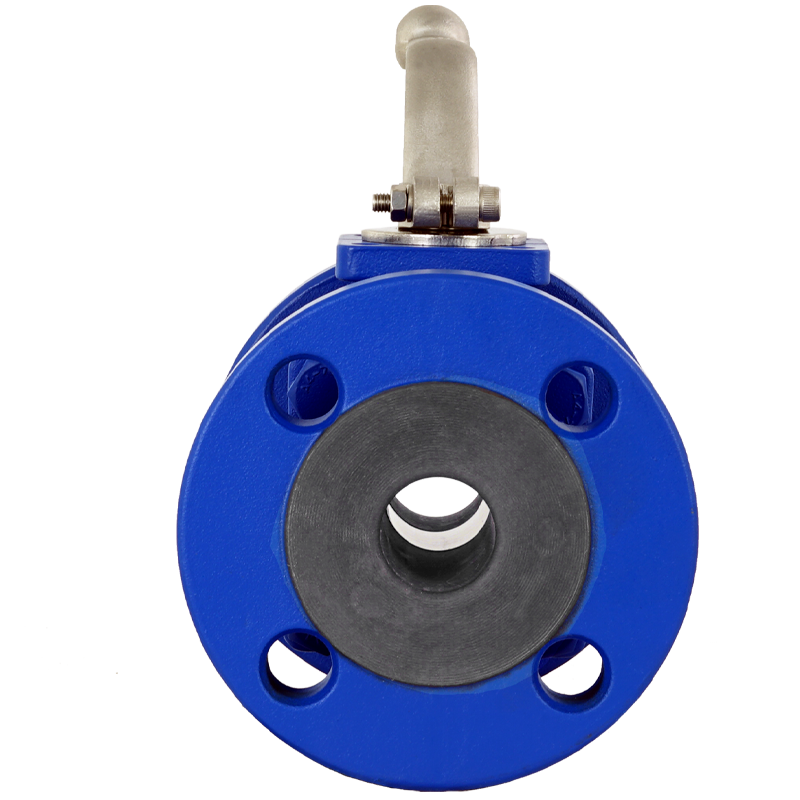

Ball valve KH122-LSTHF (Art.-Nr.: 100-1040-xx)
- DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200
- Face to face according R27
- Flanges acc. to DIN PN16
- 2- piece body
- Body: carbon steel (1.0619)
- Ball: stainless steel (1.4408)
- Ball seat: PTFE + Glas fibre
- Direct mounting actuator ISO 5211
- Max. working pressure: 16 bar
- Working temperature: –20°C to +180°C
- Certificate: TA Air, CE
- Operation: Handlever
Type
Ball Valve
Operations
Electric Actuator, Pneumatic double-acting, Pneumatic single-acting, Lever, Topflange (ISO 5211)
Sizes
DN15, DN20, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200
Flange connection
PN10, PN16
Face-to-face
DIN EN 558-1 Line 14, DIN EN 558 Line 27
Body material
1.0619
Pressure range
PN40, PN16
Ball material
1.4408
Ball seat
PTFE, PTFE+Glasfibre, PTFE+TFM, Antimony-carbon, PEEK, PTFE cavity filler, FKM+PTFE+Graphite
Connection
Flanges
Certifications
TA-Luft, PED, FireSafe
