Lug-type butterfly valve gas type AK211G

DVGW-Gas certified lug-type butterfly valve

Lug-type butterfly valves for gas: DVGW certified

The AK211G is a concentric butterfly valve that is designed for gas applications. The body is made of epoxy-coated GGG40, the disc is made of stainless steel 1.4408 (CF8M) or GGG40 (EN GJS 400-15) and the seat ring is made of NBR. This butterfly valve is certified according to DVGW-Gas and is suitable for fuel gas according to G 260 (-20°C to max. +60°C). All valves of the FERGO Armaturen GmbH are very easy to automate due to the standard top-mounting flange (ISO5211); we can do this for you, too. The AK211G is also deliverable as a wafer type, it is called AK210G then.

Butterfly Valve type AK211G-D2SNLL (Art.-Nr.: 150-1623-xx) DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600

  • LUG type for mounting between flanges PN10
  • Top flange ISO 5211
  • Concentric design
  • Body: GGG40 + Epoxy 120µm
  • Disc: CF8M (1.4408)
  • Shaft: AISI 420
  • Seat: NBR (DVGW)
  • Temp. (min./max.): -10°C to +90°C

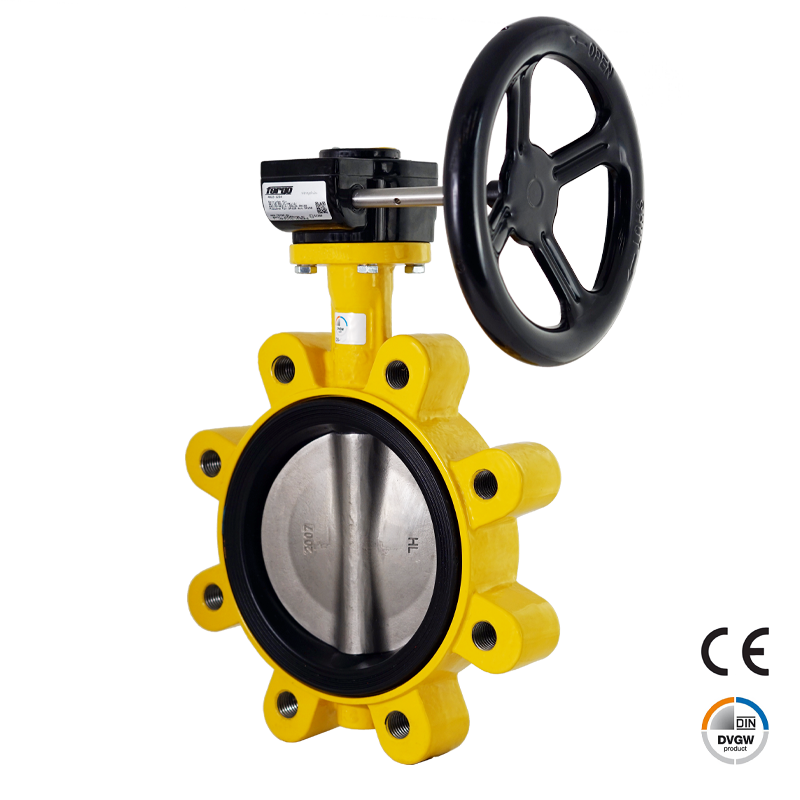

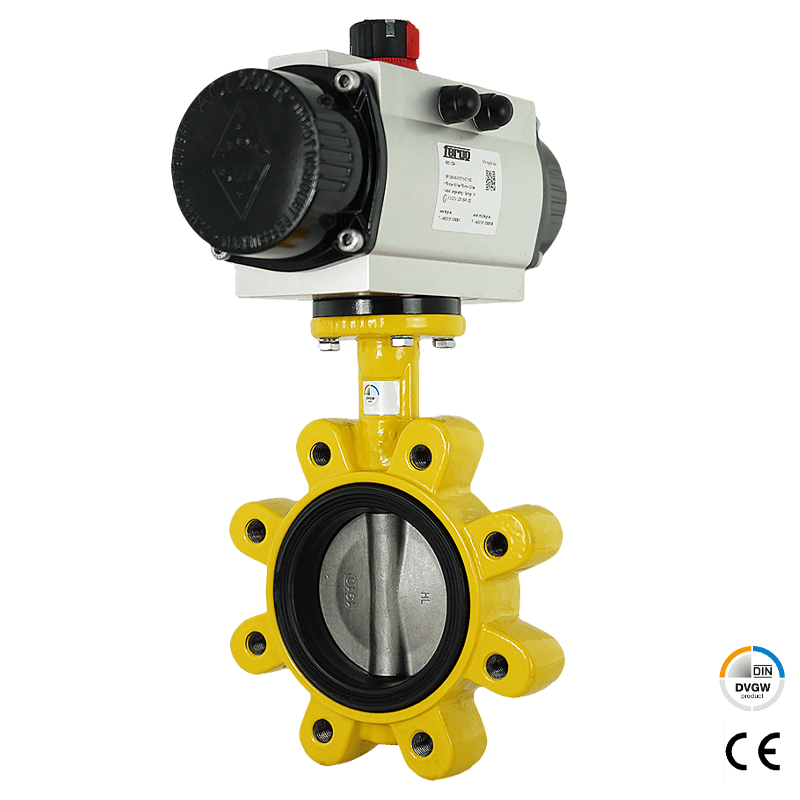

  • Operation: hand lever, gearbox, pneumatic & electric actuator
  • Accessories and options: Limit switch box, Solenoid/pilot valve, Positioner, stem extension
  • DVGW GAS acc. to DIN EN 13774

Butterfly Valve type AK211G-D2SNLL (150-1643-xx) DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600

  • LUG type for mounting between flanges PN16
  • Top flange ISO 5211
  • Concentric design
  • Body: GGG40 + Epoxy 120µm
  • Disc: CF8M (1.4408)
  • Shaft: AISI 420
  • Seat: NBR (DVGW)
  • Temp. (min./max.): -10°C to +90°C
  • Operation: hand lever, gearbox, pneumatic & electric actuator
  • Accessories and options: Limit switch box, Solenoid/pilot valve, Positioner, stem extension
  • DVGW GAS acc. to DIN EN 13774

Butterfly Valve type AK211G-D2D2NLL (Art.-Nr.: 150-1633-xx) DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600

  • LUG type for mounting between flanges PN10
  • Top flange ISO 5211
  • Concentric design
  • Body: GGG40 + Epoxy 120µm
  • Disc: GGG40 + Resicoat R4, 150µm
  • Shaft: AISI 420
  • Seat: NBR (DVGW)
  • Temp. (min./max.): -10°C to +90°C
  • Operation: regulation lever (aluminium), pneumatic & electric actuator
  • DVGW GAS acc. to DIN EN 13774

Butterfly Valve type AK211G-D2D2NLL (Art.-Nr.: 150-1653-xx) DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600

  • LUG type for mounting between flanges PN16
  • Top flange ISO 5211
  • Concentric design
  • Body: GGG40 + Epoxy 120µm
  • Disc: GGG40 + Resicoat R4, 150µm
  • Shaft: AISI 420
  • Seat: NBR (DVGW)
  • Temp. (min./max.): -10°C to +90°C
  • Operation: regulation lever (aluminium), pneumatic & electric actuator
  • DVGW GAS acc. to DIN EN 13774

Type

Butterfly Valve

Operations

Electric Actuator, Pneumatic double-acting, Pneumatic single-acting, Lever, Topflange (ISO 5211), Gearbox with Handwheel, Regulation Lever

Sizes

DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300

Flange connection

PN10, PN16

Face-to-face

DIN EN 558-1 Line 20

Body material

GJS400

Butterfly Disc

GJS400, CF8M (1.4408)

Disc sealing

NBR

Pressure range

PN10, PN16
