J4C Electric Actuator: 90 Degree turn
Ideal for valves with small nominal sizes: The part-turn actuators J2, J3, J3C (old model series), and J4C – our new series with brushless motor for an even longer lifespan. They are available in different torque ratings and additionally variously expandable. In the field of actuator technology, FERGO works together with all well-known manufacturers. We design the actuators according to your instructions, mount them onto the valve, and adjust them before sending them to you – Plug-and-Play! Please get in touch with our sales department to get further information about the various possibilities of electric actuators.

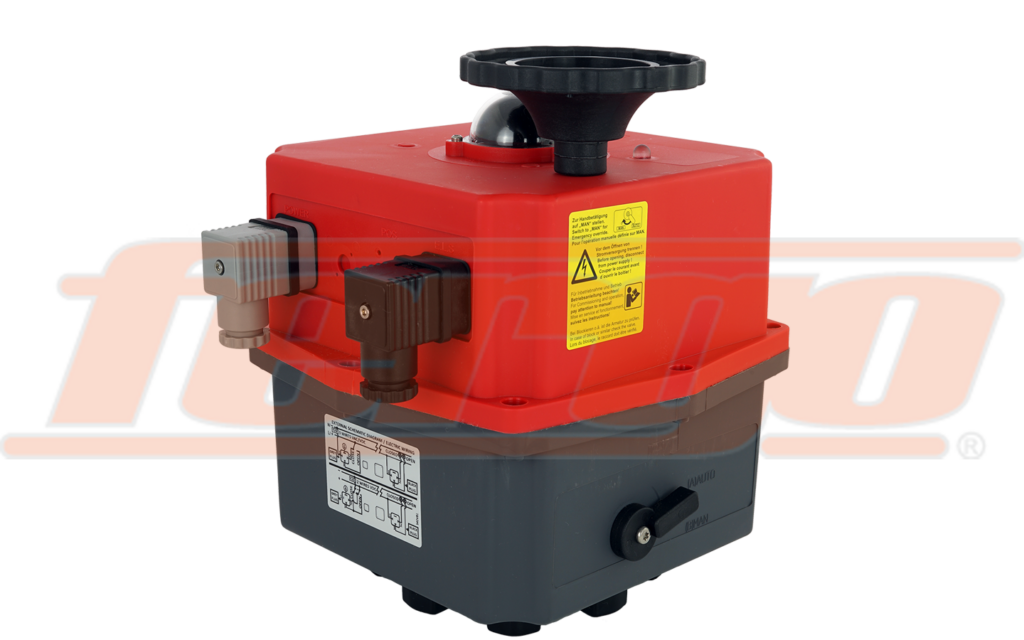

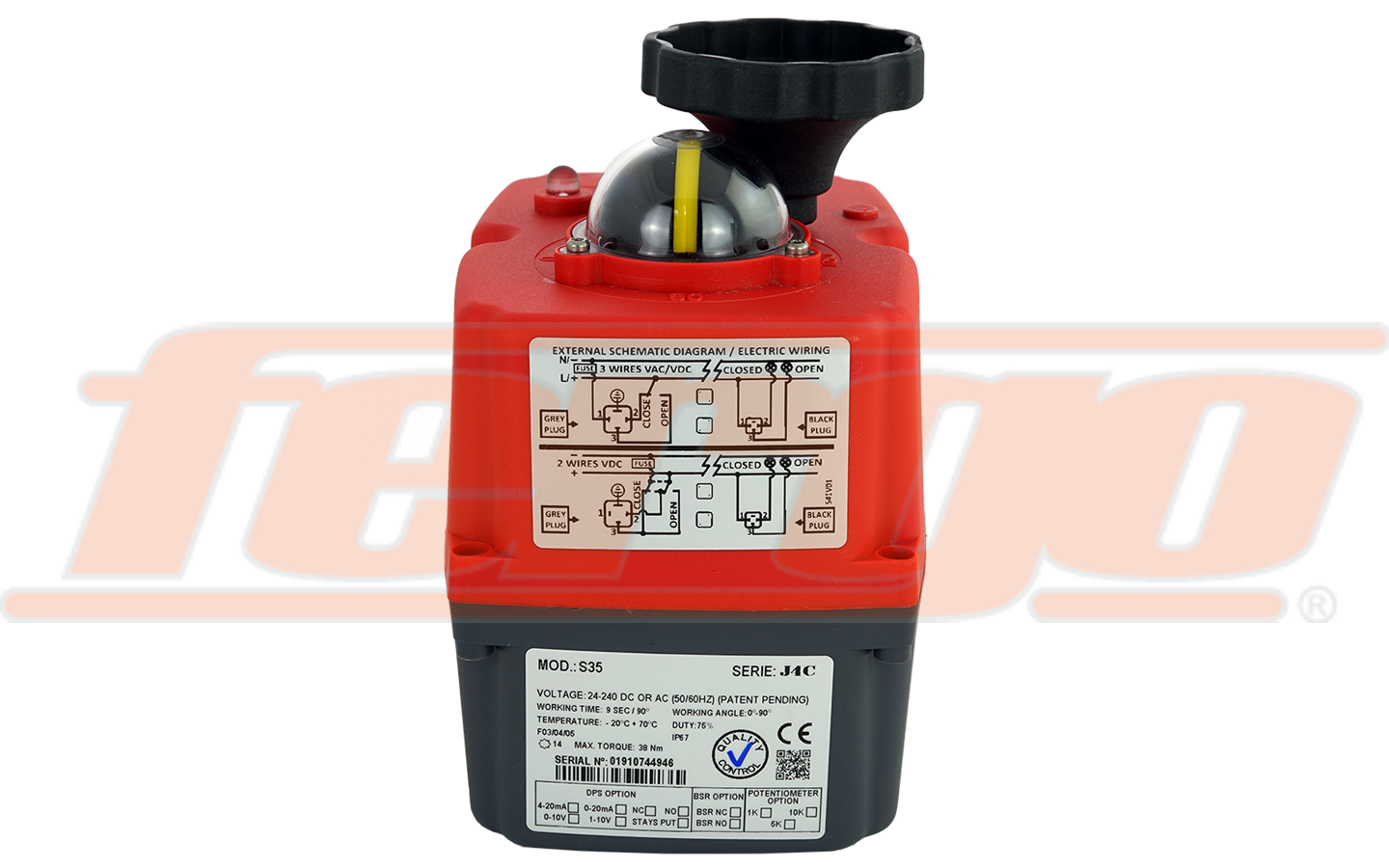

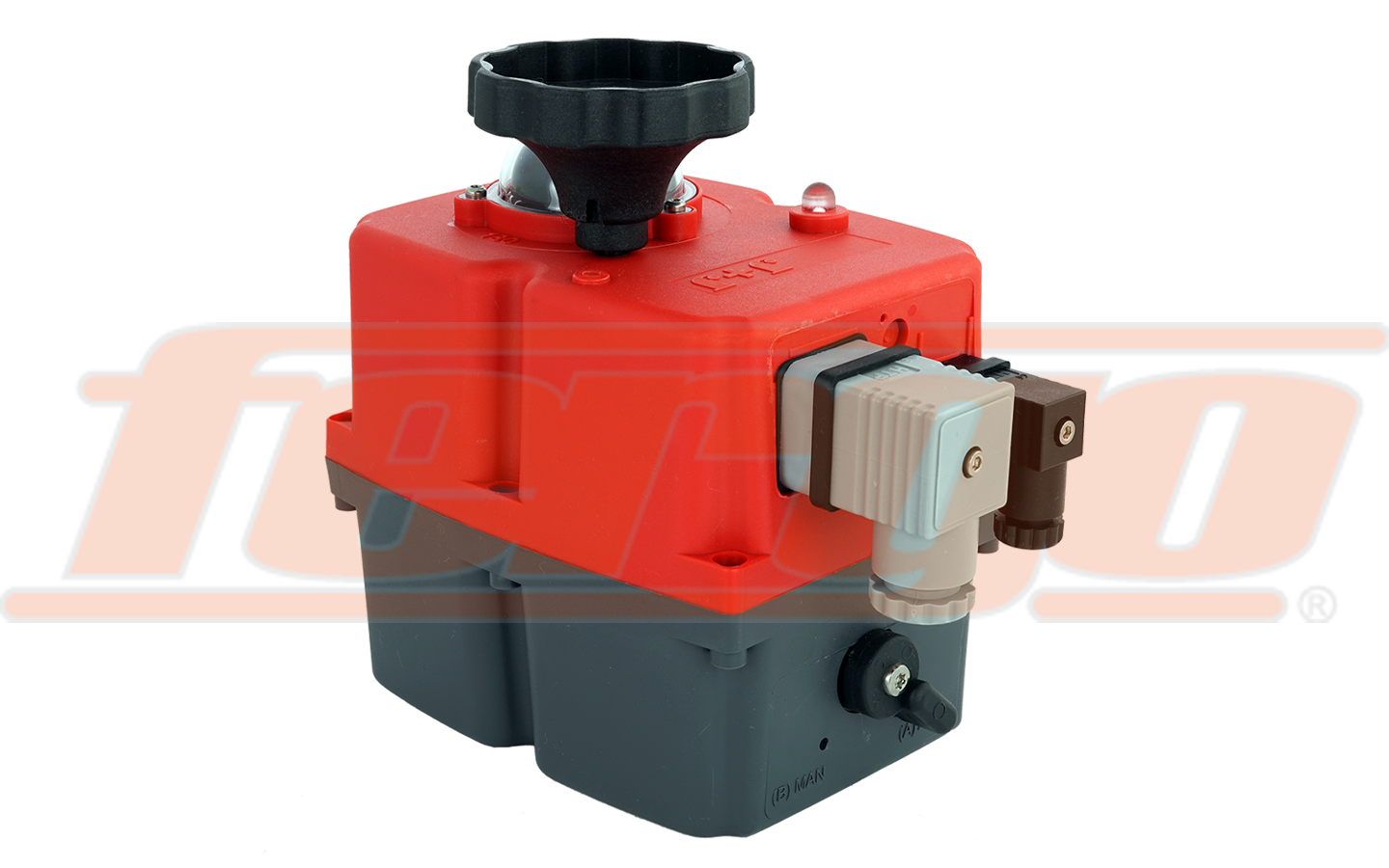

Actuator FG-J4C standard

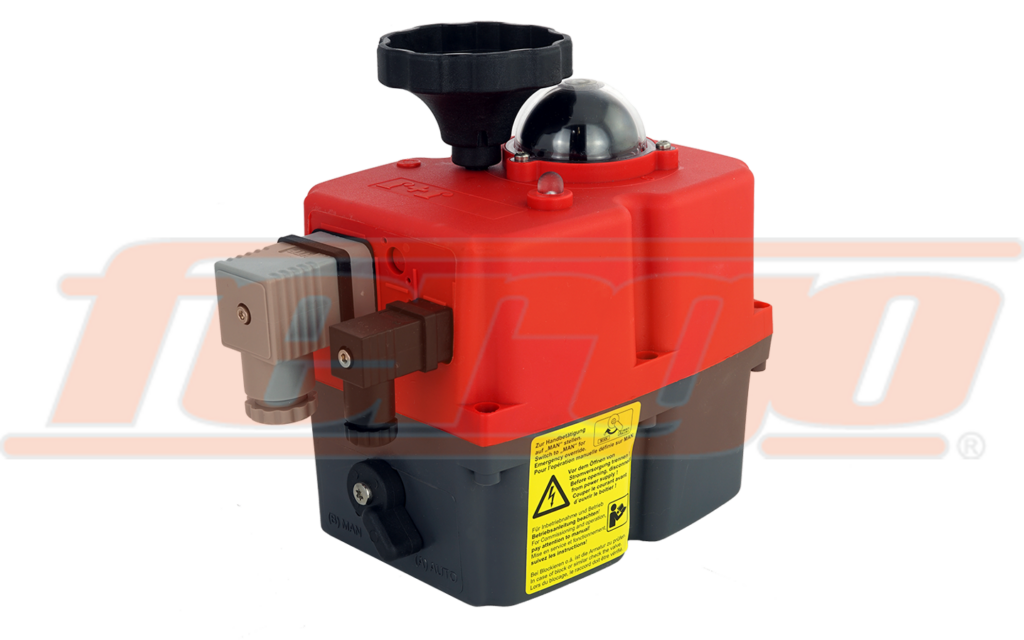

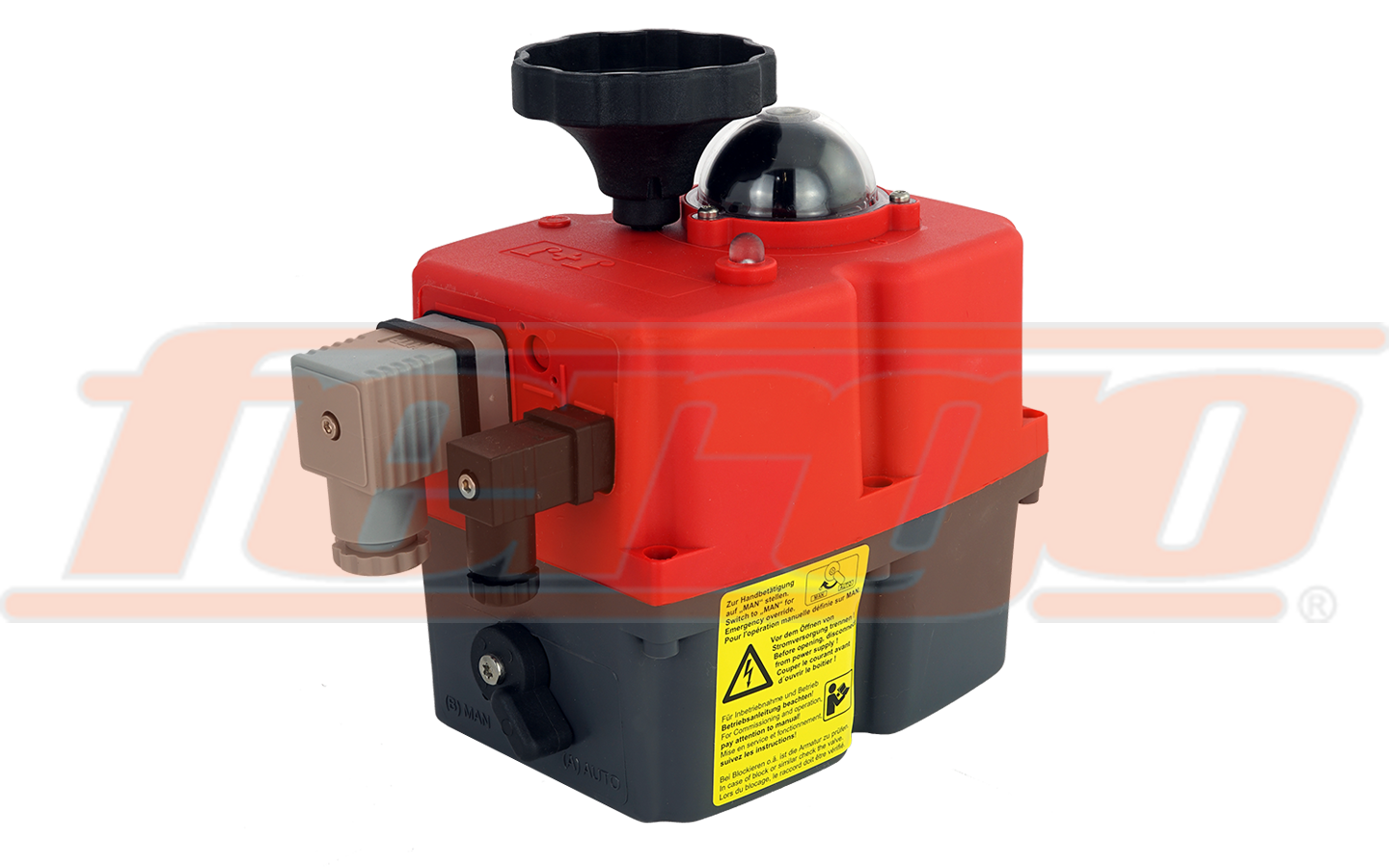

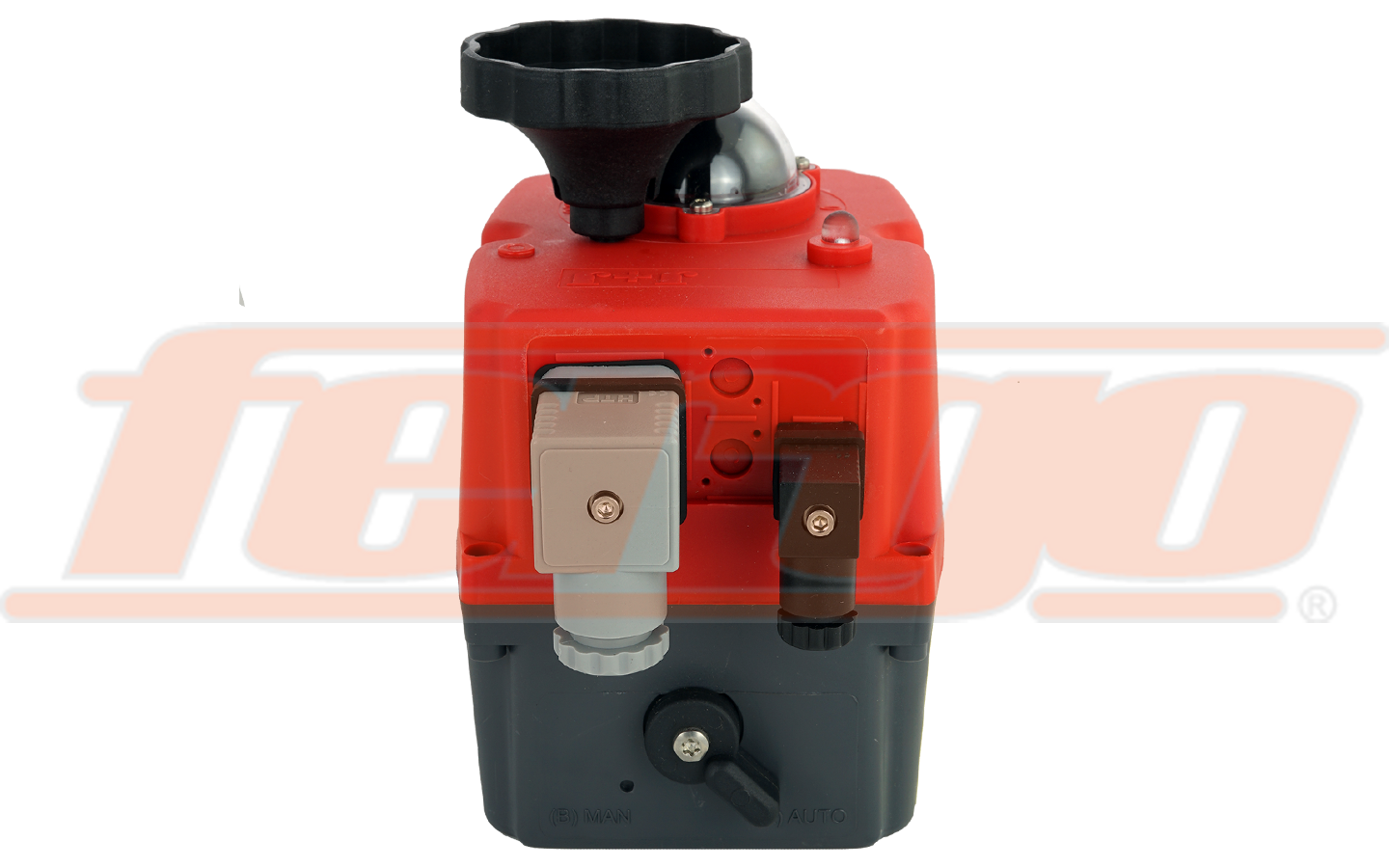

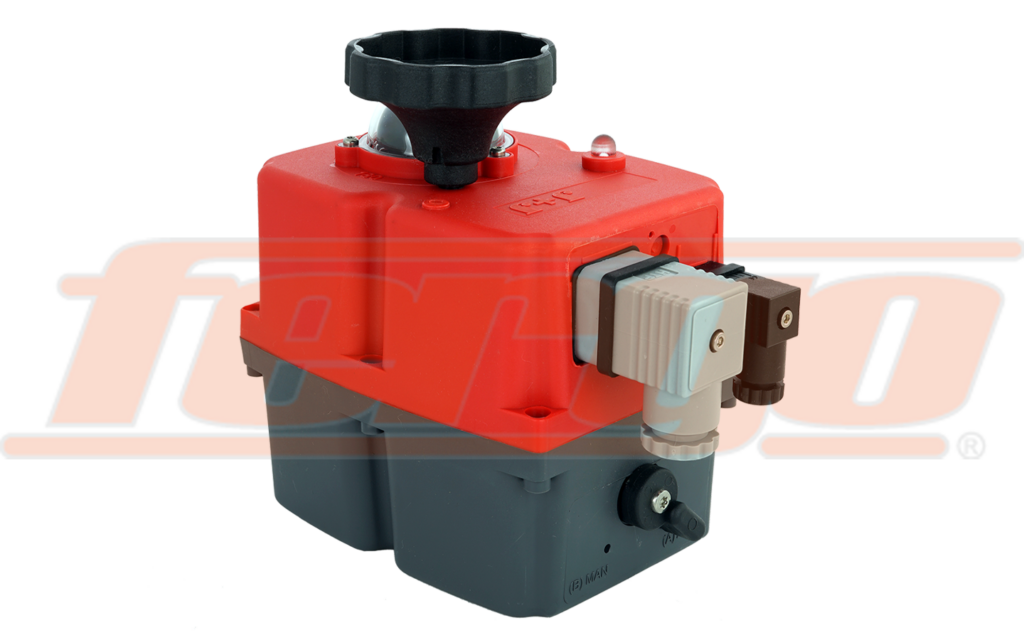

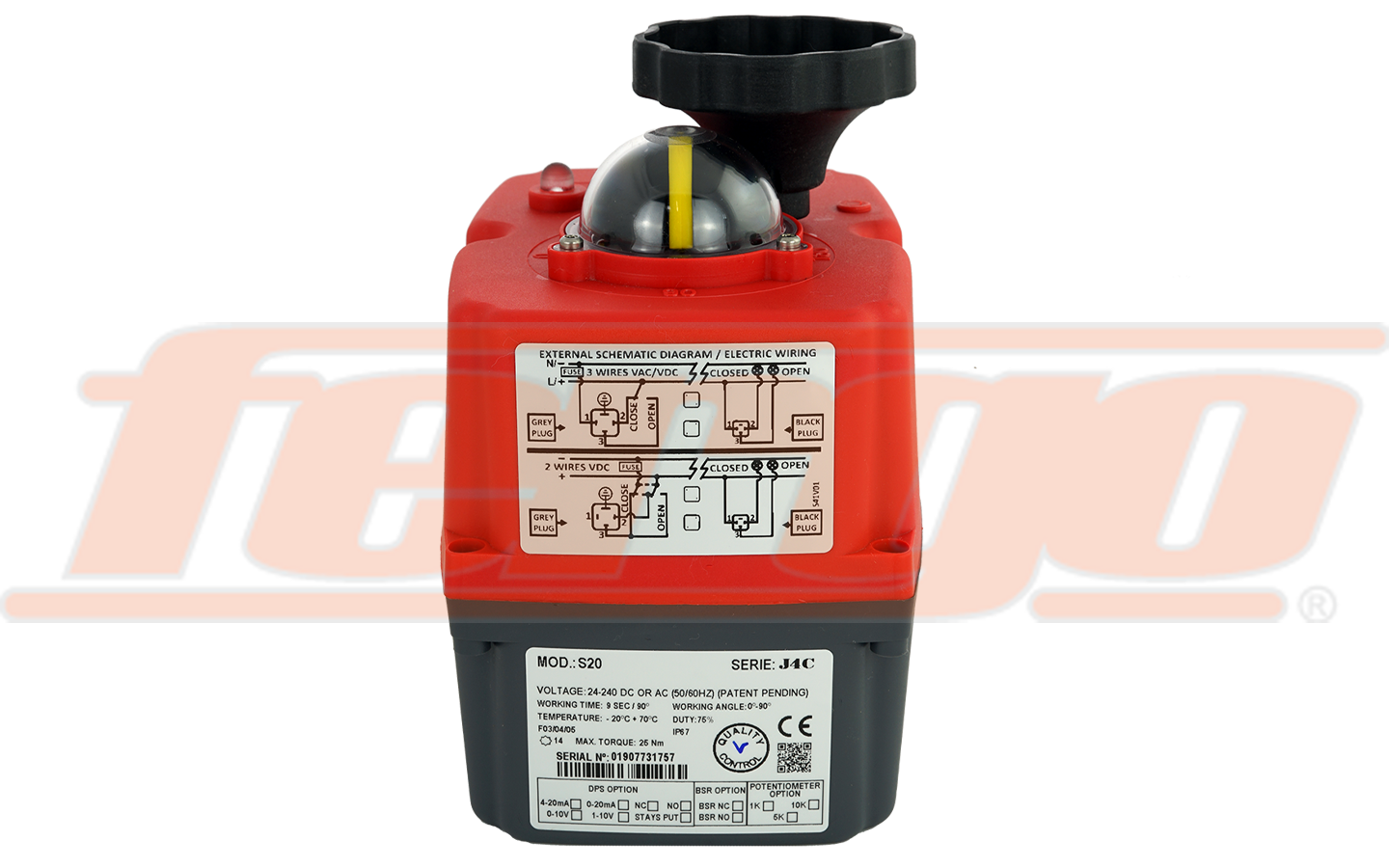

Electric part-turn actuator Type: FG-J4C-S20 (Art.-Nr.: 425-1240)
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,16A – 1,28A
- Runtime (90°): 9s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 25Nm
- Working torque: 20Nm
- Ambient temperature: -20°C to +70°C
- Flange: F03/F04/F05
- Square (Star): 14mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater

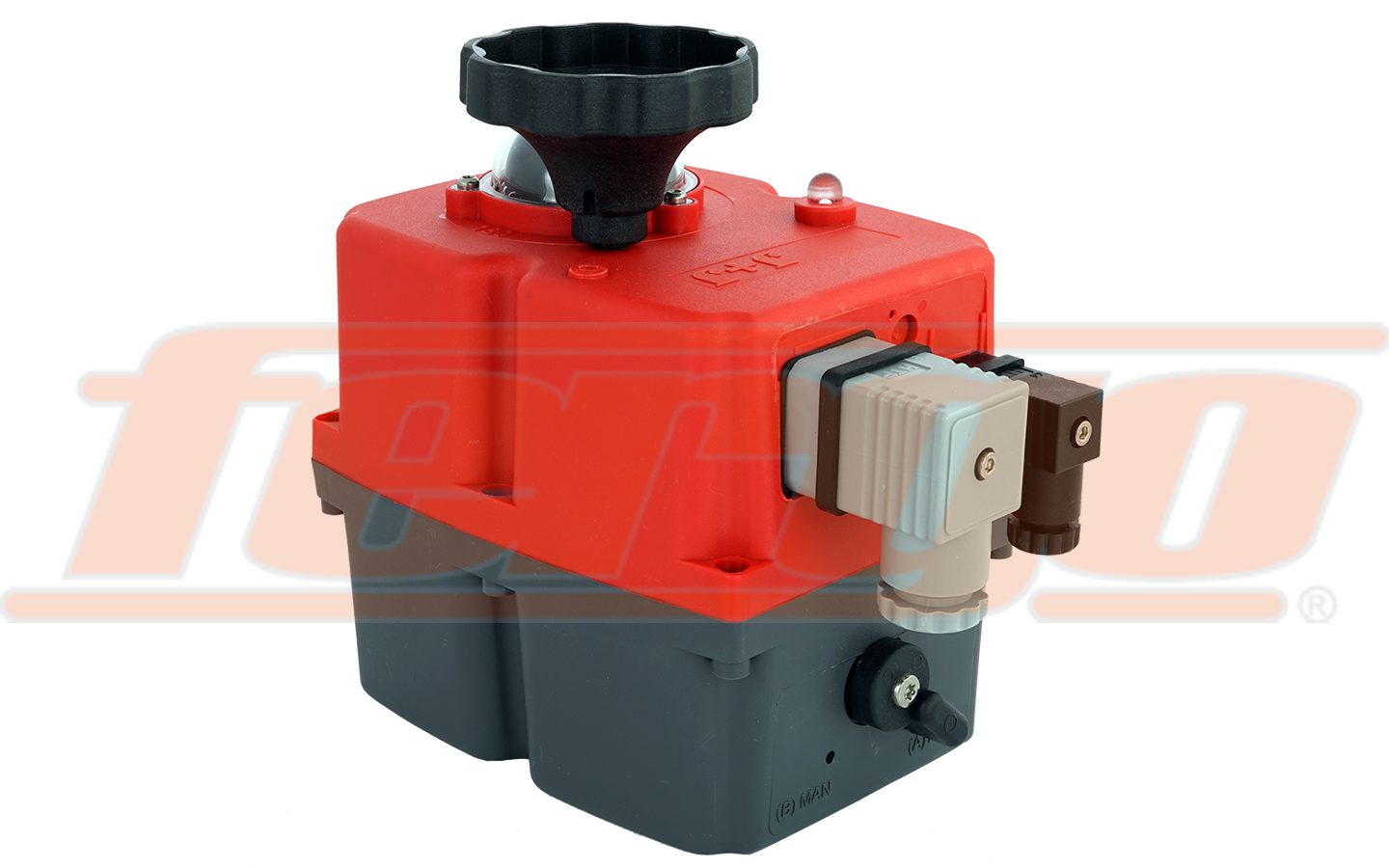

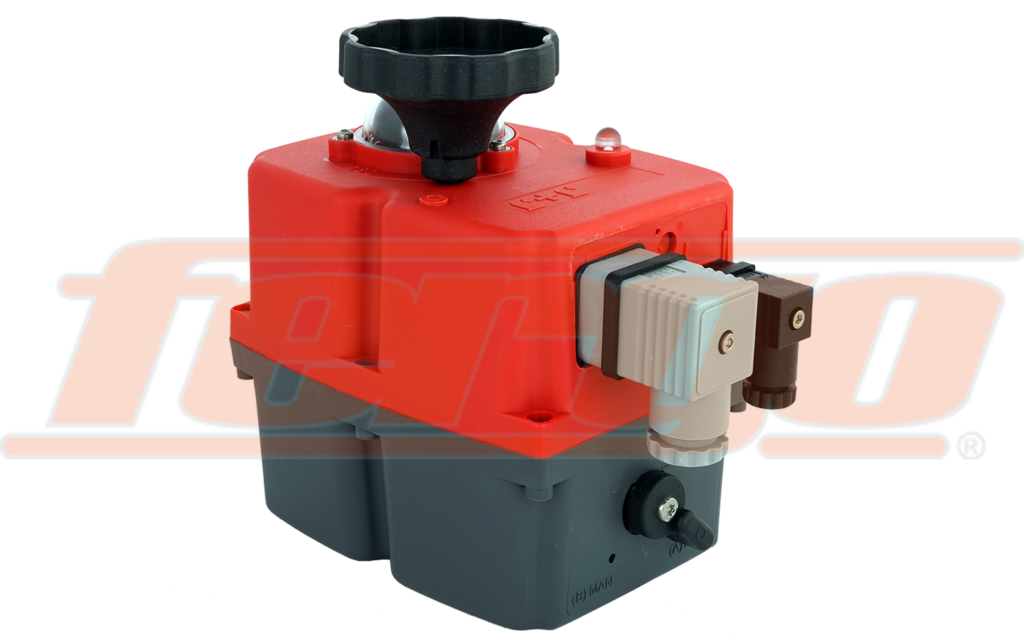

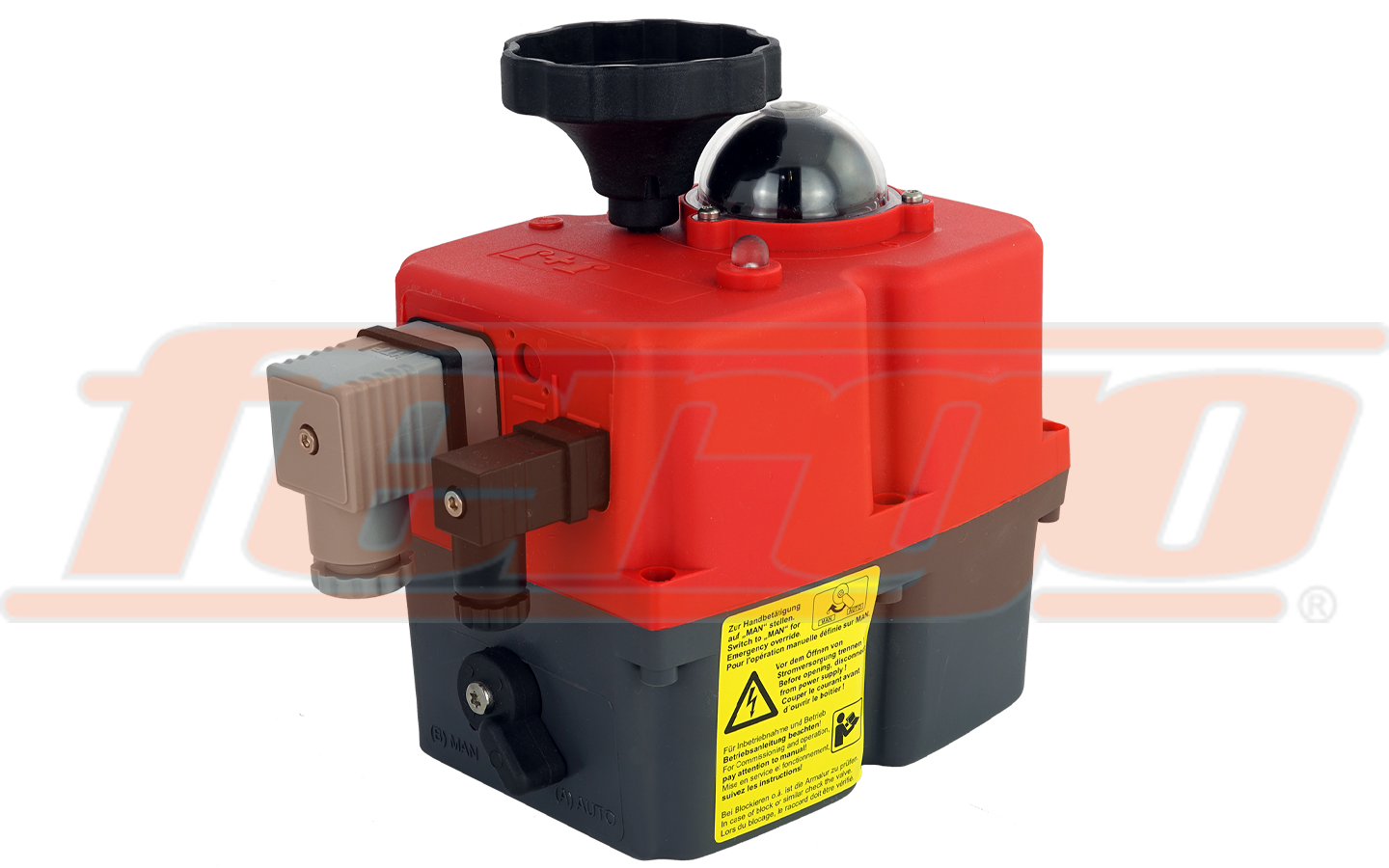

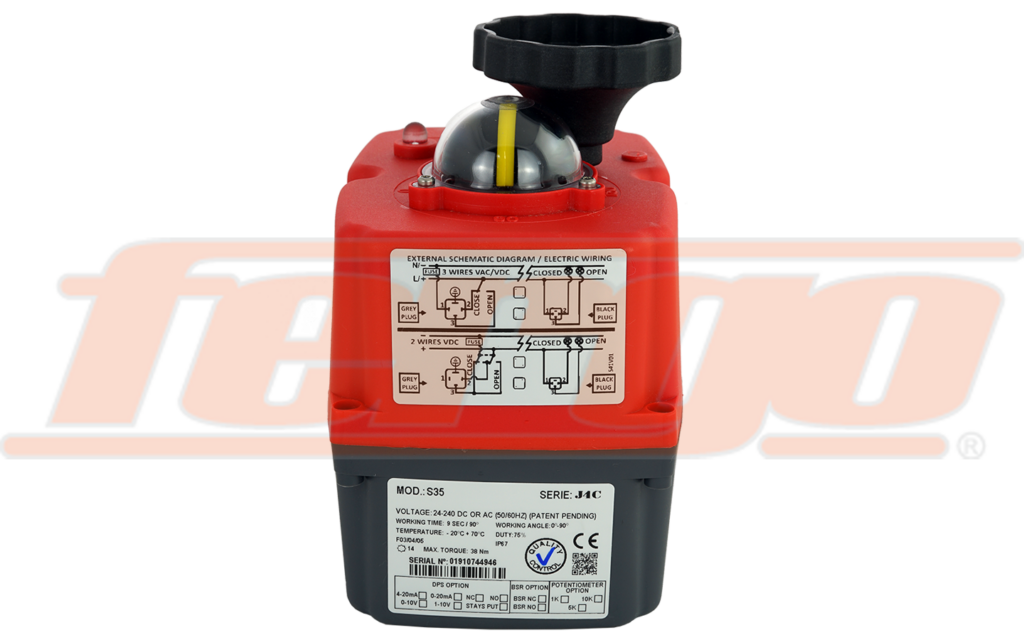

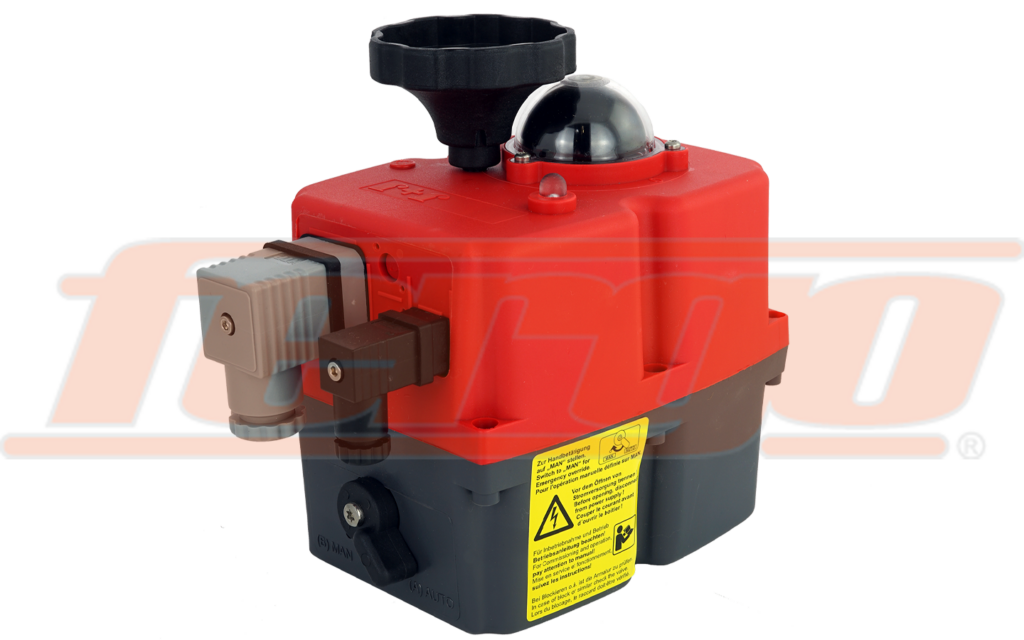

Electric part-turn actuator Type: FG-J4C-S35 (Art.-Nr.: 425-1250)
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,20A – 1,67A
- Runtime (90°): 9s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 38Nm
- Working torque: 35Nm
- Ambient temperature: -20°C to +70°C
- Flange: F03/F04/F05
- Square (Star): 14mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater

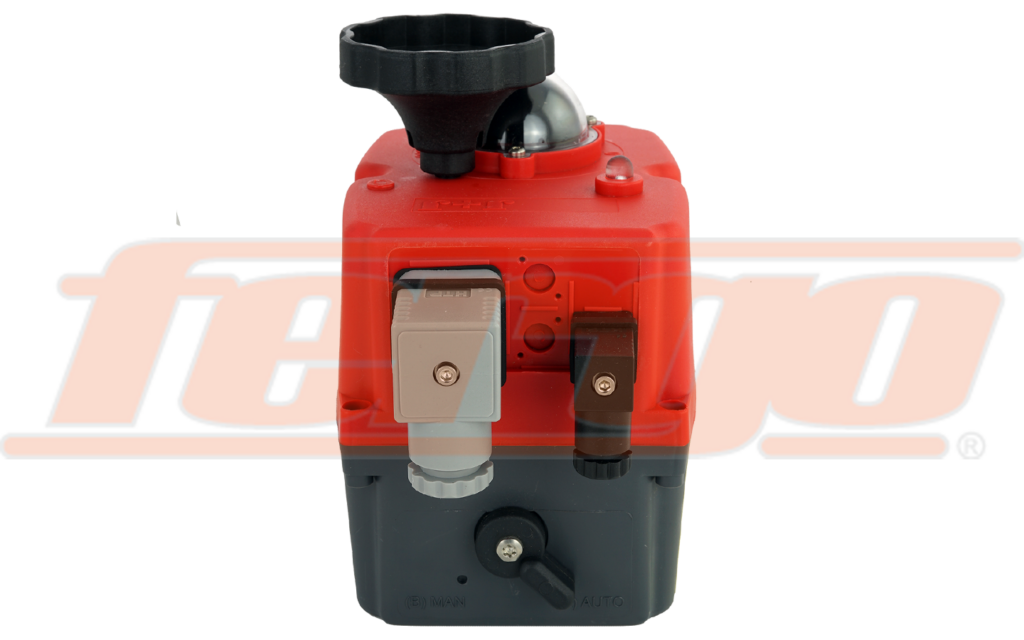

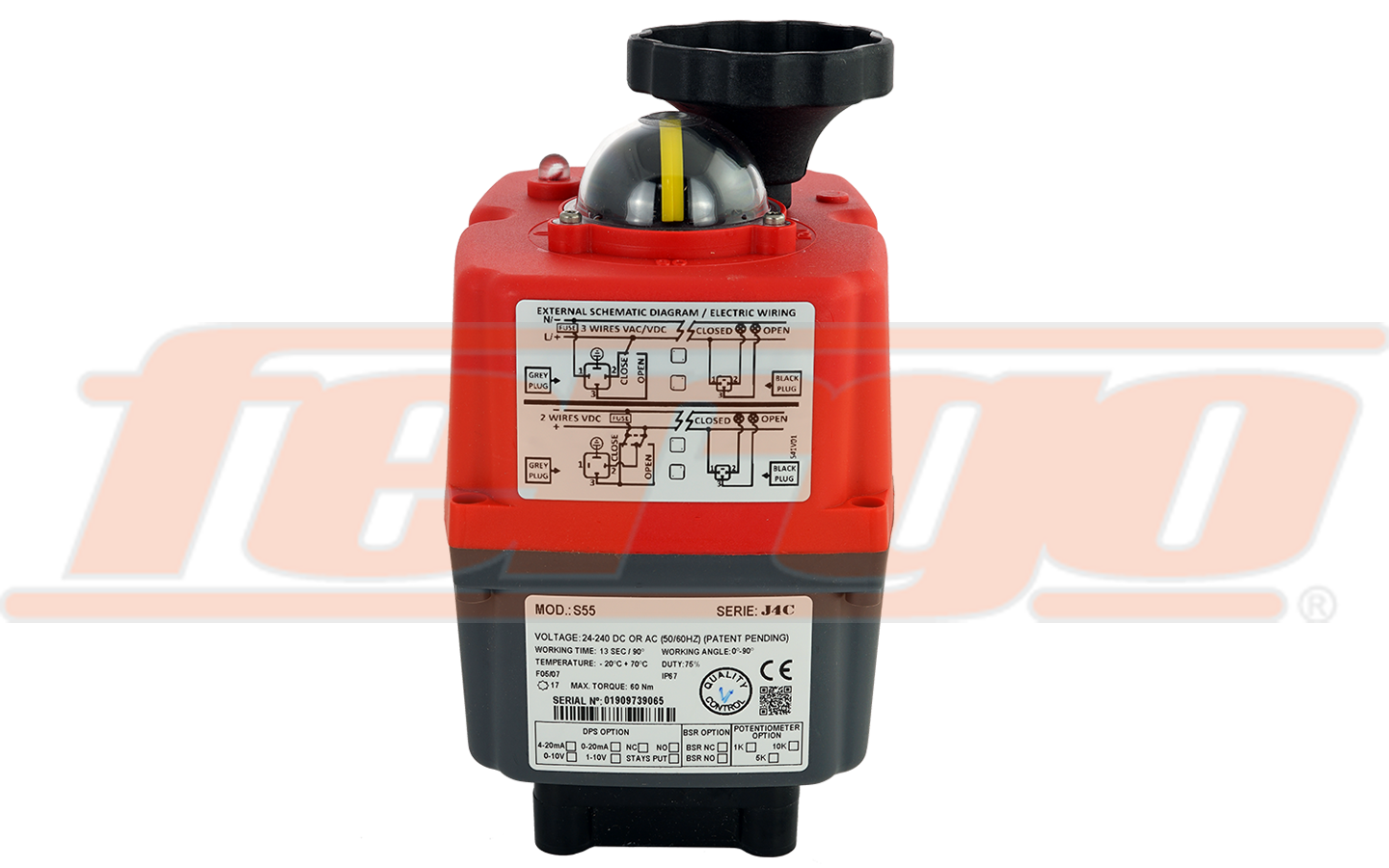

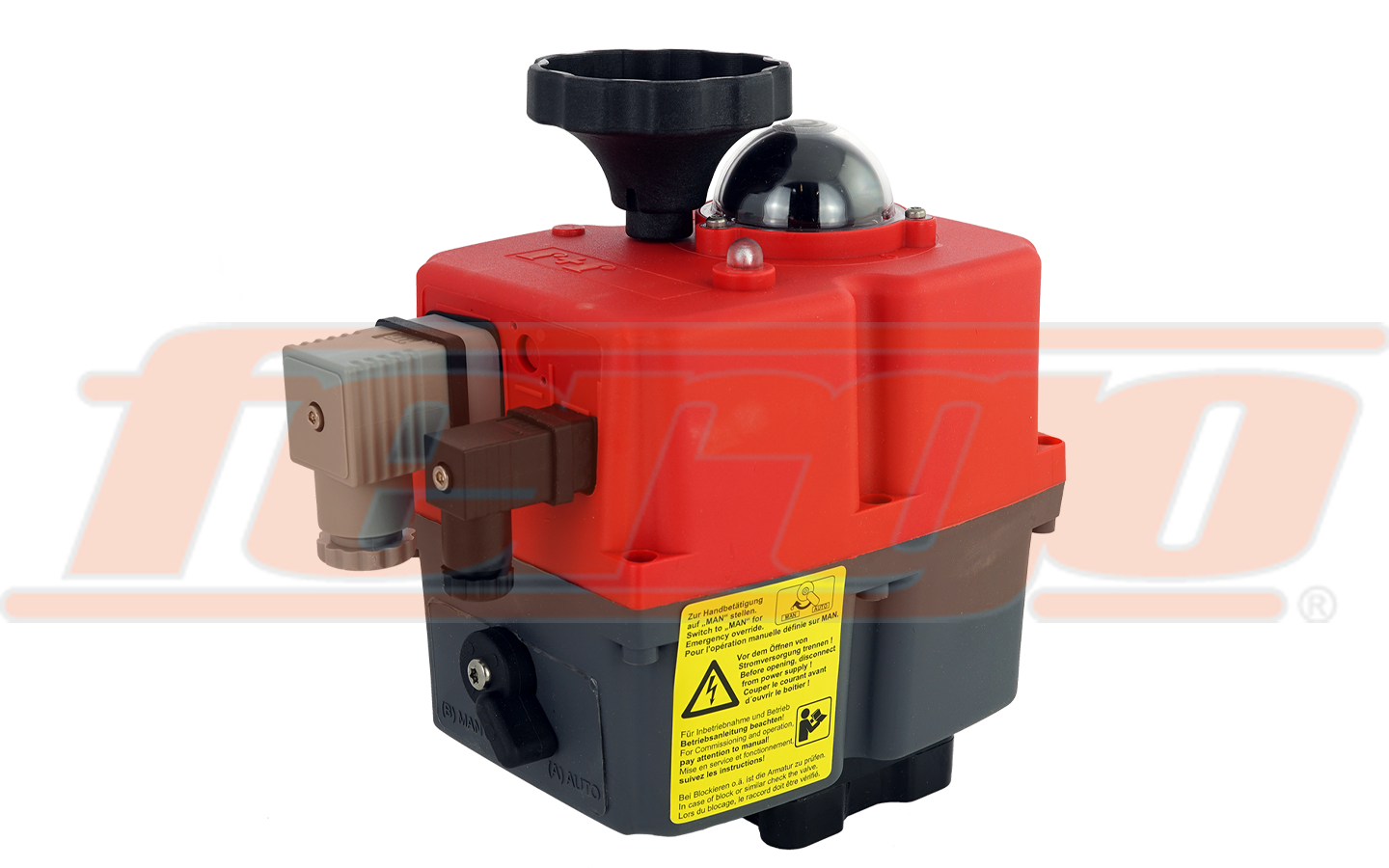

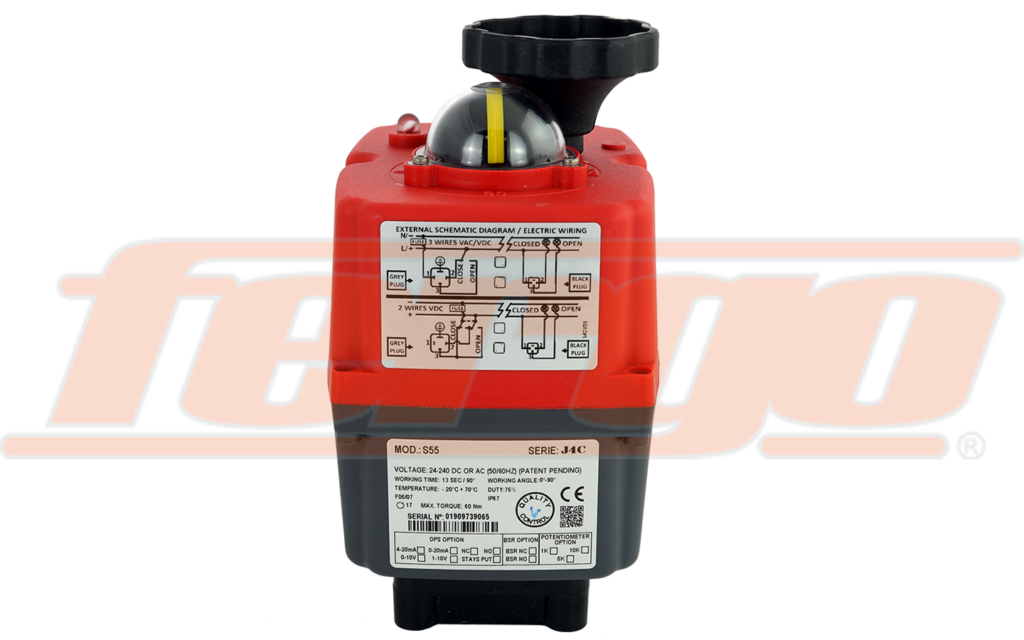

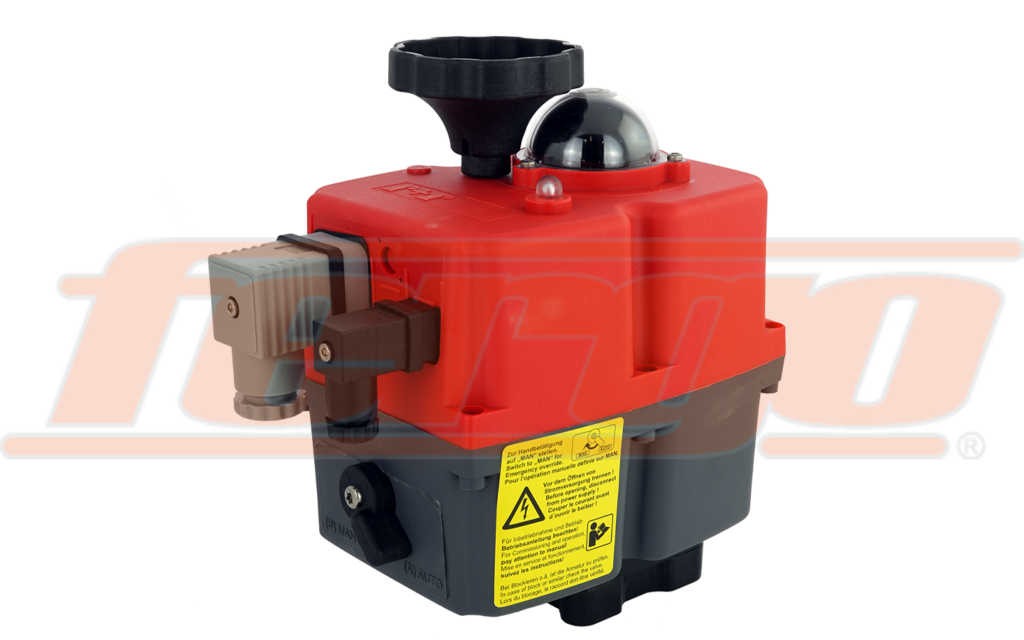

Electric part-turn actuator Type: FG-J4C-S55 (Art.-Nr.: 425-1260)
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,21A – 1,98A
- Runtime (90°): 13s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 60Nm
- Working torque: 55Nm
- Ambient temperature: -20°C to +70°C
- Flange: F05/F07
- Square (Star): 17mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater

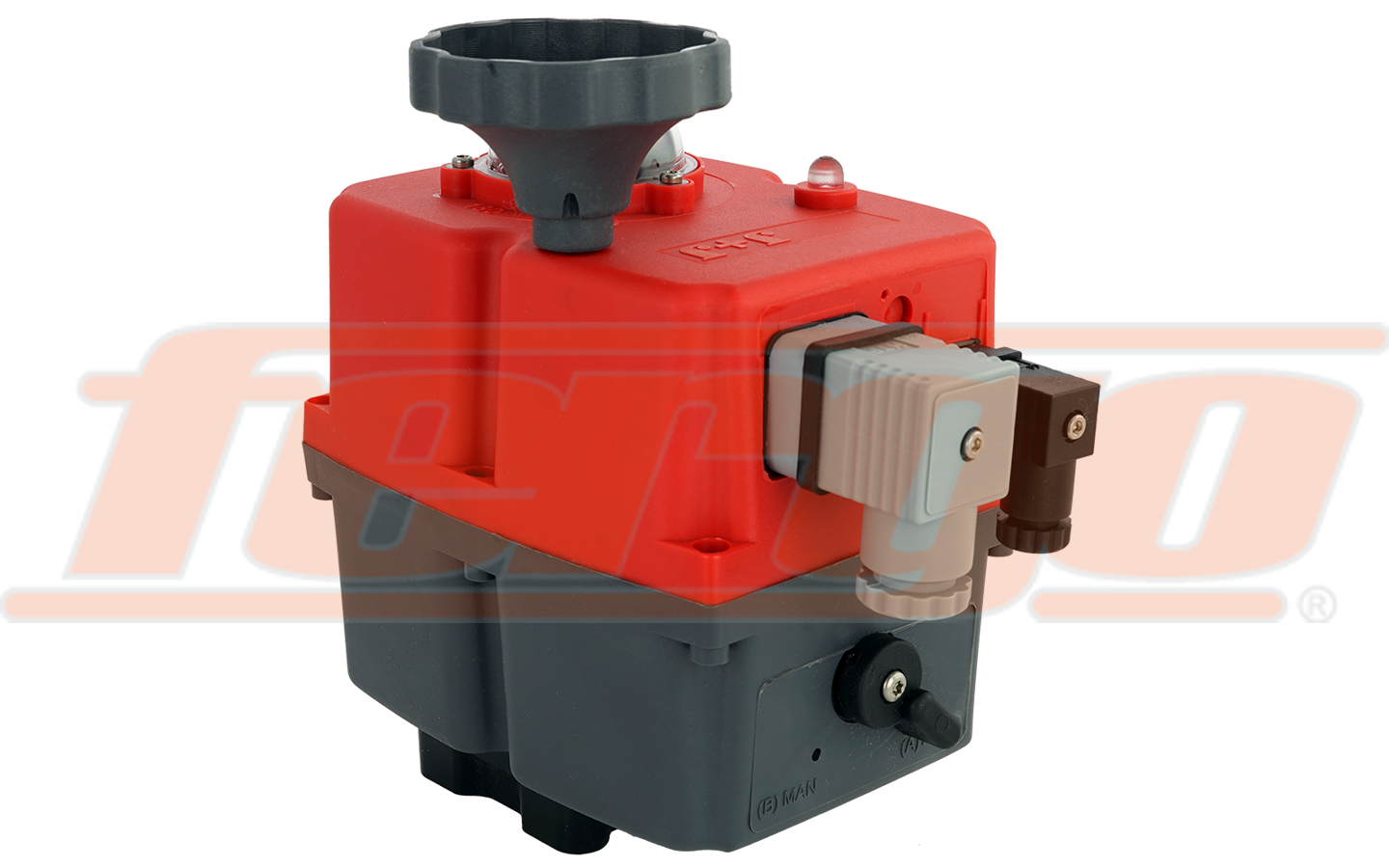

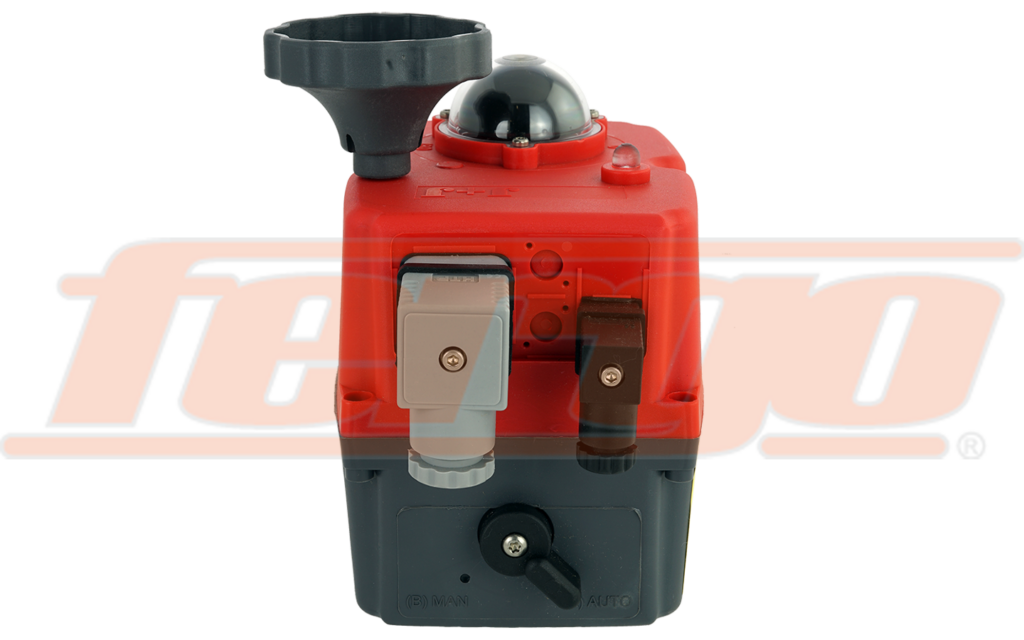

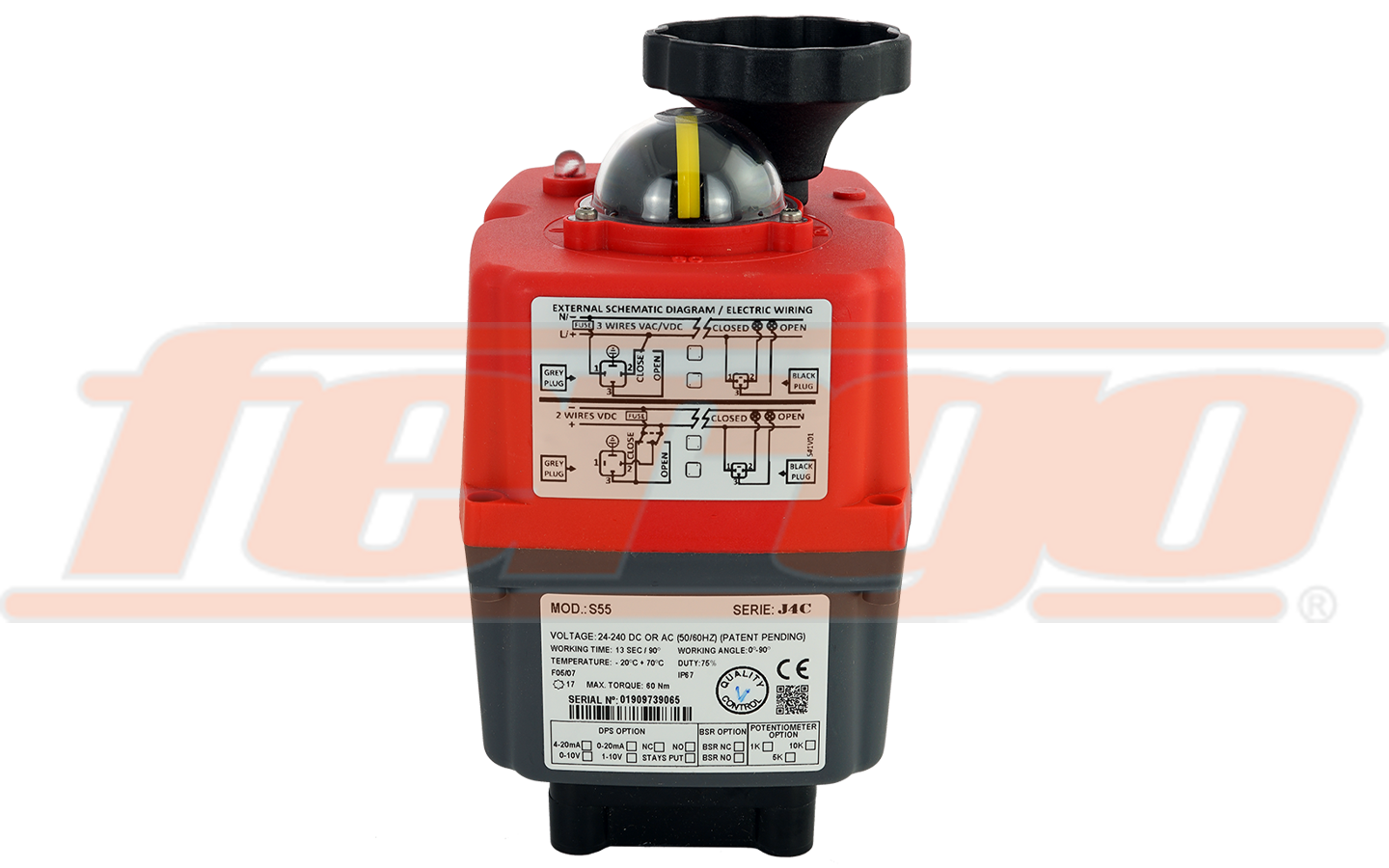

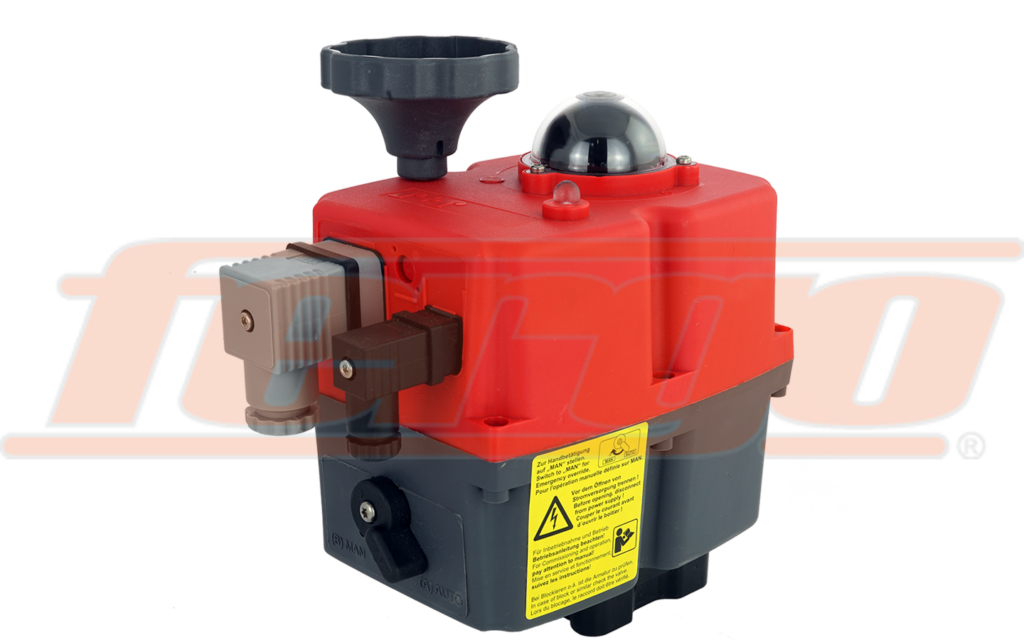

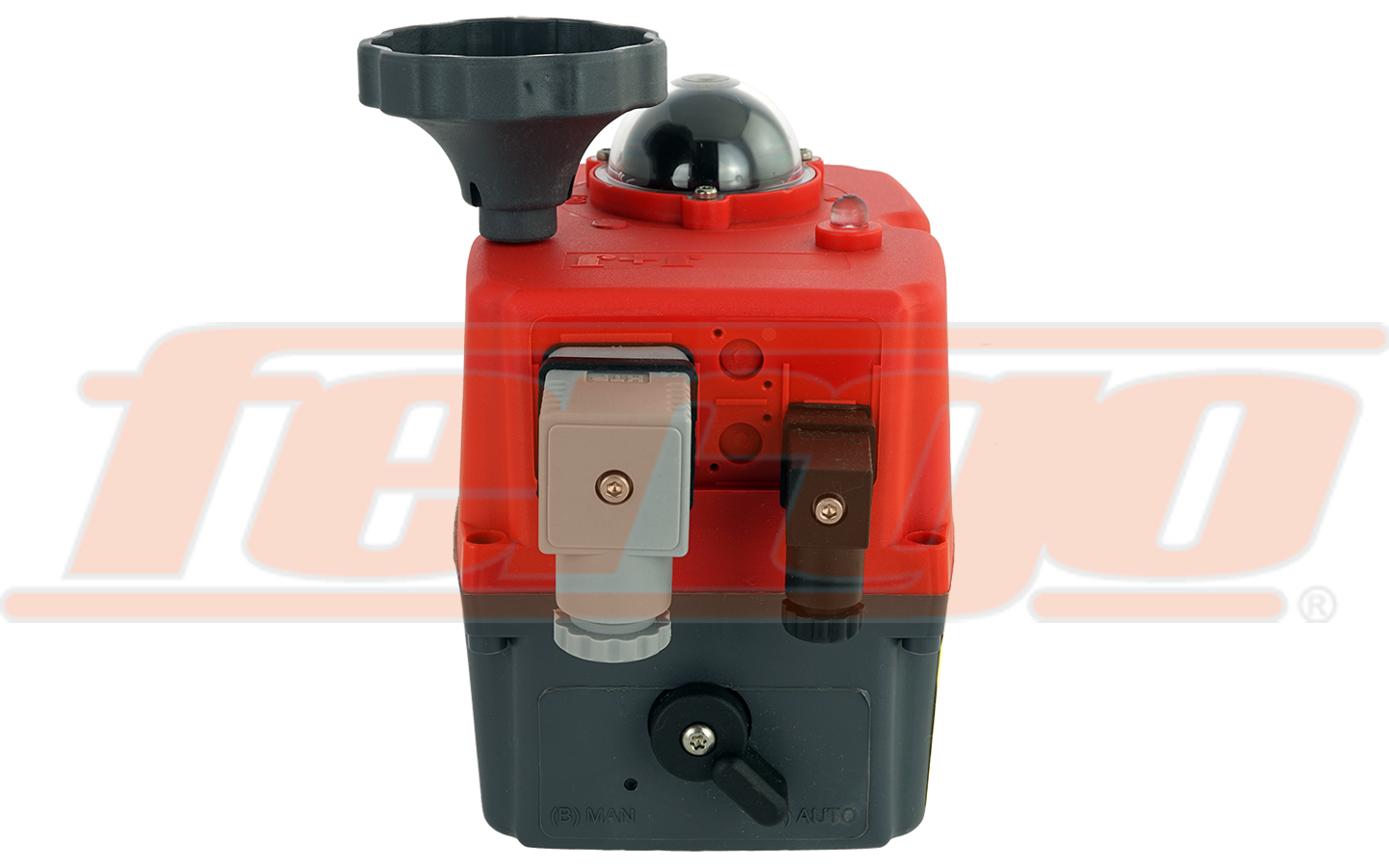

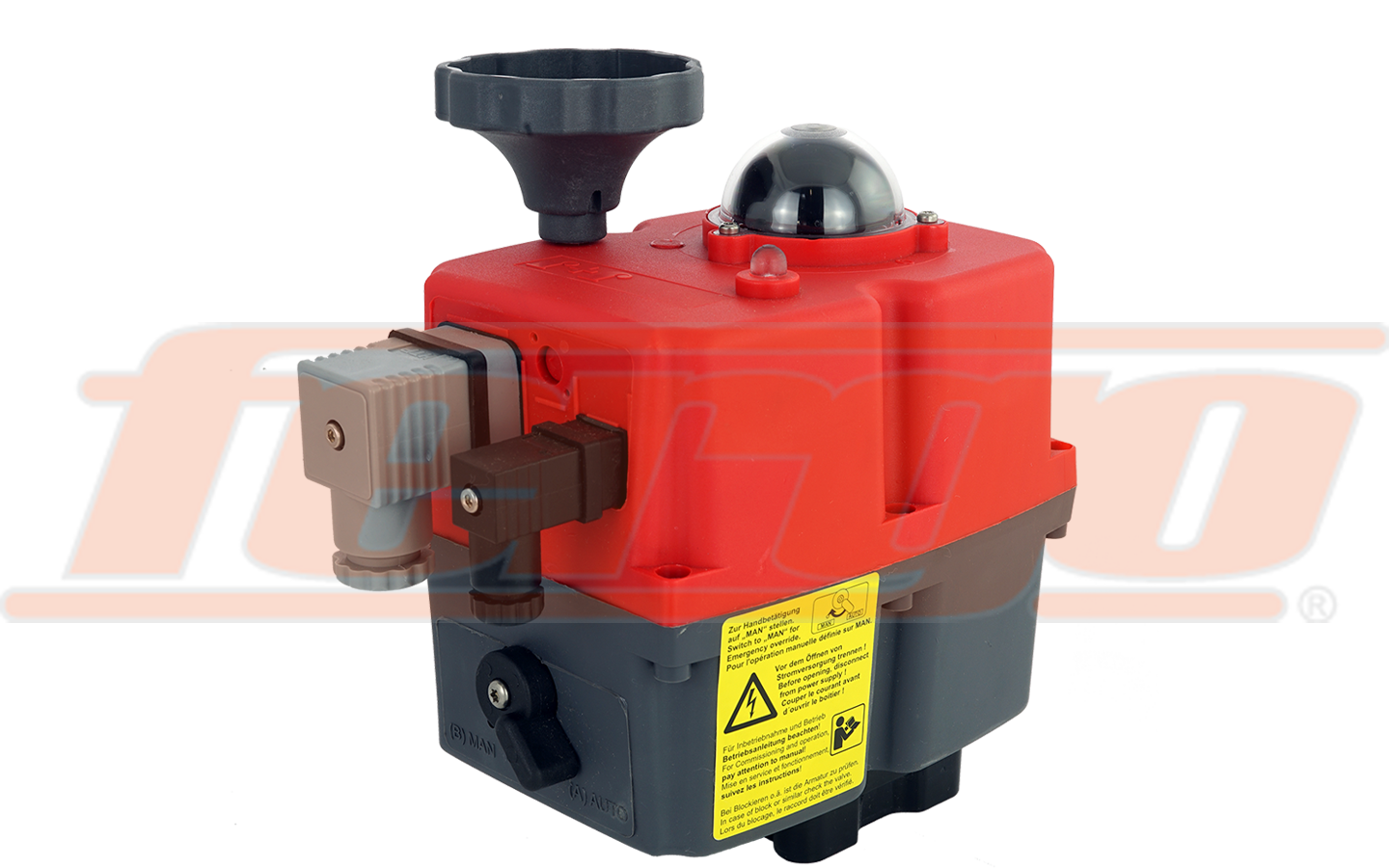

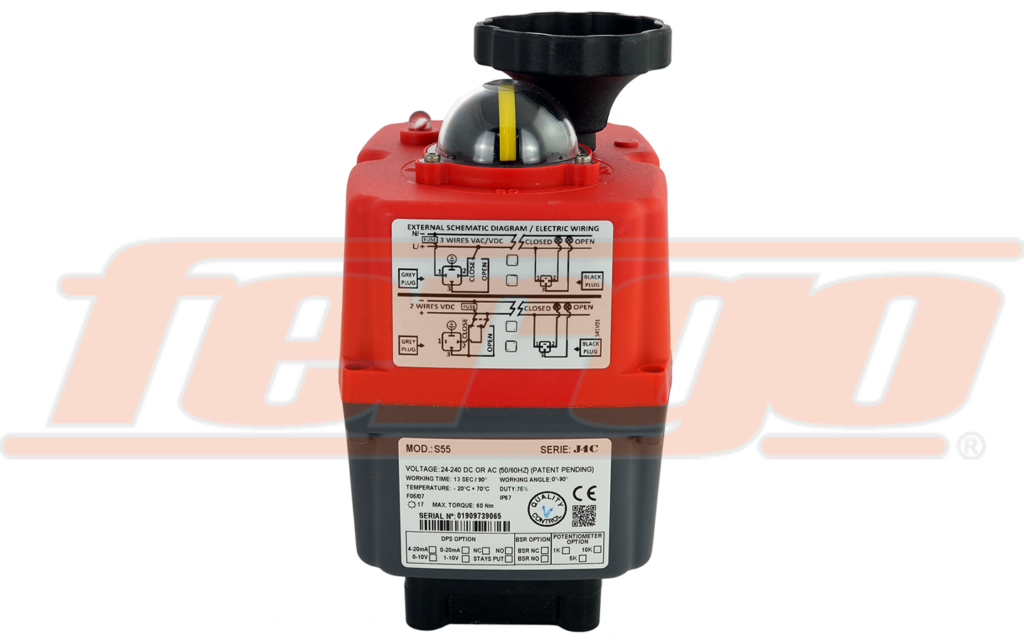

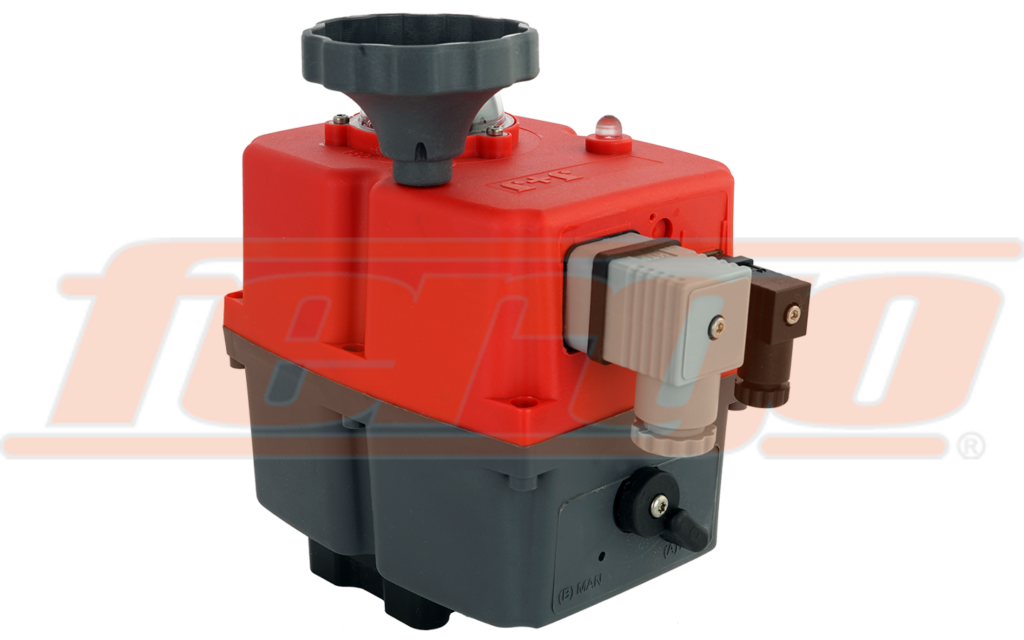

Electric part-turn actuator Type: FG-J4C-S85 (Art.-Nr.: 425-1270)
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,18A – 1,50A
- Runtime (90°): 29s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 90Nm
- Working torque: 85Nm
- Ambient temperature: -20°C to +70°C
- Flange: F05/F07
- Square (Star): 17mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater

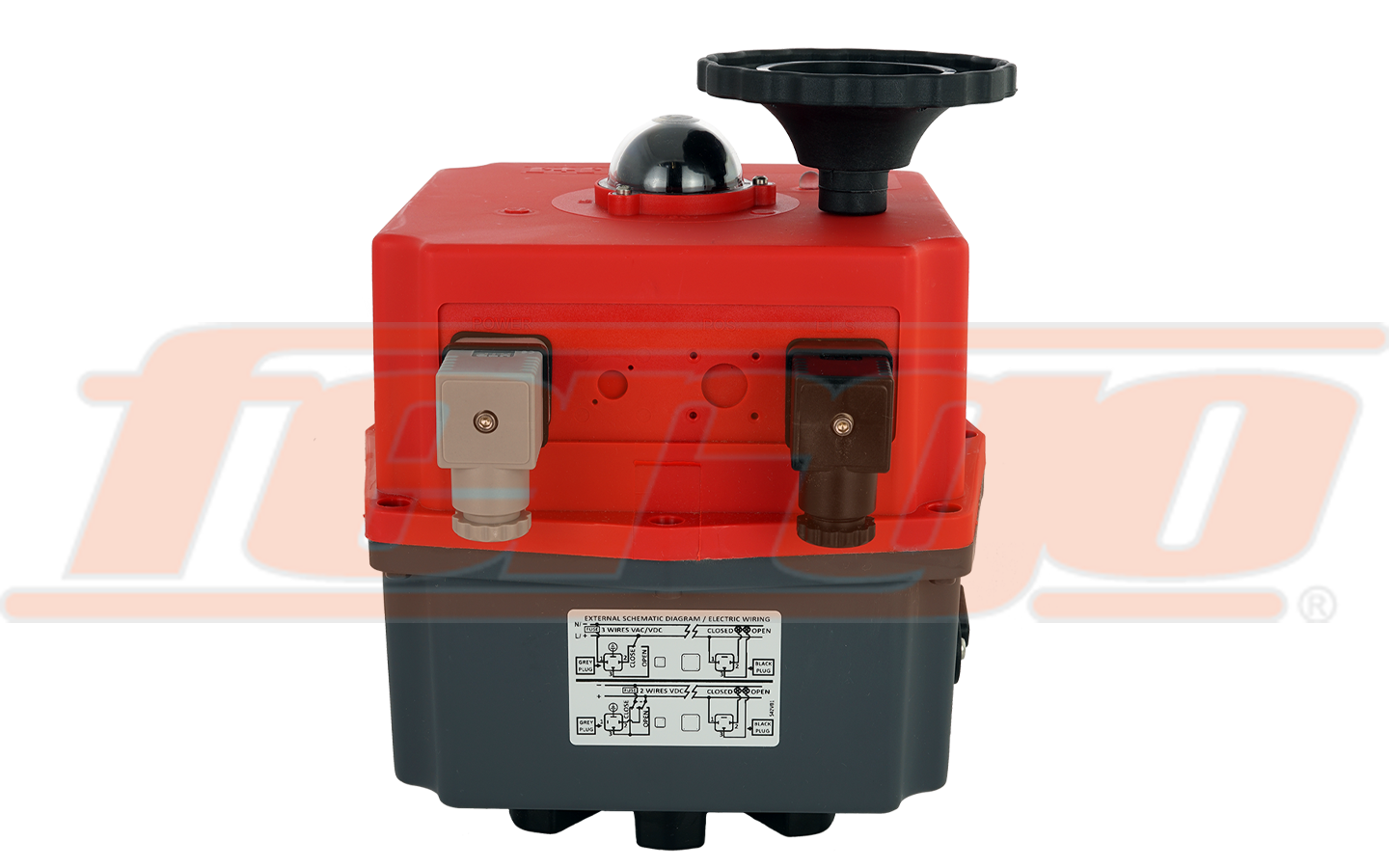

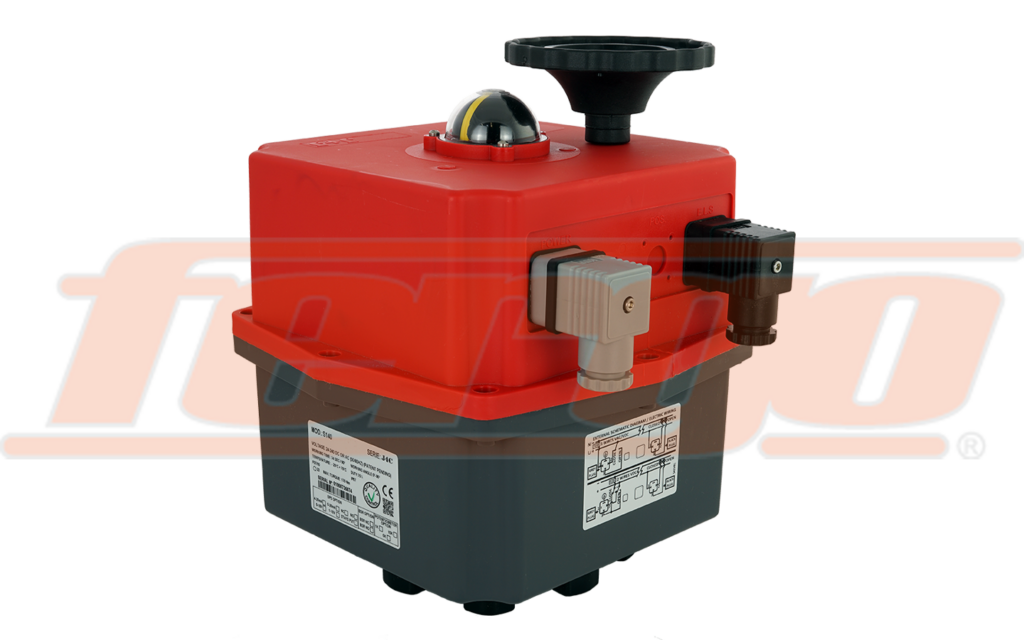

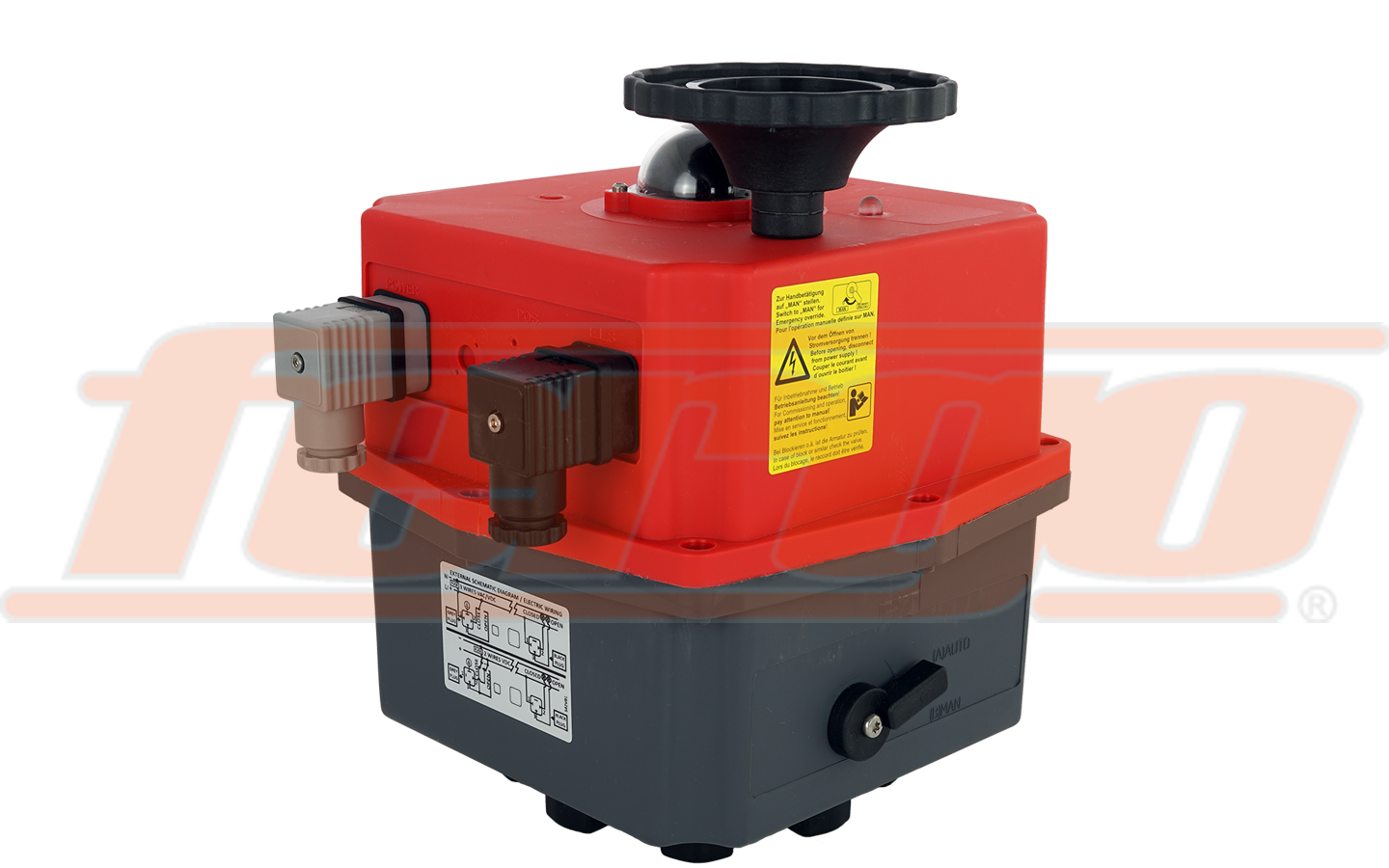

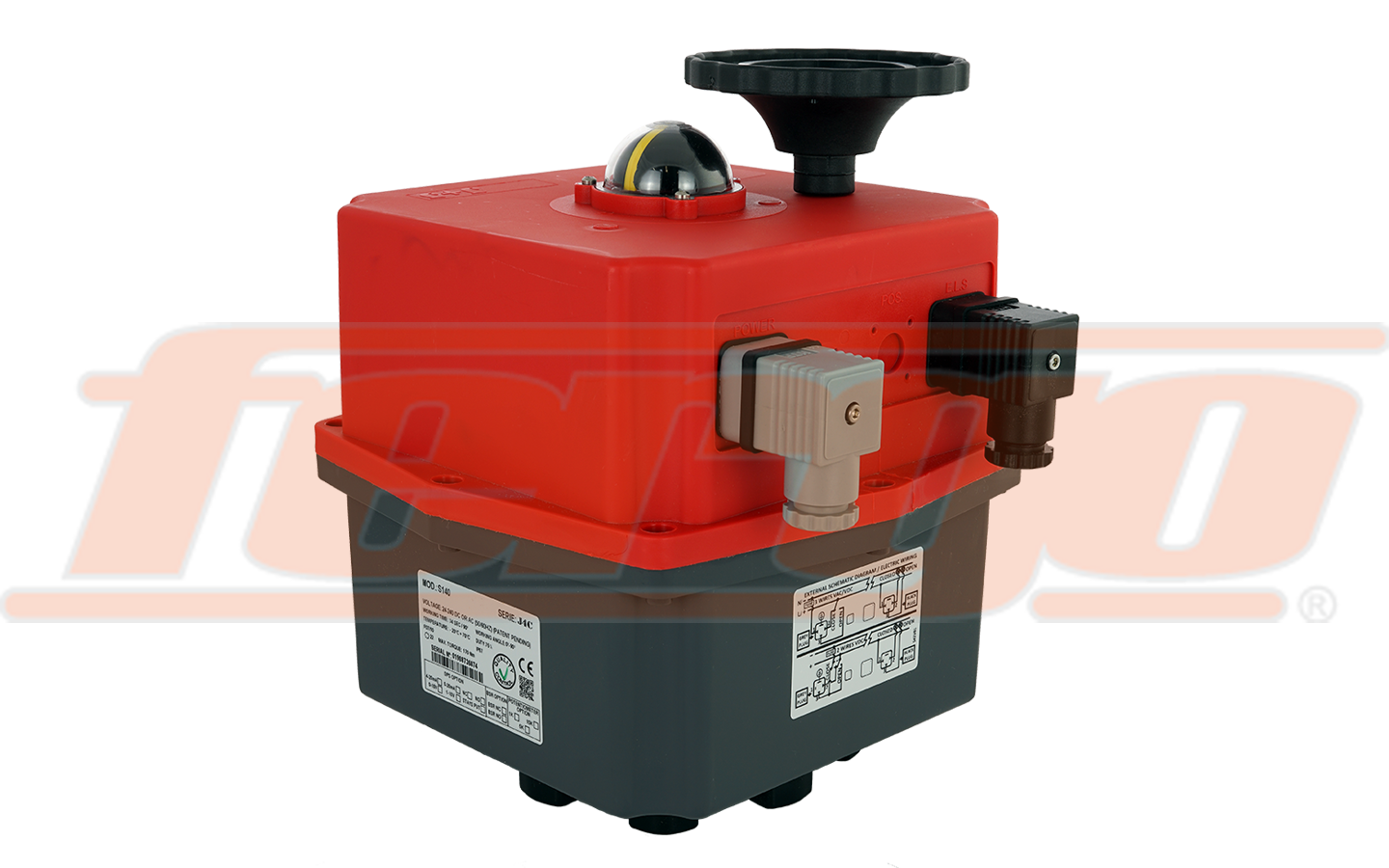

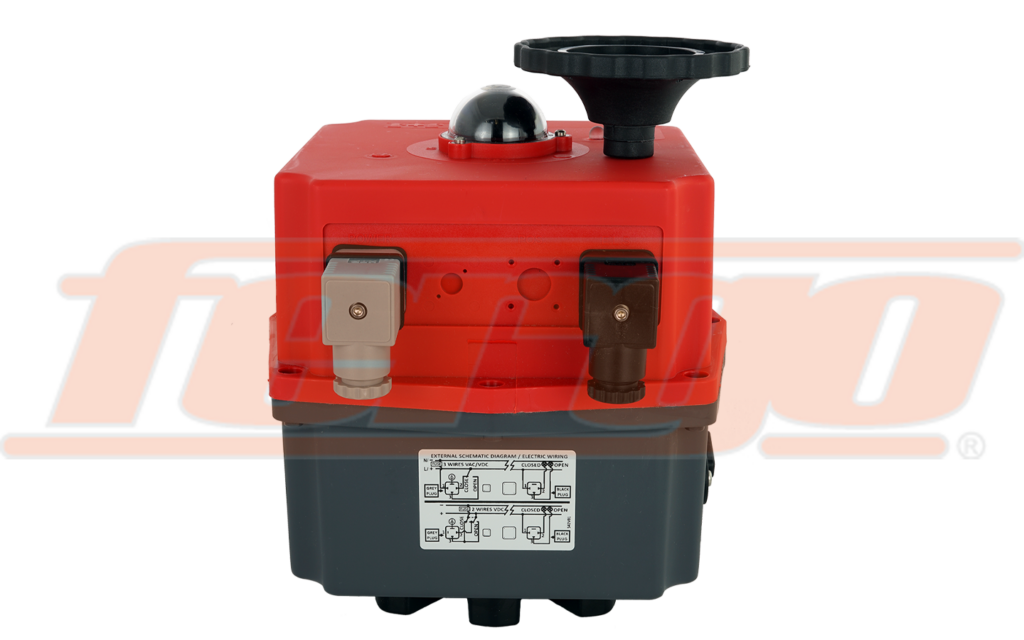

Electric part-turn actuator Type: FG-J4C-S140 (Art.-Nr.: 425-1280)
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,44A – 3,30A
- Runtime (90°): 25s ± 10%
- Heater: 3,5W
- Duty cycle: 75%
- Protection: IP67
- Break out torque: 170Nm
- Working torque: 140Nm
- Ambient temperature: -20°C to +70°C
- Flange: F07/F10
- Square (Star): 22mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater

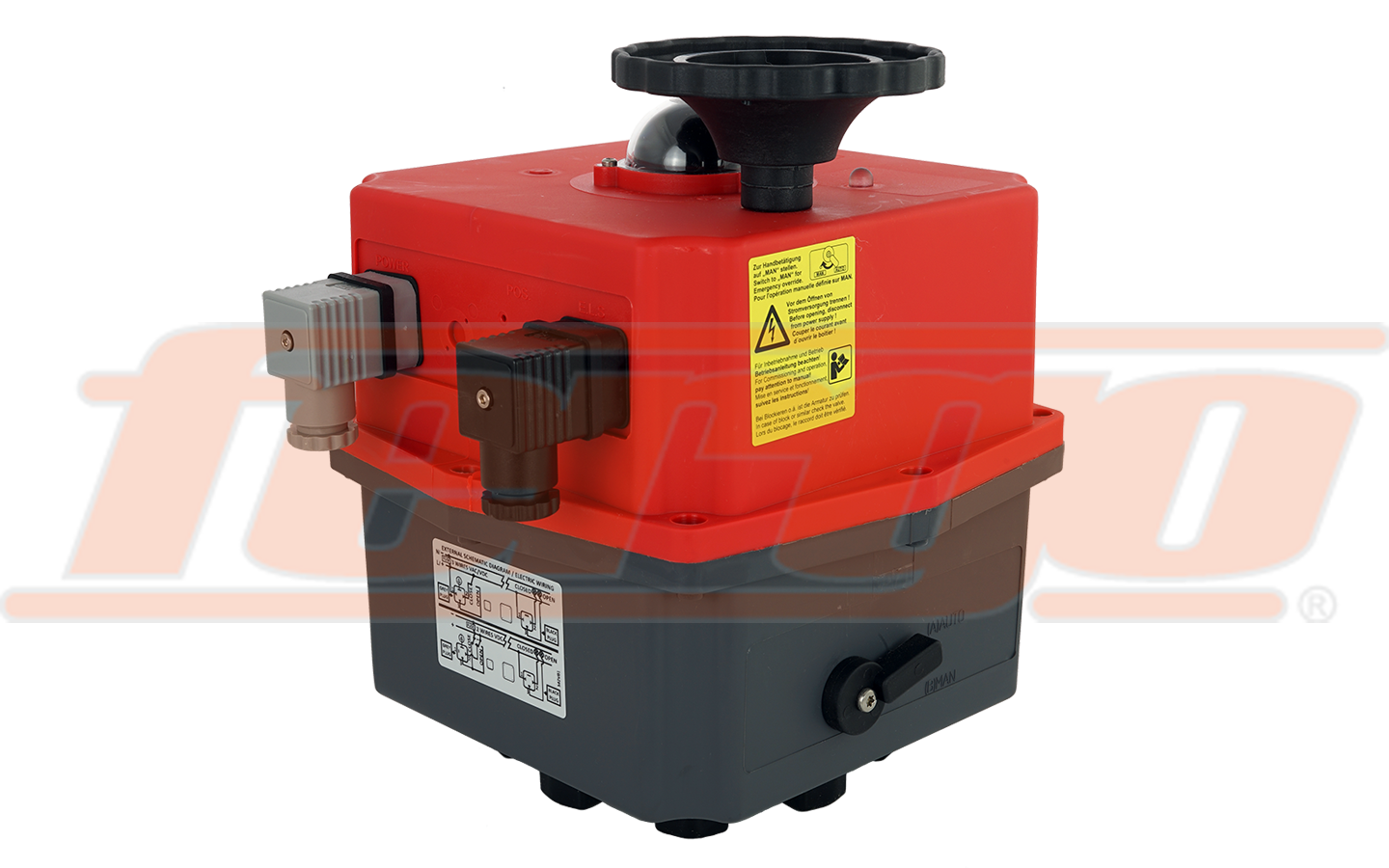

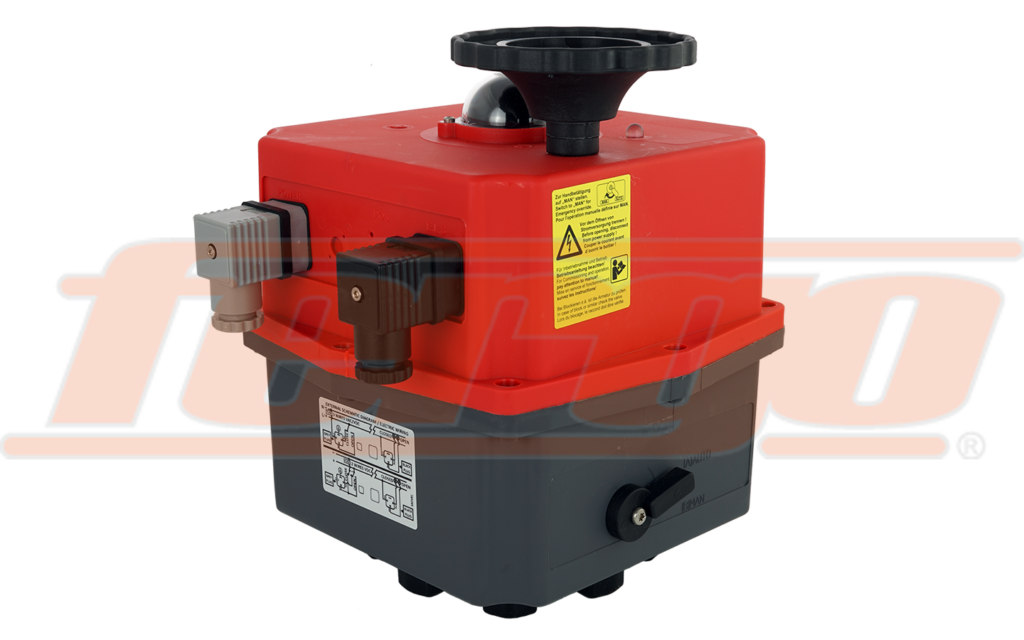

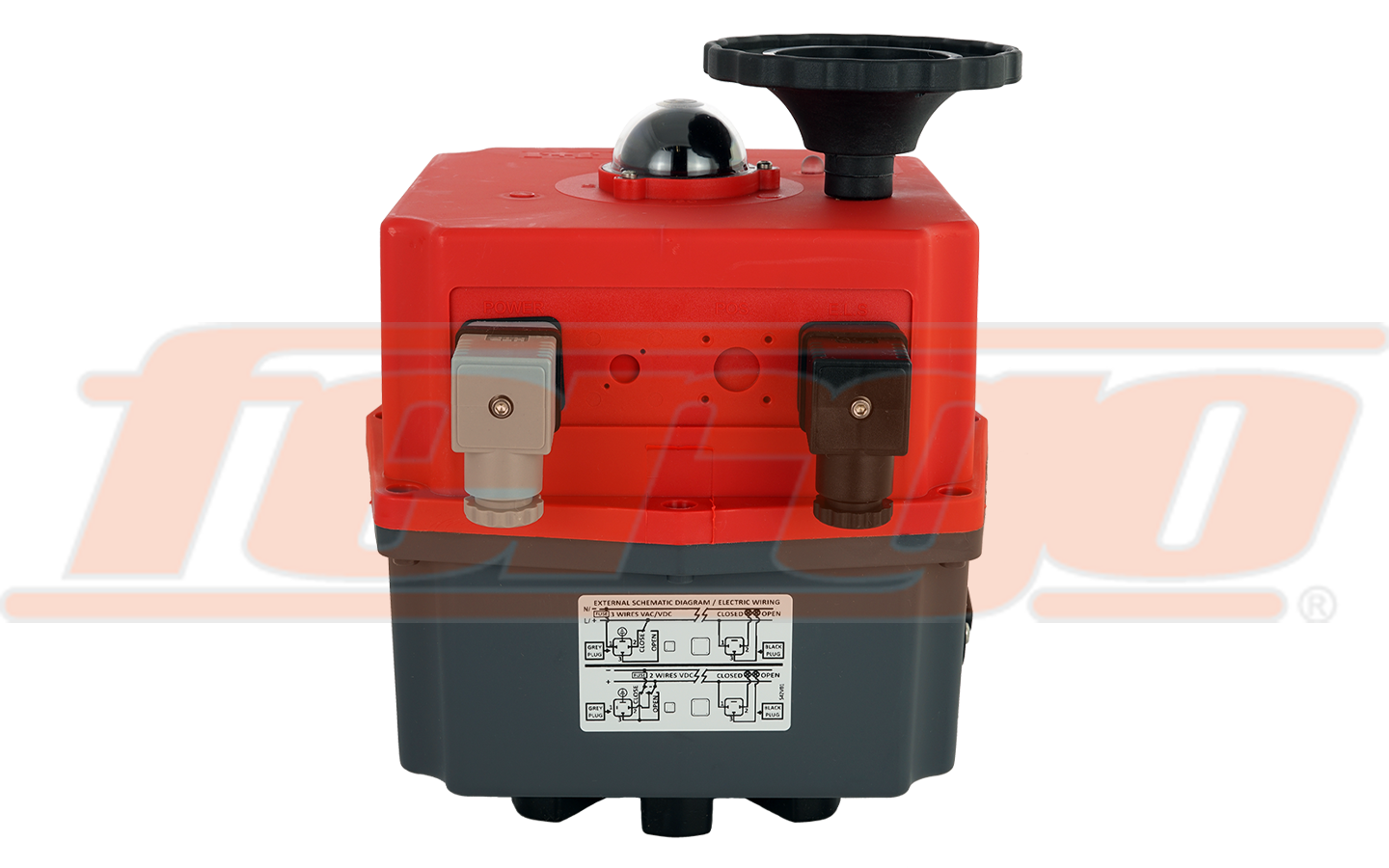

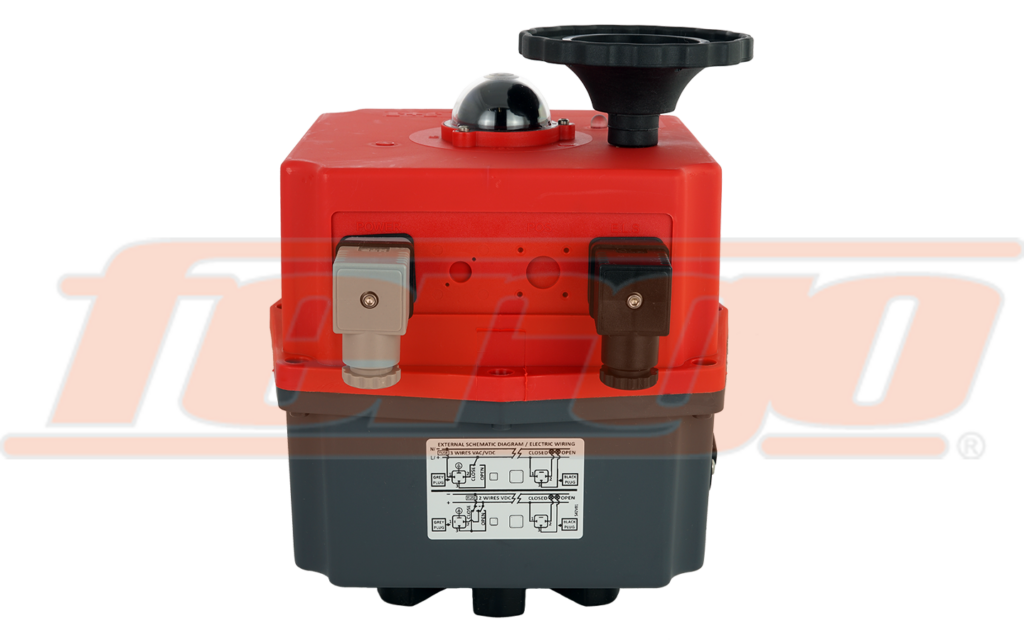

Electric part-turn actuator Type: FG-J4C-S300 (Art.-Nr.: 425-1290)
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,47A – 3,30A
- Runtime (90°): 48s ± 10%
- Heater: 3,5W
- Duty cycle: 75%
- Protection: IP67
- Break out torque: 350Nm
- Working torque: 300Nm
- Ambient temperature: -20°C to +70°C
- Flange: F07/F10
- Square (Star): 22mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater
Actuator FG-J4C with positioner (DPS)
Electric part-turn actuator Type: FG-J4C-S20-DPS (Art.-Nr.: 425-1242)
- With integrated DPS positioner 4-20mA [0-10V on request]
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,16A – 1,28A
- Runtime (90°): 9s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 25Nm
- Working torque: 20Nm
- Ambient temperature: -20°C to +70°C
- Flange: F03/F04/F05
- Square (Star): 14mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S35-DPS (Art.-Nr.: 425-1252)
- With integrated DPS positioner 4-20mA [0-10V on request]
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,20A – 1,67A
- Runtime (90°): 9s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 38Nm
- Working torque: 35Nm
- Ambient temperature: -20°C to +70°C
- Flange: F03/F04/F05
- Square (Star): 14mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S55-DPS (Art.-Nr.: 425-1262)
- With integrated DPS positioner 4-20mA [0-10V on request]
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,21A – 1,98A
- Runtime (90°): 13s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 60Nm
- Working torque: 55Nm
- Ambient temperature: -20°C to +70°C
- Flange: F05/F07
- Square (Star): 17mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S85-DPS (Art.-Nr.: 425-1272)
- With integrated DPS positioner 4-20mA [0-10V on request]
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,18A – 1,50A
- Runtime (90°): 29s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 90Nm
- Working torque: 85Nm
- Ambient temperature: -20°C to +70°C
- Flange: F05/F07
- Square (Star): 17mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S140-DPS (Art.-Nr.: 425-1282)
- With integrated DPS positioner 4-20mA [0-10V on request]
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,44A – 3,30A
- Runtime (90°): 25s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 170Nm
- Working torque: 140Nm
- Ambient temperature: -20°C to +70°C
- Flange: F07/F10
- Square (Star): 22mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S300-DPS (Art.-Nr.: 425-1292)
- With integrated DPS positioner 4-20mA [0-10V on request]
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,47A – 3,30A
- Runtime (90°): 48s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 350Nm
- Working torque: 300Nm
- Ambient temperature: -20°C to +70°C
- Flange: F07/F10
- Square (Star): 22mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater
Actuator FG-J4C with battery pack (fail safe)
Electric part-turn actuator Type: FG-J4C-S20-BSR (Art.-Nr.: 425-1241)
- With integrated BSR battery pack
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,16A – 1,28A
- Runtime (90°): 9s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 25Nm
- Working torque: 20Nm
- Ambient temperature: -20°C to +70°C
- Flange: F03/F04/F05
- Square (Star): 14mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S35-BSR (Art.-Nr.: 425-1251)
- With integrated BSR battery pack
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,20A – 1,67A
- Runtime (90°): 9s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 38Nm
- Working torque: 35Nm
- Ambient temperature: -20°C to +70°C
- Flange: F03/F04/F05
- Square (Star): 14mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S55-BSR (Art.-Nr.: 425-1261)
- With integrated BSR battery pack
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,21A – 1,98A
- Runtime (90°): 13s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 60Nm
- Working torque: 55Nm
- Ambient temperature: -20°C to +70°C
- Flange: F05/F07
- Square (Star): 17mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S85-BSR (Art.-Nr.: 425-1271)
- With integrated BSR battery pack
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,18A – 1,50A
- Runtime (90°): 29s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 90Nm
- Working torque: 85Nm
- Ambient temperature: -20°C to +70°C
- Flange: F05/F07
- Square (Star): 17mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S140-BSR (Art.-Nr.: 425-1281)
- With integrated BSR battery pack
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,44A – 3,30A
- Runtime (90°): 25s ± 10%
- Heater: 3,5W
- Duty cycle: 75%
- Protection: IP67
- Break out torque: 170Nm
- Working torque: 140Nm
- Ambient temperature: -20°C to +70°C
- Flange: F07/F10
- Square (Star): 22mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S300-BSR (Art.-Nr.: 425-1291)
- With integrated BSR battery pack
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,47A – 3,30A
- Runtime (90°): 48s ± 10%
- Heater: 3,5W
- Duty cycle: 75%
- Protection: IP67
- Break out torque: 350Nm
- Working torque: 300Nm
- Ambient temperature: -20°C to +70°C
- Flange: F07/F10
- Square (Star): 22mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater
Actuator FG-J4C with positioner (DPS) and battery pack (fail safe)
Electric part-turn actuator Type: FG-J4C-S20-DPS+BSR (Art.-Nr.: 425-1243)
- With positioner 4-20mA [0-10V on request] and battery pack
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,16A – 1,28A
- Runtime (90°): 9s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 25Nm
- Working torque: 20Nm
- Ambient temperature: -20°C to +70°C
- Flange: F03/F04/F05
- Square (Star): 14mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S35-DPS+BSR (Art.-Nr.: 425-1253)
- With positioner 4-20mA [0-10V on request] and battery pack
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,20A – 1,67A
- Runtime (90°): 9s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 38Nm
- Working torque: 35Nm
- Ambient temperature: -20°C to +70°C
- Flange: F03/F04/F05
- Square (Star): 14mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S55-DPS+BSR (Art.-Nr.: 425-1263)
- With positioner 4-20mA [0-10V on request] and battery pack
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,21A – 1,98A
- Runtime (90°): 13s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 60Nm
- Working torque: 55Nm
- Ambient temperature: -20°C to +70°C
- Flange: F05/F07
- Square (Star): 17mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S85-DPS+BSR (Art.-Nr.: 425-1273)
- With positioner 4-20mA [0-10V on request] and battery pack
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,18A – 1,50A
- Runtime (90°): 29s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 90Nm
- Working torque: 85Nm
- Ambient temperature: -20°C to +70°C
- Flange: F05/F07
- Square (Star): 17mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S140-DPS+BSR (Art.-Nr.: 425-1283)
- With positioner 4-20mA [0-10V on request] and battery pack
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,44A – 3,30A
- Runtime (90°): 25s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 170Nm
- Working torque: 140Nm
- Ambient temperature: -20°C to +70°C
- Flange: F07/F10
- Square (Star): 22mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S300-DPS+BSR (Art.-Nr.: 425-1293)
- With positioner 4-20mA [0-10V on request] and battery pack
- Brushless motor
- Multivoltage system: 24 – 240V AC/DC, 50/60Hz
- Current consumption: 0,47A – 3,30A
- Runtime (90°): 48s ± 10%
- Heater: 3,5W
- Duty cicle: 75%
- Protection: IP67
- Break out torque: 350Nm
- Working torque: 300Nm
- Ambient temperature: -20°C to +70°C
- Flange: F07/F10
- Square (Star): 22mm
- Housing: polyamide (PA6)
- Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
- Manual override
- Electronic torque limiter
- Automatic interior heater
New series: J4C
Download „Electric Actuator J4C Overview“
Download „Electric Actuator J4C Manual“
Old series: J2, J3, J3C
