Flanged Ball Valves KH155 Flanged Ball Valve
Flanged ball valve for the industry
Our KH155 is a high-quality two-way ball valve with a flanged connection, which can be automated quickly and easily due to its ISO-top mounting flange. The KH155 ball valve is available with a body made from carbon steel or stainless steel and with flanges drilled according to DIN or ANSI. Furthermore, you can choose between different face-to-face sizes. Outstanding features: FireSafe and TA Luft. The different sizes, pressure stages, and materials are shown on the datasheet, which can be downloaded on our website. Feel free to contact our sales department and we will advise you and create an offer without commitment.
Buy Online – Fergo Shop
Flanged ball valve with hand lever, pneumatic & electric actuator

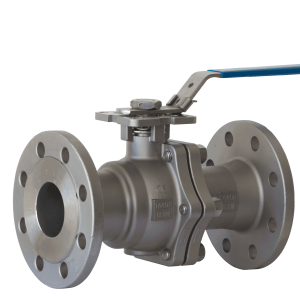

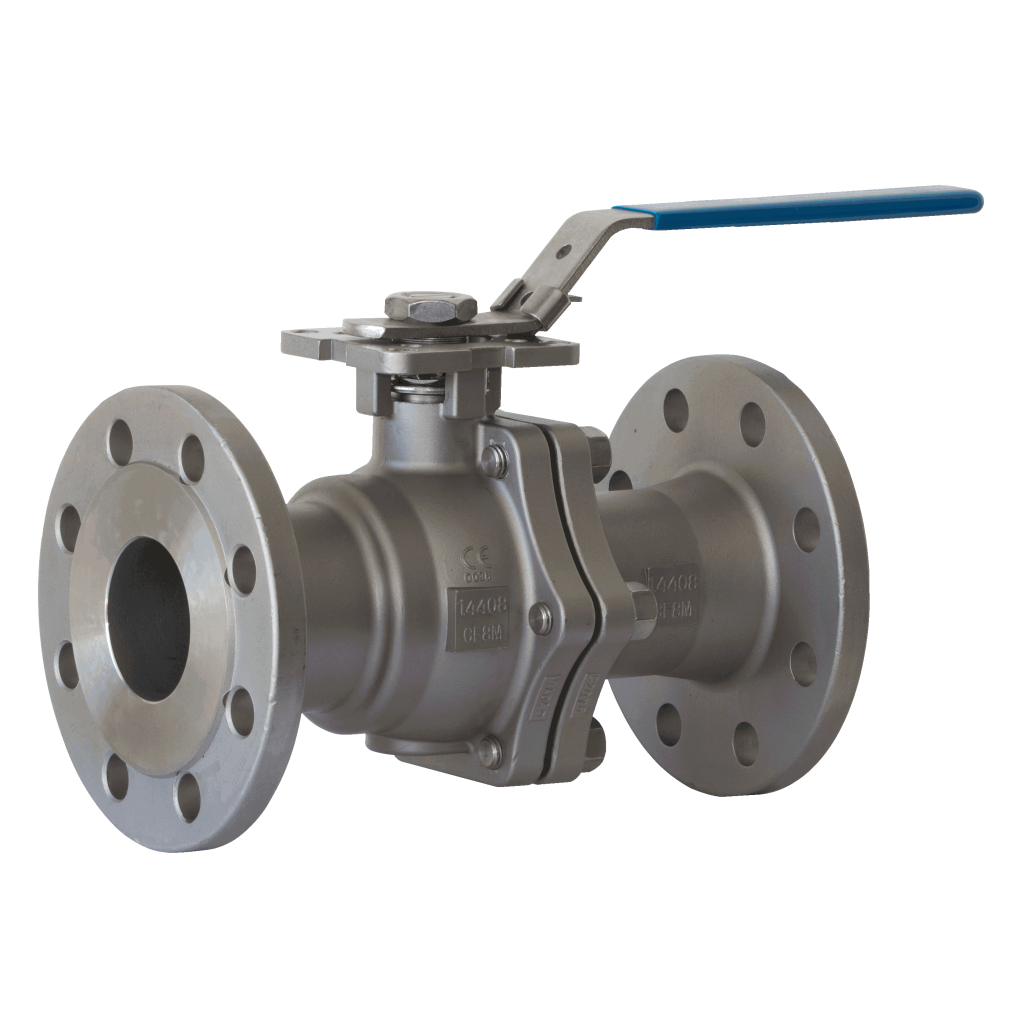

Ball valve KH155 DIN EN made from stainless steel
Ball valve KH155-SSTLF (Art.-Nr.: 100-1113-xx)
• DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200
• Face-to-face according to DIN 3202 F4/F5
• 2-piece body
• Body: 1.4408 (A351 CF8M)
• Ball: 1.4408 (A351 CF8M)
• Stem: 1.4408 (A351 CF8M)
• Ball seat: TFM 1600
• Direct mounting actuator ISO 5211
• Max. working pressure 40 bar (16 bar DN65 and above)
• Working temperature -29°C to +175°C
• Approval: TA-Luft, Firesafe
• ATEX Ex II 2 GD c T3
• SIL IEC 61508-1/2/4-7:2010 & IEC 61511-1:2016
• Operation: Handlever
Ball valve KH155-SSTLF (Art.-Nr.: 100-1123-xx)
• DN65, DN80, DN100, DN125, DN150, DN200
• Face-to-face according DIN 3202 F4/F5
• Flanges acc. to DIN PN40
• 2-piece body
• Body: 1.4408 (A351 CF8M)
• Ball: 1.4408 (A351 CF8M)
• Stem: 1.4408 (A351 CF8M)
• Ball seat: TFM 1600
• Direct mounting actuator ISO 5211
• Max. working pressure 40 bar
• Working temperature -29°C to +175°C
• Approval: TA-Luft, Firesafe
• ATEX Ex II 2 GD c T3
• SIL IEC 61508-1/2/4-7:2010 & IEC 61511-1:2016
• Operation: Handlever

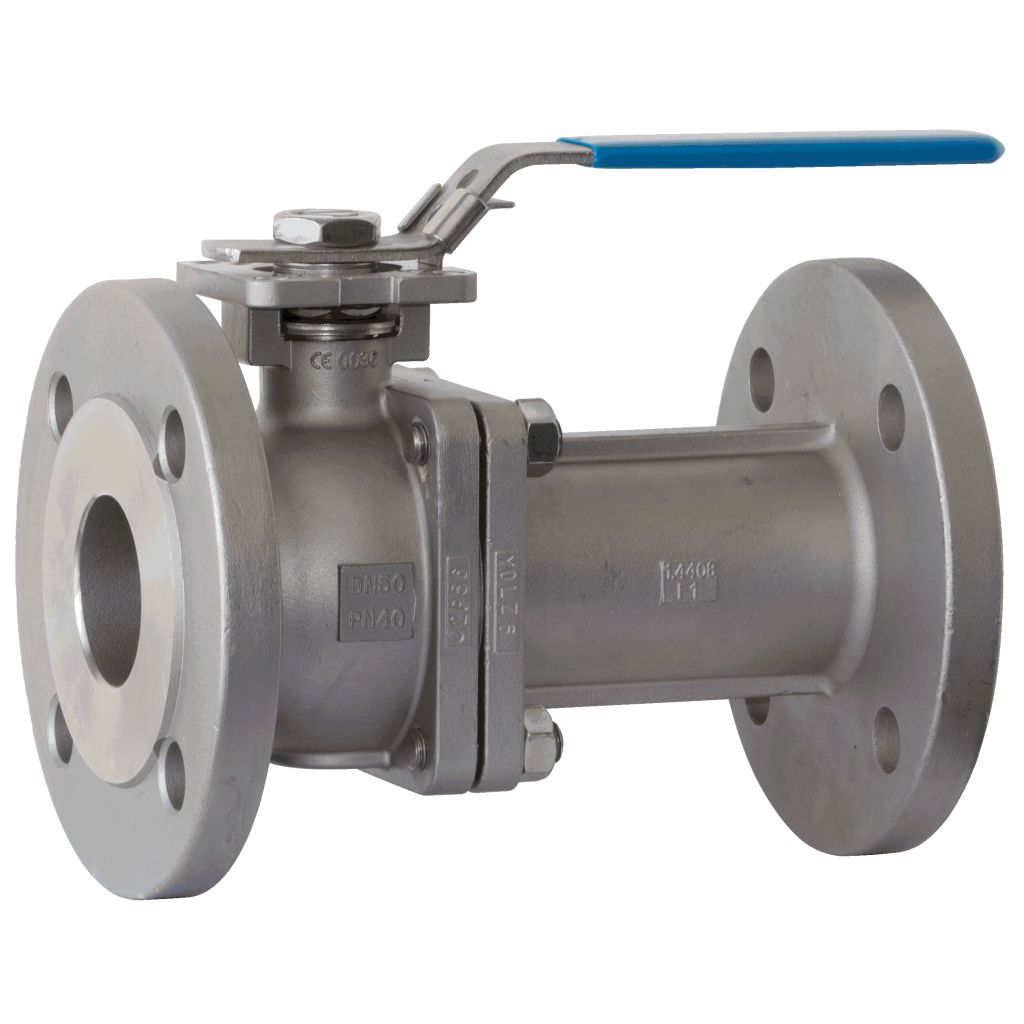

Ball valve KH155-SSTLF [F1] (Art.-Nr.: 100-1121-xx)
• DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200
• Face to face according DIN 3202 F1
• 2-piece body
• Body: 1.4408 (A351 CF8M)
• Ball: 1.4408 (A351 CF8M)
• Stem: 1.4408 (A351 CF8M)
• Ball seat: TFM 1600
• Direct mounting actuator ISO 5211
• Max. working pressure 40 bar (16 bar DN65 and above)
• Working temperature -29°C to +175°C
• Approval: TA-Luft, Firesafe
• ATEX Ex II 2 GD c T3
• SIL IEC 61508-1/2/4-7:2010 & IEC 61511-1:2016
• Operation: Handlever

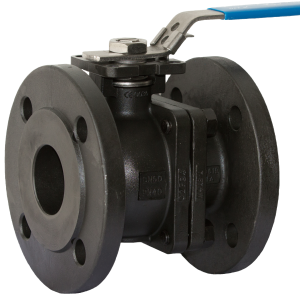

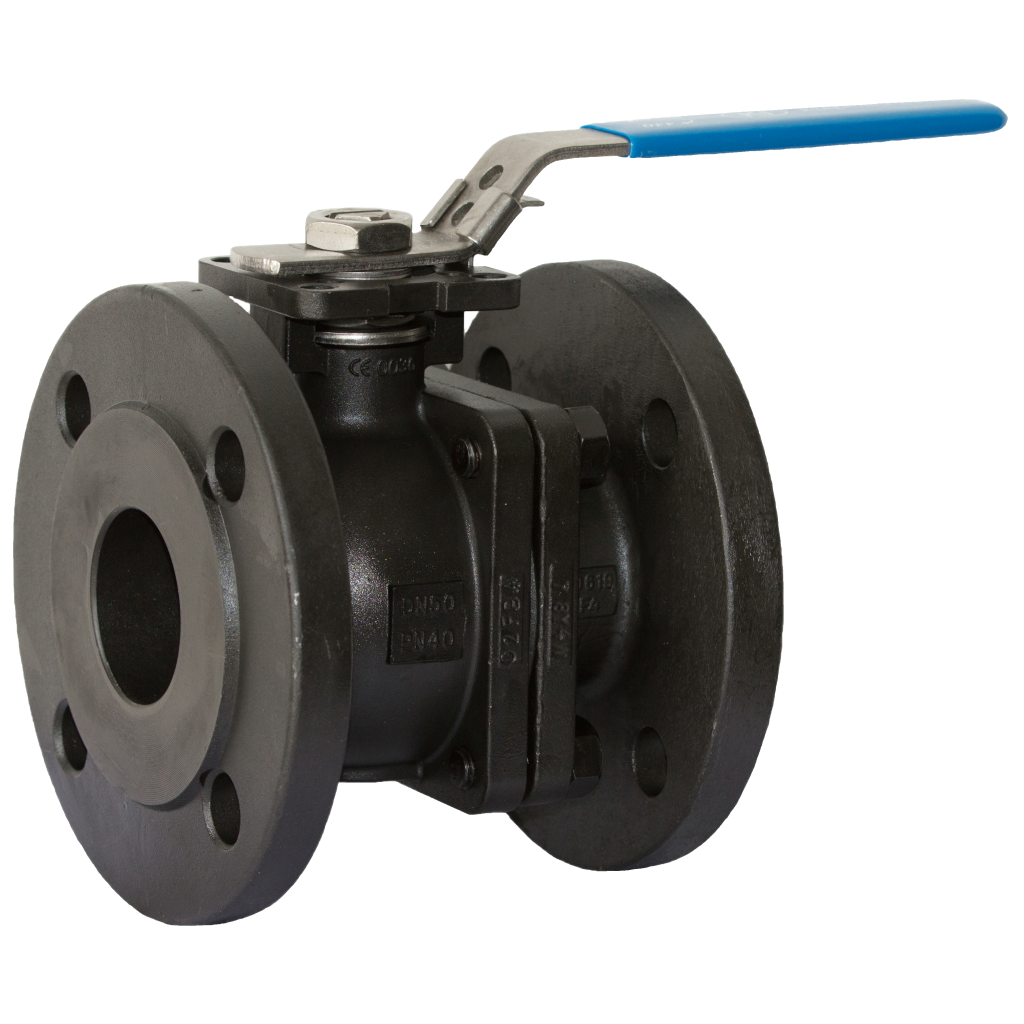

Ball valve KH155 DIN EN made from steel
Ball valve KH155-CS1TLF (Art.-Nr.: 100-1120-xx)
• DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200
• Face to face according DIN 3202 F4/F5
• 2-piece body
• Body: 1.0619 (A216 WCB)
• Ball: 1.4301 (A351 CF8)
• Stem: AISI 304
• Ball seat: TFM 1600
• Direct mounting actuator ISO 5211
• Max. working pressure 40 bar (16 bar DN65 and above)
• Working temperature -29°C to +175°C
• Approval: TA-Luft, Firesafe
• ATEX Ex II 2 GD c T3
• SIL IEC 61508-1/2/4-7:2010 & IEC 61511-1:2016
• Operation: Handlever
Ball valve KH155-CS1TLF (Art.-Nr.: 100-1130-xx)
• DN65, DN80, DN100, DN125, DN150, DN200
• Face to face according DIN 3202 F4/F5
• Flanges acc. to DIN PN40
• 2-piece body
• Body: 1.0619 (A216 WCB)
• Ball: 1.4301 (A351 CF8)
• Stem: AISI 304
• Ball seat: TFM 1600
• Direct mounting actuator ISO 5211
• Max. working pressure 40 bar
• Working temperature -29°C to +175°C
• Approval: TA-Luft, Firesafe
• ATEX Ex II 2 GD c T3
• SIL IEC 61508-1/2/4-7:2010 & IEC 61511-1:2016
• Operation: Handlever
Ball valve KH155-CS1TLF [F1] (Art.-Nr.: 100-1122-xx)
• DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200
• Face to face according DIN 3202 F1
• 2-piece body
• Body: 1.0619 (A216 WCB)
• Ball: 1.4301 (A351 CF8)
• Stem: AISI 304
• Ball seat: TFM 1600
• Direct mounting actuator ISO 5211
• Max. working pressure 40 bar (16 bar DN65 and above)
• Working temperature -29°C to +175°C
• Approval: TA-Luft, Firesafe
• ATEX Ex II 2 GD c T3
• SIL IEC 61508-1/2/4-7:2010 & IEC 61511-1:2016
• Operation: Handlever
Ball valve KH155 ASME made from stainless steel
Ball valve KH155-SSTLF (Art.-Nr.: 100-1133-xx)
• 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″, 5″, 6″, 8″
• Flanges acc. to ASME B16.5, Class150, RF
• Face to face acc. to ASME B16.10
• Full port
• 2-piece body
• Body: A351 CF8M (1.4408)
• Ball: A351 CF8M (1.4408)
• Stem: AISI 316
• Ball seat: TFM 1600
• Direct mounting actuator ISO 5211
• Pressure class: 150 lbs
• Working temperature -29°C to +175°C
• Approval: TA-Luft, Firesafe
• ATEX Ex II 2 GD c T3
• SIL IEC 61508-1/2/4-7:2010 & IEC 61511-1:2016
• Operation: locking lever handle
Type
Ball Valve
Operations
Electric Actuator, Pneumatic double-acting, Pneumatic single-acting, Lever, Topflange (ISO 5211), Gearbox with Handwheel
Sizes
DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8"
Flange connection
PN10, ANSI 150, PN16, PN40, ANSI 300, PN25
Face-to-face
DIN EN 558 Line 27, DIN EN 558 Line 1, DIN 3202 F4, ANSI B 16.10, DIN 3202 F1, DIN 3202 F7, DIN 3202 F5
Body material
1.4408, 1.0619, ASTM A351, A216 WCB
Pressure range
PN40, PN25, PN16, PN10, Class 150, Class 300
Ball material
1.4408
Ball seat
PTFE
Connection
Flanges
Certifications
TA-Luft, FireSafe
