RB101

Standard ball check valve

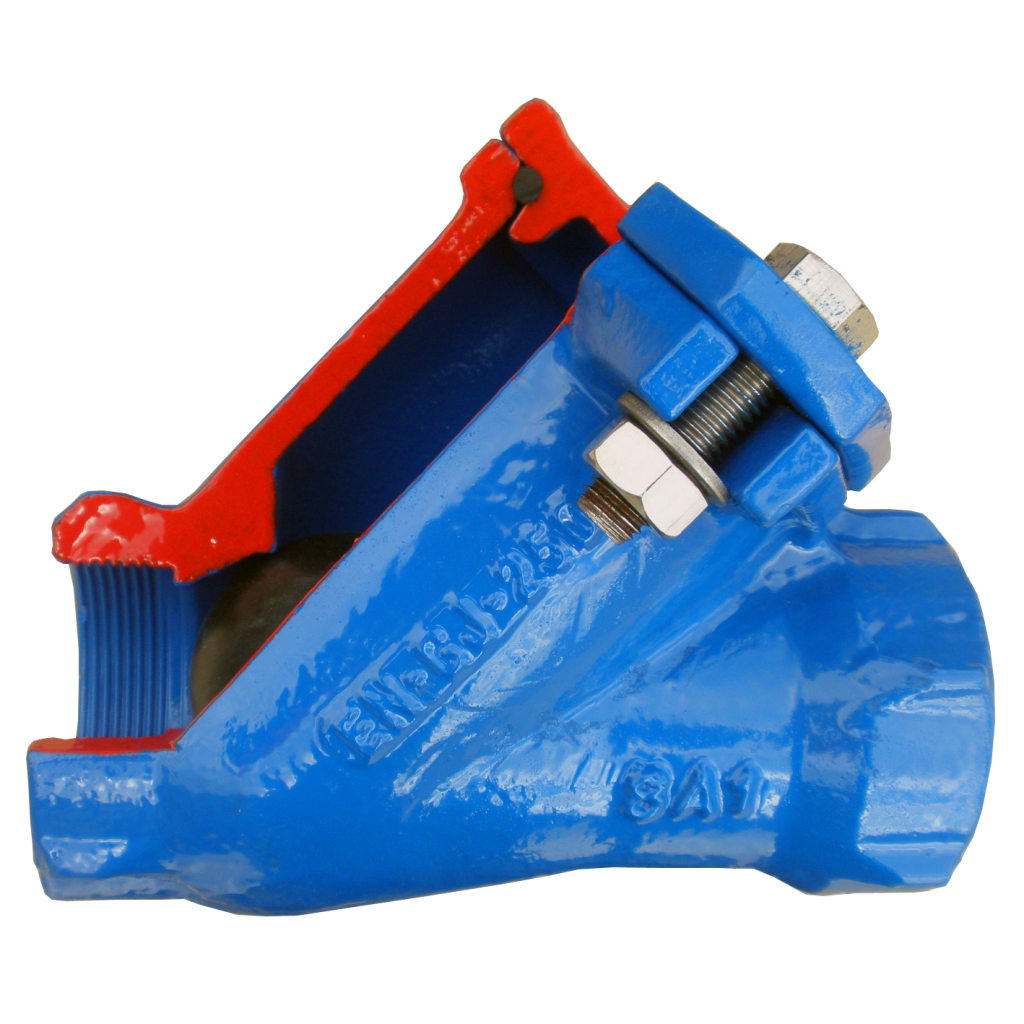

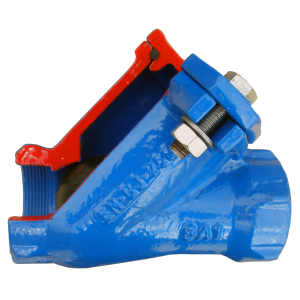

The ball check valve RB101 reliably avoids a backflow of the medium and, due to its ball which unclamps the whole pass, for polluted mediums, too. For this reason, ball check valves are often applied in waste water industries. We run these valves with different materials and coatings (EPDM, NBR, PTFE, Viton…). There is a large selection of ball check valves with different designs, materials and application areas. Feel free to contact our sales department to receive a suitable offer.

Ball check valve RB101-D2NNOI-1″ (Art.-Nr.: 303-1013-xx)

  • 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″
  • Threaded ends BSP acc. to ISO 228-1 and NFE 03-005
  • Body: EN-GJS-400-15 (GGG40)
  • Ball: Aluminium + NBR coating
  • Gasket: NBR
  • Bolting: A2
  • Temp. (min./max.): -10°C to +80°C
  • Nominal pressure: 16 bar
  • Paint: Epoxy 200µm, RAL 5017

Ball check valve RB101-D2VVOI-1″ (Art.-Nr.: 303-1015-xx)

  • 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″
  • Threaded ends BSP acc. to ISO 228-1 and NFE 03-005
  • Body: EN-GJS-400-15 (GGG40)
  • Ball: Aluminium + Viton coating
  • Gasket: Viton
  • Bolting: A2
  • Temp. (min./max.): -10°C to +150°C
  • Nominal pressure: 16 bar
  • Paint: Epoxy 200µm, RAL 5017

Type

Ball Check Valve

Sizes

1", 1 1/4", 1 1/2", 2", 2 1/2", 3"

Body material

GGG40

Pressure range

PN16

Ball material

Alu+NBR

Sealing

NBR

Connection

F/F
