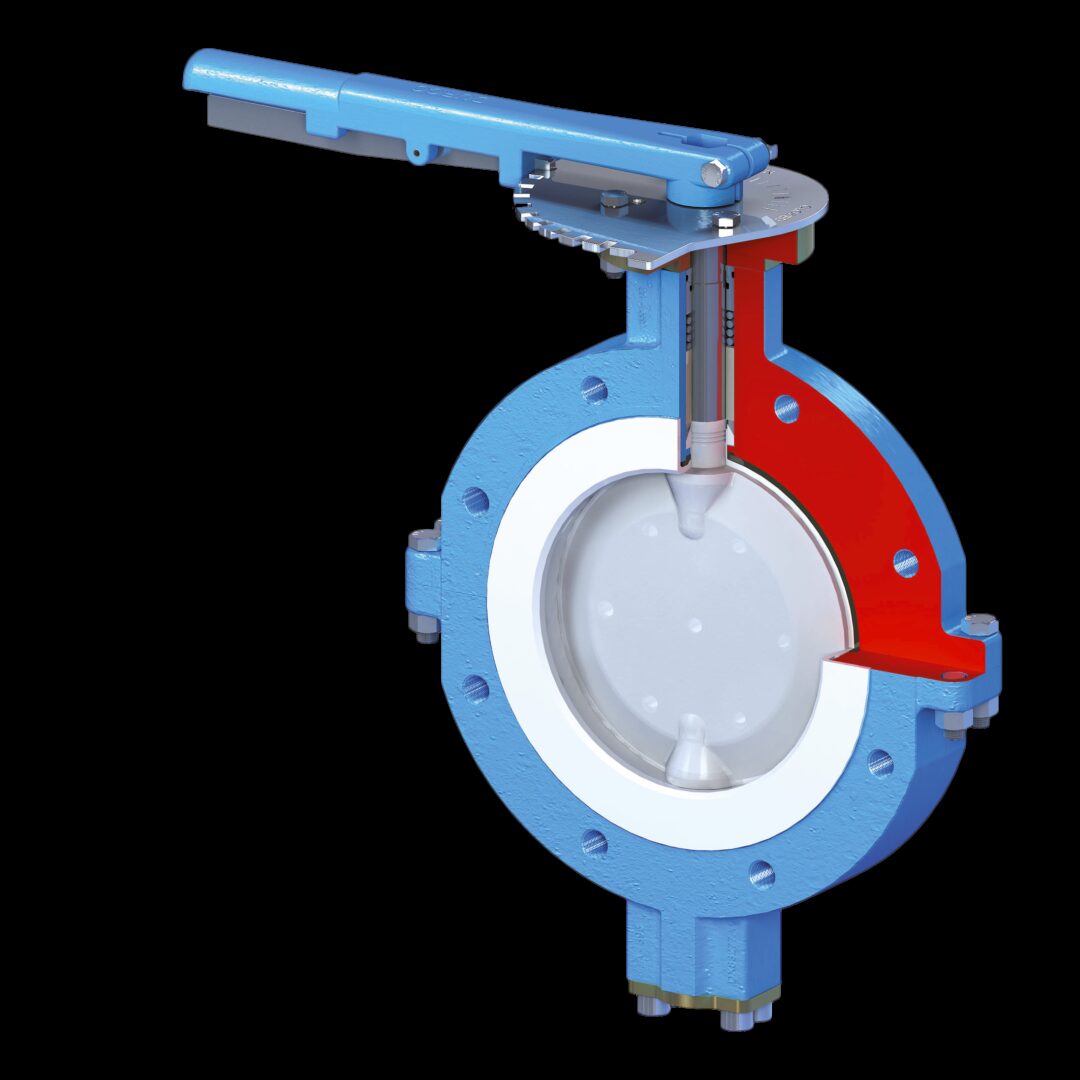

Thanks to advanced technology we can state firmly that the FLOWSERVE DURCO BTV butterfly valves keep chemical fluids in your process piping and out of the environment. A self-adjusting triple stem seal system assures no leakage to the atmosphere Viton seat energizer and concave PTFE liner design provide dependable consistent shutoff and closure torque. Spherical seat design of the disc and liner provides a 360° seal for long service life. The Viton energizer is isolated and protected in a machined groove of the valve body. The concave designed liner is recessed into the valve body and this reduces the possibility of torn liners due to cold flow into the valve waterway. Optionally available: UHMWP and Durlon II and PFA-conductive liner materials.
Butterfly valve BTL489V (Art. No.: 150-1510-xx)
- DN50, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600
- DURCO, PTFE lined, type BTV-2000
- LUG design
- Max. temperature: +177°C
- Nominal pressure: 10 bar
- Face to face acc. to EN 558, Row 20
- Assembly between flanges PN10 / PN16 or ANSI 150lbs
- Body: ductile iron EN-JS 1049 (GGG40.3)
- Disc & shaft: ductile iron EN-JS 1049 (GGG40.3) / PFA coated
- Liner: PTFE
- Energizer: Viton
- Operation: bare stem
Butterfly valve BTL480V (Art. No.: 150-1515-xx)
- DN50, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600
- DURCO, PFA-conductive lined, type BTV-2000
- LUG design
- Max. temperature: +177°C
- Nominal pressure: 10 bar
- Face to face acc. to EN 558, Line 20
- Assembly between flanges PN10 / PN16 or ANSI 150lbs
- Body: ductile iron EN-JS 1049 (GGG40.3)
- Disc & shaft: ductile iron EN-JS 1049 (GGG40.3) / PFA conductive coated
- Liner: PTFE conductive
- Energizer: Viton
- Operation: hand lever
Type
Butterfly Valve
Operations
Chainwheel, Electric Actuator, Pneumatic double-acting, Pneumatic single-acting, Lever, Topflange (ISO 5211), Gearbox with Handwheel
Sizes
DN50, DN80, DN100, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600, 2", 3", 4", 6", 8", 10", 12", 14", 16", 18", 20", 24"
Flange connection
PN10, ANSI 150, PN16
Face-to-face
DIN EN 558-1 Line 20
Body material
GGG40
Butterfly Disc
PFA coated
Disc sealing
PTFE
Pressure range
PN10
Lining/Coating
PTFE
Connection
Flanges
