Stainless steel ball valve type KH109

Threaded ball valve : budget price

FERGO Armaturen GmbH has a wide variety of different ball valves. These ball valves mainly differ in connection form, body material, maximum pressure approval and the available certificates (TA Luft, FireSafe, DVGW Gas, DVGW Trinkwasser). You can choose between flange-connection (DIN or ANSI), threaded ends (DIN or ANSI and female or male thread) and socket weld or butt weld ends. The available standard body materials are brass, steel and stainless steel. Special materials like e.g. titan and duplex are also available on request. Ball valves with ISO-top mounting flange (ISO 5211) can be automated with pneumatic or electric actuators. The different sizes, pressure stages and materials are shown on the datasheet, which can be downloaded on our website. For special executions please contact our sales department.

Ball valve: KH109-SSTHI (Art.-Nr.: 100-1016-xx)

• 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″
• Threaded ends F-F acc. to ISO 7-1 (EN 10226-1)
• Full port
• 2-piece body
• Body: 1.4408
• Ball: 1.4408
• Stem: 1.4408
• Ball seat: PTFE
• Temp. (min./max.): -25°C to +180 °C
• Max. pressure: 63bar
• Operation: handlever

Ball valve: KH109-SSTHZ (Art.-Nr.: 100-1056-xx)

• 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″
• Threaded ends M-F acc. to ISO 7-1 (EN 10226-1)
• Full port
• 2-piece body
• Body: 1.4408
• Ball: 1.4408
• Stem: 1.4408
• Ball seat: PTFE
• Temp. (min./max.): -25°C to +180 °C
• Max. pressure: 63bar
• Operation: handlever

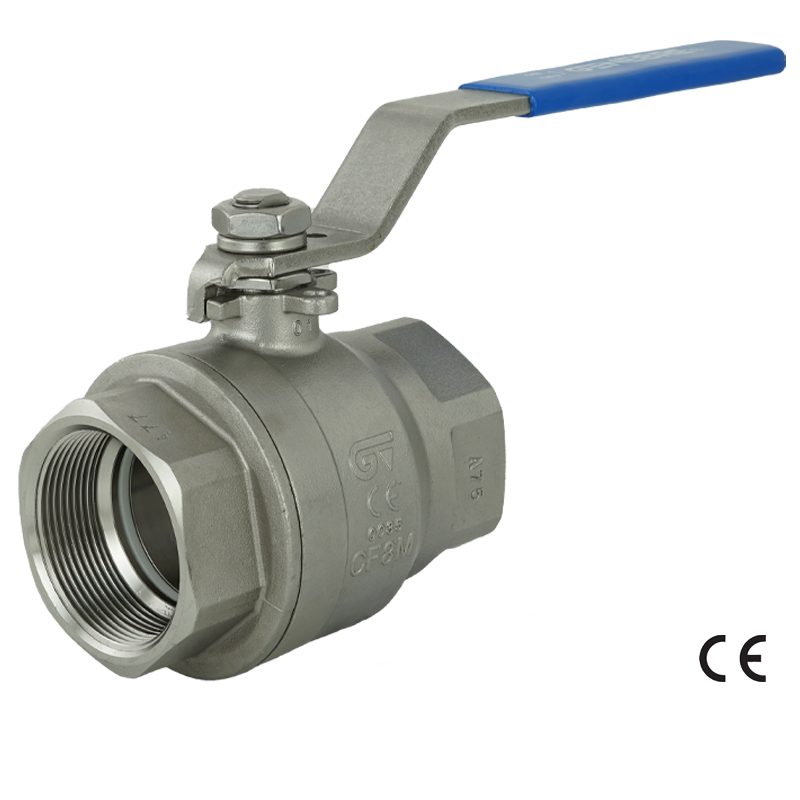

Ball valve: KH109-SSTHI (Art.-Nr.: 100-1033-xx)

• 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″
• Female thread ends acc. to ASME B1.20.1 NPT
• Full port
• 2-piece body
• Body: 1.4408 (CF8M)
• Ball: 1.4408 (CF8M)
• Stem: AISI 316
• Ball seat: PTFE + 15% G.F.
• Temp. (min./max.): -25°C to +180°C
• Max. pressure: 63bar
• Operation: handlever

Download “Ball Valve KH109”
