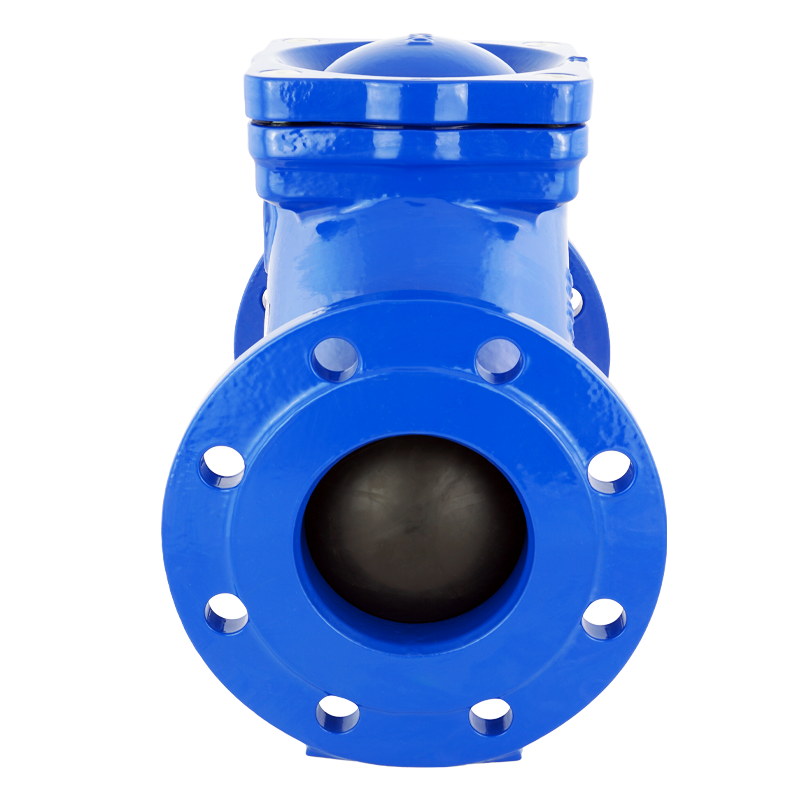

The ball check valve RB105 reliably avoids a backflow of the medium and, due to its ball which unclamps the whole pass, for polluted mediums, too. For this reason, ball check valves are often applied in waste water industries. We run these valves with different materials and coatings (EPDM, NBR, PTFE, Viton…). There is a large selection of ball check valves with different designs, materials and application areas. Feel free to contact our sales department to receive a suitable offer.
Ball check valve RB105-D2ANOF (Art.-Nr. 303-1006-xx)
- DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN500
- Body: EN-GJS-400-15 (GGG40)
- Ball: Aluminium, NBR coated
- Gasket: NBR
- Medium temperature: max. +70°C
- Face to face length acc. EN 558-1, Line 48
- Flanges acc. EN 1092-2 PN10
Ball check valve RB105-D2ANOF (Art.-Nr.: 303-1016-xx)
- DN200, DN250, DN300, DN350, DN400, DN500
- Body: EN-GJS-400-15 (GGG40)
- Ball: Aluminium, NBR coated
- Gasket: NBR
- Medium temperature: max. +70°C
- Face to face length acc. EN 558-1, Line 48
- Flanges acc. EN 1092-2 PN16
Type
Ball Check Valve
Sizes
DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300
Body material
GG25, GGG40
Pressure range
PN16, PN10
Ball material
Alu+NBR
Sealing
NBR
Connection
Flanges
