3-Piece ball valve type KH154

3-piece stainless steel ball valve with handlever, pneumatic & electric actuator

Stainless steel ball valve: electric & pneumatic

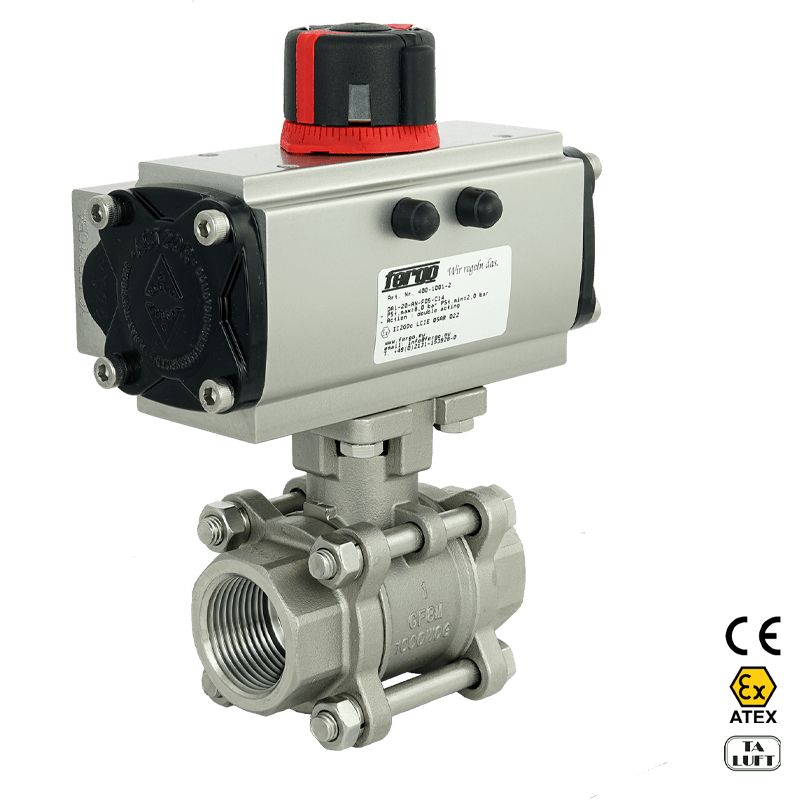

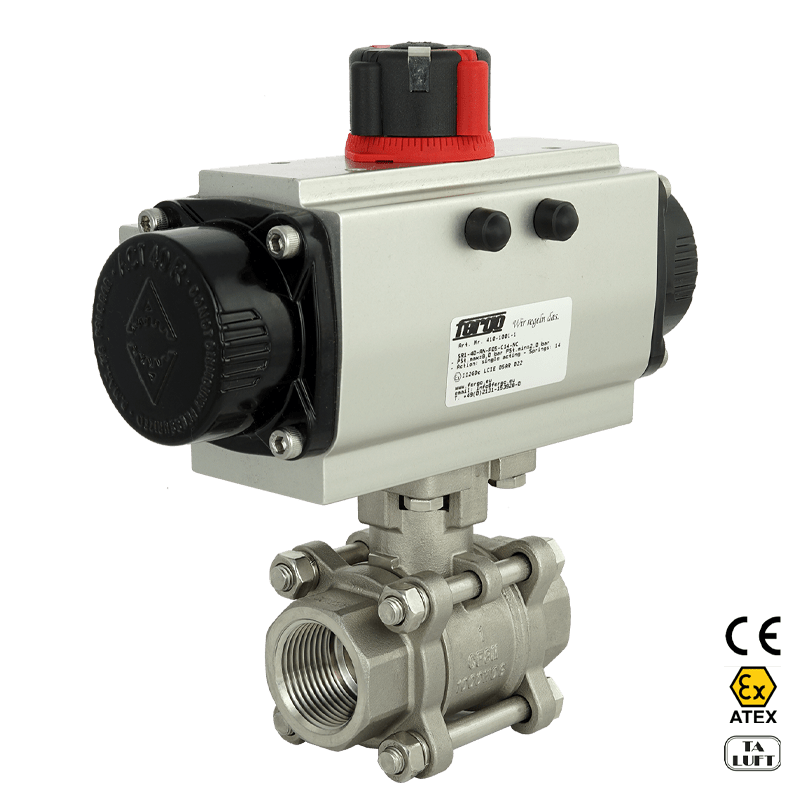

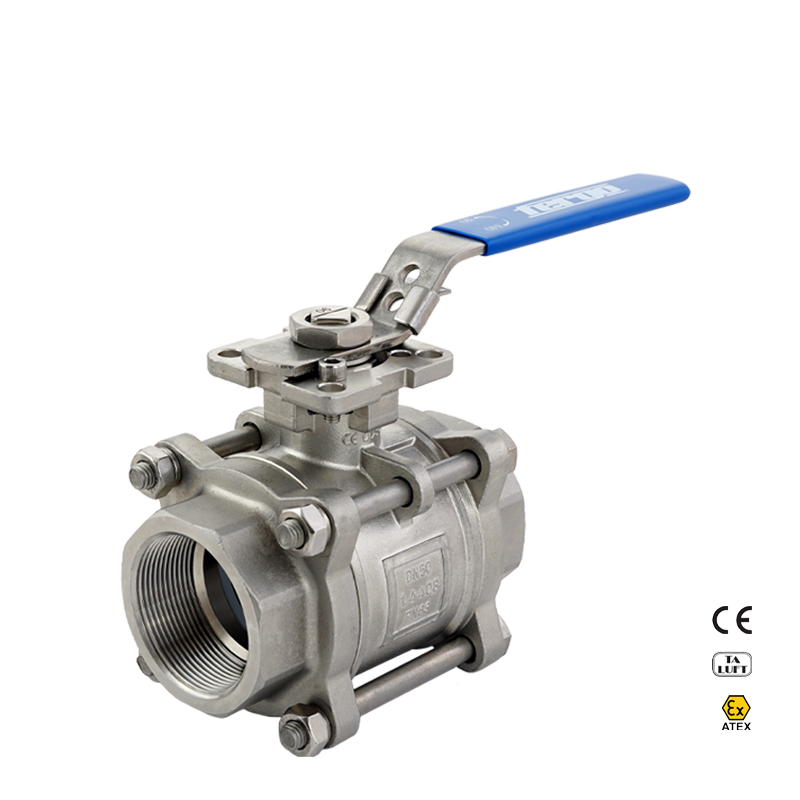

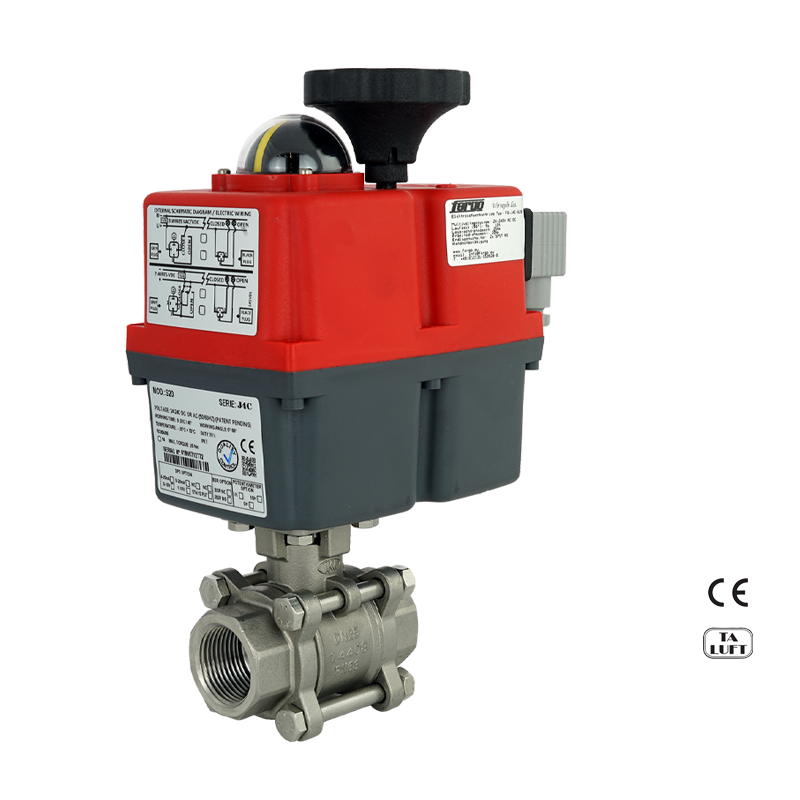

Our ball valve KH154 is a 3 piece ball valve, which is available with different connections, is a real allrounder. We offer it with socket weld or butt weld ends and also with threaded ends (DIN/ISO or ASME B1.20.1/BS21). Because of its high pressure range, its PTFE-ball seats, its stainless or carbon steel body and its ISO-top mounting flange for quarter-turn-actuators our KH154 can be used for almost all standard applications. It is equipped with a lever, but we also offer many other different actuator versions: pneumatic (single and double acting) or electric. Due to its three-piece body construction, it is very easy to maintain. Outstanding features: TA Luft and antistatic device. The different sizes, pressure stages and materials are shown on the datasheet, which can be downloaded on our website. For special executions please contact our sales department.

Ball valve KH154-SSTHI (Art.-Nr.: 100-1114-xx)

  • 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″
  • Threaded ends F-F acc. to ISO 228-1
  • Full port
  • 3 piece body
  • Body: CF8M (1.4408)
  • Caps: CF8M (1.4408)
  • Ball: CF8M (1.4408)
  • Ball seat: TFM 1600
  • Working temperature: -29°C to +175°C
  • Max. working pressure 63 kg/cm2
  • Direct mounting actuator ISO 5211
  • Approval: TA-Luft
  • ATEX Ex II 2 GD c T3
  • SIL IEC 61508-1/2/4-7:2010 & IEC 61511-1:2016
  • Operation: handlever, gearbox, electric & pneumatic actuator
  • Accessories and options: Limit switch box, Solenoid/pilot valve, Positioner

Ball valve KH154-SSTHB (Art.-Nr.: 100-1115-xx)

  • 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″
  • Buttweld ends acc. to ANSI B16.25
  • Full port
  • 3 piece body
  • Body: CF8M (1.4408)
  • Caps: CF3M (1.4404)
  • Ball: CF8M (1.4408)
  • Ball seat: TFM 1600
  • Working temperature: -29°C to +175°C
  • Max. working pressure 63 kg/cm2
  • Direct mounting actuator ISO 5211
  • Approval: TA-Luft
  • ATEX Ex II 2 GD c T3
  • SIL IEC 61508-1/2/4-7:2010 & IEC 61511-1:2016
  • Operation: handlever, gearbox, electric & pneumatic actuator
  • Accessories and options: Limit switch box, Solenoid/pilot valve, Positioner

Type

Ball Valve

Operations

Electric Actuator, Pneumatic double-acting, Pneumatic single-acting, Lever, Topflange (ISO 5211), Handle

Sizes

1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"

Body material

1.4408, 1.0619, ASTM A351, A216 WCB

Packing gland

PTFE

Ball material

1.4408

Ball seat

PTFE

Connection

F/F, Socket weld ends, Butt weld ends, Flanges

Threads

ISO 228, DIN 2999, ISO 7/1, ASME B1.20.1, BS21

Certifications

TA-Luft
