Electric Actuators J2, J3, J3C J4C electric actuator
Ideal for valves with low nominal sizes: The part-turn actuators J2, J3, J3C (old model series) and J4C – our new series with brushless motor for even longer lifespan. They are available in different torque ratings and additionally variously expandable. In the field of actuator technology, FERGO works together with all well-known manufacturers. We design the actuators according to your instructions, mount them onto the valve and adjust them before sending them to you – Plug-and-Play! Please contact our sales department to get further information about the various possibilities of electric actuators.
Online Shop
Actuator FG-J4C standard
Electric part-turn actuator Type: FG-J4C-S20 (Art.-Nr.: 425-1240)
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,16A – 1,28A
• Runtime (90°): 9s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 25Nm
• Working torque: 20Nm
• Ambient temperature: -20°C to +70°C
• Flange: F03/F04/F05
• Square (Star): 14mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S35 (Art.-Nr.: 425-1250)
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,20A – 1,67A
• Runtime (90°): 9s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 38Nm
• Working torque: 35Nm
• Ambient temperature: -20°C to +70°C
• Flange: F03/F04/F05
• Square (Star): 14mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S55 (Art.-Nr.: 425-1260)
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,21A – 1,98A
• Runtime (90°): 13s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 60Nm
• Working torque: 55Nm
• Ambient temperature: -20°C to +70°C
• Flange: F05/F07
• Square (Star): 17mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S85 (Art.-Nr.: 425-1270)
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,18A – 1,50A
• Runtime (90°): 29s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 90Nm
• Working torque: 85Nm
• Ambient temperature: -20°C to +70°C
• Flange: F05/F07
• Square (Star): 17mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S140 (Art.-Nr.: 425-1280)
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,44A – 3,30A
• Runtime (90°): 25s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 170Nm
• Working torque: 140Nm
• Ambient temperature: -20°C to +70°C
• Flange: F07/F10
• Square (Star): 22mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater

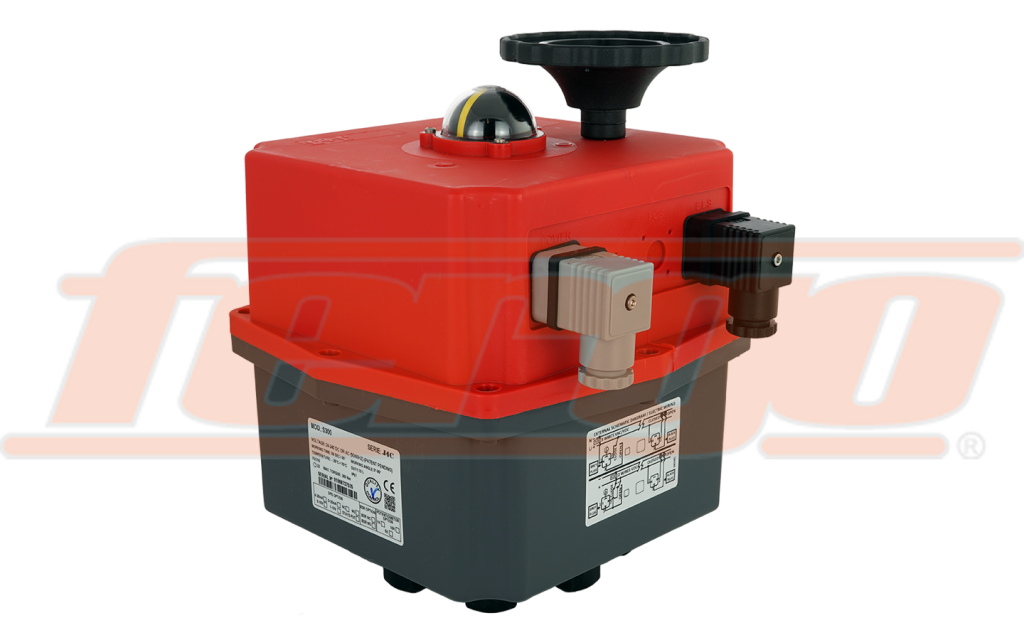

Electric part-turn actuator Type: FG-J4C-S300 (Art.-Nr.: 425-1290)
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,47A – 3,30A
• Runtime (90°): 48s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 350Nm
• Working torque: 300Nm
• Ambient temperature: -20°C to +70°C
• Flange: F07/F10
• Square (Star): 22mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Actuator FG-J4C with positioner (DPS)
Electric part-turn actuator Type: FG-J4C-S20-DPS (Art.-Nr.: 425-1242)
• With integrated DPS positioner 4-20mA [0-10V on request]
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,16A – 1,28A
• Runtime (90°): 9s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 25Nm
• Working torque: 20Nm
• Ambient temperature: -20°C to +70°C
• Flange: F03/F04/F05
• Square (Star): 14mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S35-DPS (Art.-Nr.: 425-1252)
• With integrated DPS positioner 4-20mA [0-10V on request]
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,20A – 1,67A
• Runtime (90°): 9s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 38Nm
• Working torque: 35Nm
• Ambient temperature: -20°C to +70°C
• Flange: F03/F04/F05
• Square (Star): 14mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S55-DPS (Art.-Nr.: 425-1262)
• With integrated DPS positioner 4-20mA [0-10V on request]
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,21A – 1,98A
• Runtime (90°): 13s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 60Nm
• Working torque: 55Nm
• Ambient temperature: -20°C to +70°C
• Flange: F05/F07
• Square (Star): 17mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S85-DPS (Art.-Nr.: 425-1272)
• With integrated DPS positioner 4-20mA [0-10V on request]
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,18A – 1,50A
• Runtime (90°): 29s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 90Nm
• Working torque: 85Nm
• Ambient temperature: -20°C to +70°C
• Flange: F05/F07
• Square (Star): 17mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S140-DPS (Art.-Nr.: 425-1282)
• With integrated DPS positioner 4-20mA [0-10V on request]
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,44A – 3,30A
• Runtime (90°): 25s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 170Nm
• Working torque: 140Nm
• Ambient temperature: -20°C to +70°C
• Flange: F07/F10
• Square (Star): 22mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S300-DPS (Art.-Nr.: 425-1292)
• With integrated DPS positioner 4-20mA [0-10V on request]
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,47A – 3,30A
• Runtime (90°): 48s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 350Nm
• Working torque: 300Nm
• Ambient temperature: -20°C to +70°C
• Flange: F07/F10
• Square (Star): 22mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Actuator FG-J4C with battery pack (fail safe)
Electric part-turn actuator Type: FG-J4C-S20-BSR (Art.-Nr.: 425-1241)
• With integrated BSR battery pack
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,16A – 1,28A
• Runtime (90°): 9s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 25Nm
• Working torque: 20Nm
• Ambient temperature: -20°C to +70°C
• Flange: F03/F04/F05
• Square (Star): 14mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S35-BSR (Art.-Nr.: 425-1251)
• With integrated BSR battery pack
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,20A – 1,67A
• Runtime (90°): 9s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 38Nm
• Working torque: 35Nm
• Ambient temperature: -20°C to +70°C
• Flange: F03/F04/F05
• Square (Star): 14mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S55-BSR (Art.-Nr.: 425-1261)
• With integrated BSR battery pack
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,21A – 1,98A
• Runtime (90°): 13s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 60Nm
• Working torque: 55Nm
• Ambient temperature: -20°C to +70°C
• Flange: F05/F07
• Square (Star): 17mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S85-BSR (Art.-Nr.: 425-1271)
• With integrated BSR battery pack
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,18A – 1,50A
• Runtime (90°): 29s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 90Nm
• Working torque: 85Nm
• Ambient temperature: -20°C to +70°C
• Flange: F05/F07
• Square (Star): 17mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S140-BSR (Art.-Nr.: 425-1281)
• With integrated BSR battery pack
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,44A – 3,30A
• Runtime (90°): 25s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 170Nm
• Working torque: 140Nm
• Ambient temperature: -20°C to +70°C
• Flange: F07/F10
• Square (Star): 22mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S300-BSR (Art.-Nr.: 425-1291)
• With integrated BSR battery pack
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,47A – 3,30A
• Runtime (90°): 48s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 350Nm
• Working torque: 300Nm
• Ambient temperature: -20°C to +70°C
• Flange: F07/F10
• Square (Star): 22mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Actuator FG-J4C with positioner (DPS) and battery pack (fail safe)
Electric part-turn actuator Type: FG-J4C-S20-DPS+BSR (Art.-Nr.: 425-1243)
• With positioner 4-20mA [0-10V on request] and battery pack
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,16A – 1,28A
• Runtime (90°): 9s ± 10%
• Heater: 3,5W
• Duty cicle: 75% • Protection: IP67
• Break out torque: 25Nm
• Working torque: 20Nm
• Ambient temperature: -20°C to +70°C
• Flange: F03/F04/F05
• Square (Star): 14mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S35-DPS+BSR (Art.-Nr.: 425-1253)
• With positioner 4-20mA [0-10V on request] and battery pack
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,20A – 1,67A
• Runtime (90°): 9s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 38Nm
• Working torque: 35Nm
• Ambient temperature: -20°C to +70°C
• Flange: F03/F04/F05
• Square (Star): 14mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S55-DPS+BSR (Art.-Nr.: 425-1263)
• With positioner 4-20mA [0-10V on request] and battery pack
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,21A – 1,98A
• Runtime (90°): 13s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 60Nm • Working torque: 55Nm
• Ambient temperature: -20°C to +70°C
• Flange: F05/F07
• Square (Star): 17mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S85-DPS+BSR (Art.-Nr.: 425-1273)
• With positioner 4-20mA [0-10V on request] and battery pack
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,18A – 1,50A
• Runtime (90°): 29s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 90Nm
• Working torque: 85Nm
• Ambient temperature: -20°C to +70°C
• Flange: F05/F07
• Square (Star): 17mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S140-DPS+BSR (Art.-Nr.: 425-1283)
• With positioner 4-20mA [0-10V on request] and battery pack
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,44A – 3,30A
• Runtime (90°): 25s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 170Nm
• Working torque: 140Nm
• Ambient temperature: -20°C to +70°C
• Flange: F07/F10
• Square (Star): 22mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Electric part-turn actuator Type: FG-J4C-S300-DPS+BSR (Art.-Nr.: 425-1293)
• With positioner 4-20mA [0-10V on request] and battery pack
• Brushless motor
• Multivoltage system: 24 – 240V AC/DC, 50/60Hz
• Current consumption: 0,47A – 3,30A
• Runtime (90°): 48s ± 10%
• Heater: 3,5W
• Duty cicle: 75%
• Protection: IP67
• Break out torque: 350Nm
• Working torque: 300Nm
• Ambient temperature: -20°C to +70°C
• Flange: F07/F10
• Square (Star): 22mm
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
New series: J4C
Download „Electric Actuator J4C Overview“
Download „Electric Actuator J4C Manual“
Old series: J2, J3, J3C
