KL100/KT100 3-Way Ball Valve

3-way brass ball valve

3-Way Ball Valve Brass

FERGO Armaturen GmbH has a wide variety of different ball valves. These ball valves mainly differ in connection form, body material, maximum pressure approval and the available certificates (TA Luft, FireSafe, DVGW Gas, DVGW Trinkwasser). You can choose between flange-connection (DIN or ANSI), threaded ends (DIN or ANSI and female or male thread) and socket weld or butt weld ends. The available standard body materials are brass, steel and stainless steel. Special materials like e.g. titan and duplex are also available on request. Ball valves with ISO-top mounting flange (ISO 5211) can be automated with pneumatic or electric actuators. The different sizes, pressure stages and materials are shown on the datasheet, which can be downloaded on our website. For special executions please contact our sales department.

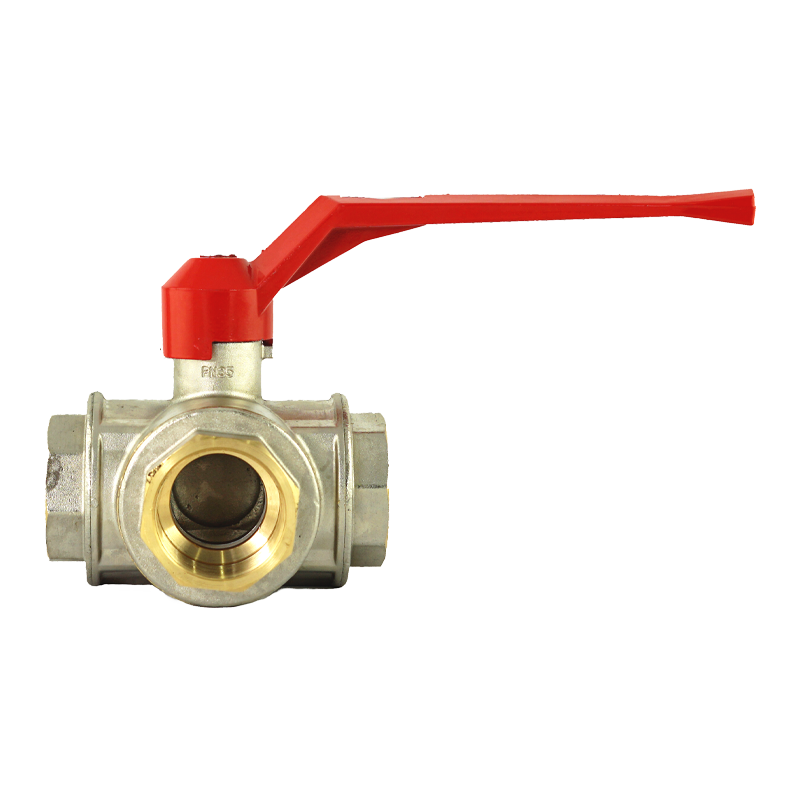

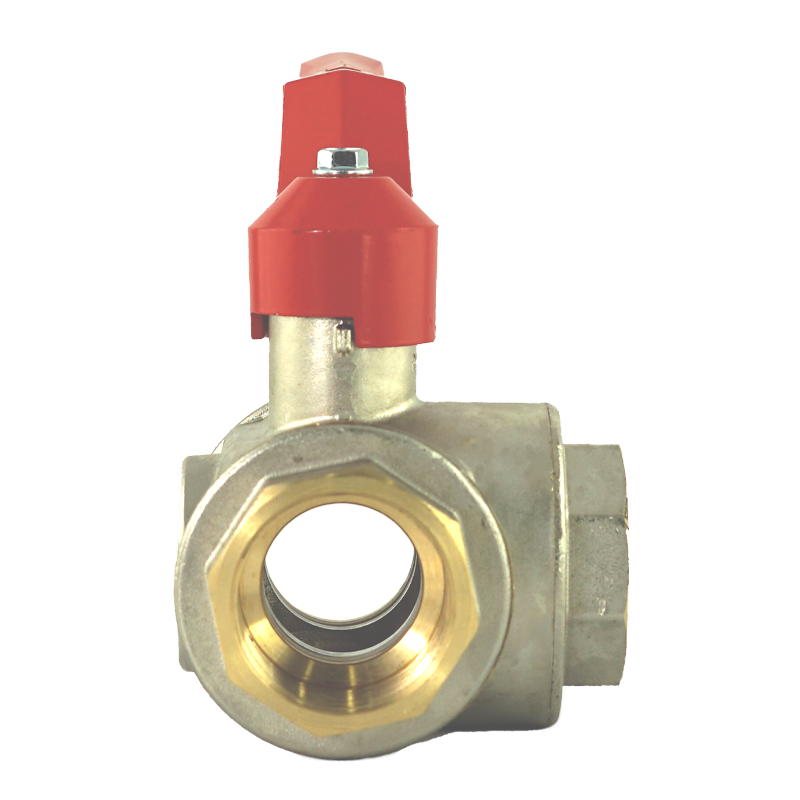

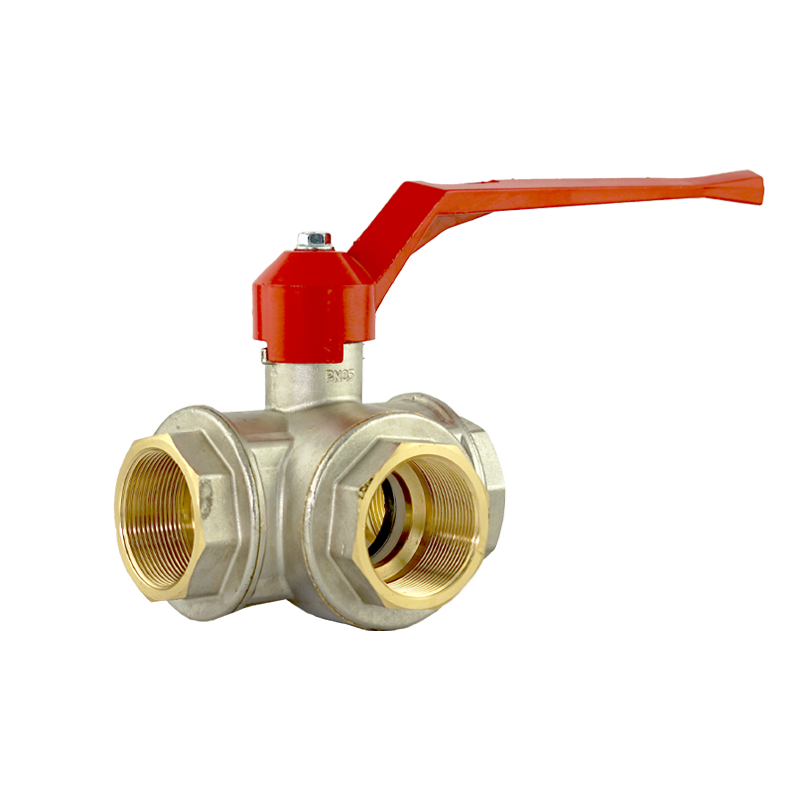

Ball valve KL100-MMTLI (Art.-Nr.: 101-1000-xx)

  • 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
  • Design: 3-way
  • L-port
  • Threads: ISO 228 F-F-F
  • Full bore
  • Body: brass, nickel-plated
  • Ball: brass, chrome-plated
  • Ball seat: PTFE
  • Stem seal: NBR
  • Max. pressure: 25 bar
  • Operation: Handlever

Ball valve KT100-MMTLI (Art.-Nr.: 102-1000-xx)

  • 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
  • Design: 3-way
  • T-port
  • Threads: ISO 228 F-F-F
  • Full bore
  • Body: brass, nickel-plated
  • Ball: brass, chrome-plated
  • Ball seat: PTFE
  • Stem seal: FKM/NBR
  • Max. pressure: 25 bar
  • Operation: Handlever

Type

Ball Valve

Operations

Lever

Sizes

1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Body material

Brass

Pressure range

PN25

Ball material

Brass

Ball seat

PTFE

Connection

F/F/F

Threads

ISO 228
