Ball Check Valve – Flanged & Threaded
The ball check valve RB106 reliably avoids a backflow of the medium and, due to its ball which unclamps the whole pass, for polluted mediums, too. For this reason, ball check valves are often applied in wastewater industries. We run these valves with different materials and coatings (EPDM, NBR, PTFE, Viton…). There is a large selection of ball check valves with different designs, materials and application areas. Feel free to contact our sales department to receive a suitable offer.
Stainless steel ball check-valve

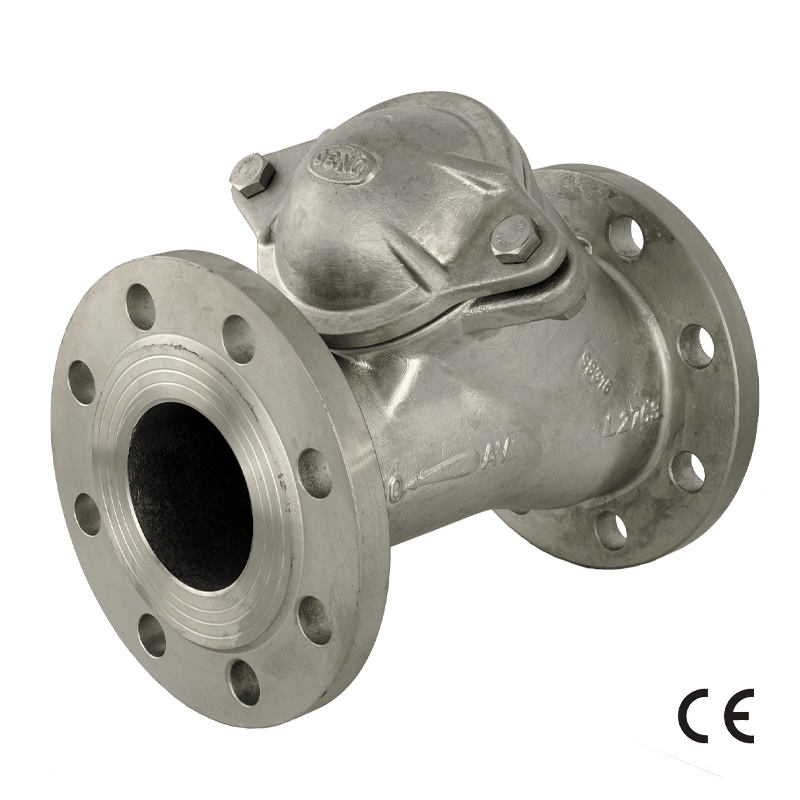

Ball check valve RB106-SLNOF (Art.-Nr.: 303-1008-xx)
- DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300
- Face to face F6
- Installation between flange acc. DIN PN16
- Body and cover: AISI316
- Ball: steel encapsulated with NBR rubber
- Temp. (min./max.): -20°C to +80°C
- max. pressure: 16 bar
Ball check valve RB106-SLNOI (Art.-Nr.: 303-1018-xx)
- 1 1/4″, 1 1/2″, 2″
- Threaded ends BSP
- End to end length =140mm
- Body and cover: AISI316
- Ball: steel encapsulated with NBR rubber
- Temp. (min./max.): -20°C to +80°C
- max. pressure: 16 bar
Type
Ball Check Valve
Sizes
DN32, DN40, DN50, DN65, DN80, DN100, (Larger on request)
Flange connection
PN10, PN16
Body material
1.4401
Pressure range
PN16
Ball material
Alu+NBR
Sealing
NBR
Connection
F/F, Flanges
