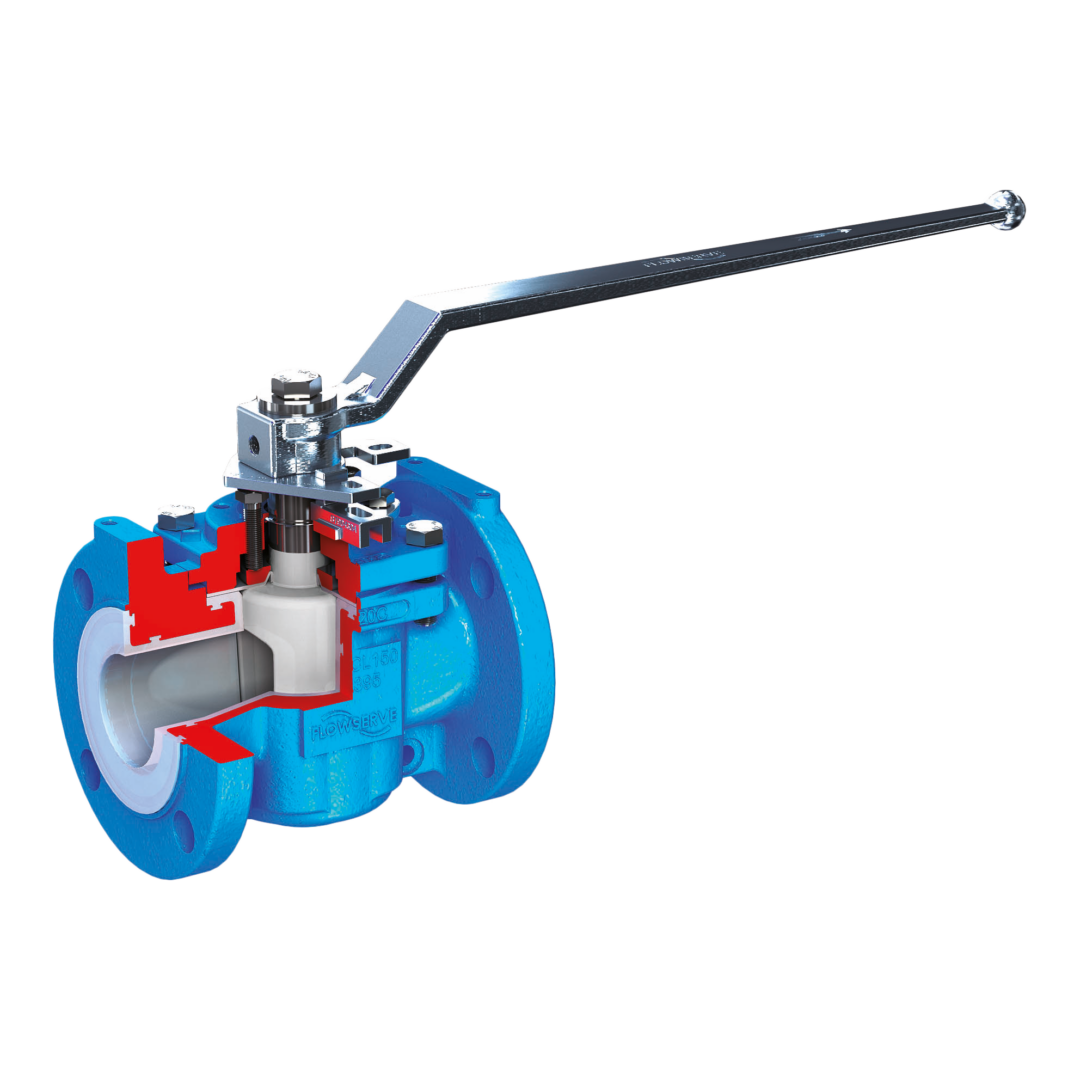

FLOWSERVE DURCO T4E1 Plug Valve

PFA lined plug valve according ANSI class 150

Flowserve Durco Plug Valve T4E

The FLOWSERVE DURCO T4E plug valves are designed and developed with the latest technology and therefore very suitable for the chemical process industries and available in the ANSI Class 150 and 300 as well as DIN Class PN16 and a maximum temperature of 204°C. The T4E lined plug valves provide maximum corrosion resistance and the elimination of product contamination at reasonable costs. PFA body liner is well anchored against the body using machined and cast T-slots and the solid encapsulated/anchored PFA-plug liner material ensures a strong adhesion. This makes the DURCO T4E plug valve series so suitable for extreme service and vacuum conditions. A large sealing surface guarantees a bubble-tight shut-off. A secondary dynamic self-adjusting, self-energized PFA reverse lip diaphragm prevents stem leakage. You never replace valve seats; you only reseat the plug with a quick and easy in-line adjustment. The standard material of construction is ductile cast iron. However, stainless steel valve bodies can be made available upon request. Optional: stainless steel diaphragm support.

DURCO PFA lined plug valve T4E1, 150lbs (Art.-Nr.: 120-1210-xx)

  • 1/2″, 3/4″, 1″, 1 1/2″, 2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″, 14″
  • Reduced bore design
  • Flanged connection acc. to ASME B16.5 (150lbs)
  • Face-to-face acc. to ASME B16.10 (short pattern)
  • Body: ductile iron EN-JS1049 / A395 Gr. 60-40-18
  • Plug: ductile iron EN-JS1049 / A395 Gr. 60-40-18
  • Top cap: ductile iron EN-JS1049 / A395 Gr. 60-40-18
  • Diaphragm: PFA
  • Liner: PFA
  • Fasteners: ASTM A193 Gr.B7
  • Operation: by hand

Type

Plug Valve

Operations

Electric Actuator, Pneumatic double-acting, Pneumatic single-acting, Lever, Topflange (ISO 5211), Gearbox with Handwheel

Sizes

1/2", 3/4", 1", 1 1/2", 2", 3", 4", 6"

Flange connection

ANSI 150

Face-to-face

ANSI B 16.10, short

Body material

GGG40+PFA

Pressure range

Class 150

Diaphragm

PFA

Lining/Coating

PFA

Connection

Flanges
