3-Way ball Valve stainless steel type KL103/KT103

3-Way Ball Valve: L & T Bore

The KL103 (L-bore) as well as the KT103 (T-bore) both are high-quality ball valves made of stainless steel with a socket connection, they are easy to automate and integrate into your valve due to the ISO-top mounting flange. We also offer special execution ball valves made of special material for extremely high system pressure and high temperatures. Feel free to contact our sales department and we will advise you and create an offer which of course is not binding. The different sizes, pressure stages and materials are shown on the datasheet, which can be downloaded on our website.

Ball valve KL103-SSTHI (Art.-Nr.: 101-1002-xx)

• 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″
• Design: 3-way
• L-port
• Female thread ends acc. to ISO 7-1 (EN 10226-1)
• Body: 1.4408, shot blasting + pickling
• Ball: 1.4408
• Stem: AISI 316
• Ball seals: PTFE +15% G.F.
• Stem packing: PTFE
• Working temperature (min./max.): -25°C to +180°C
• Max. working pressure: 63 bar
• Blow-out proof stem and antistatic device

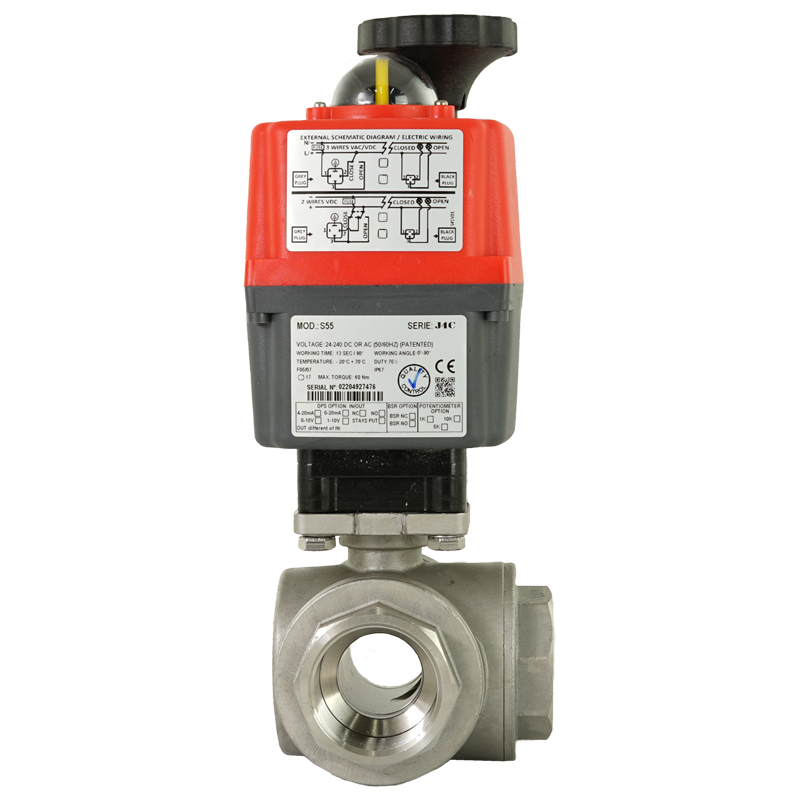

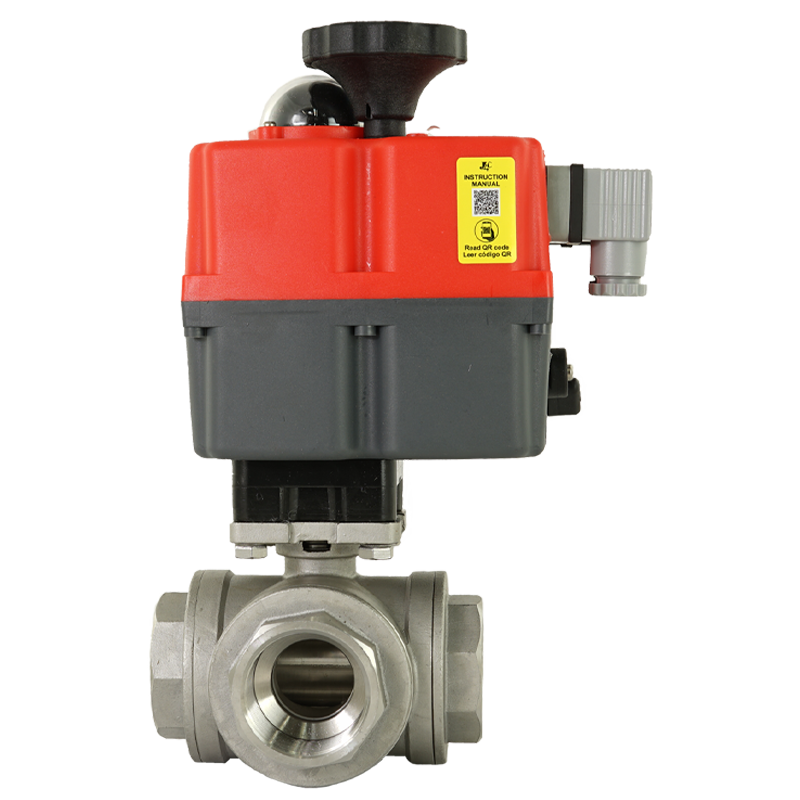

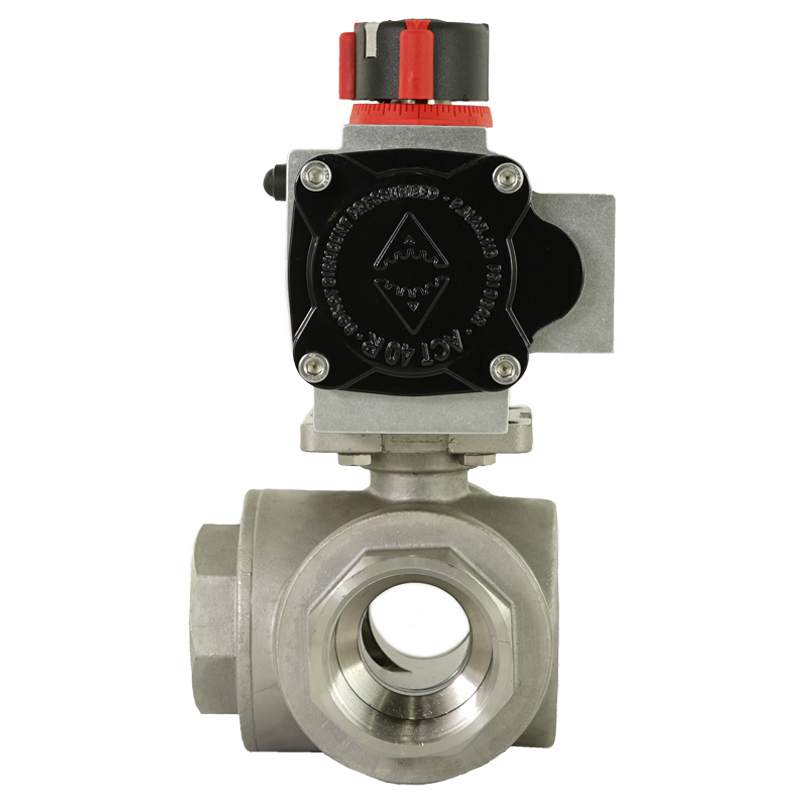

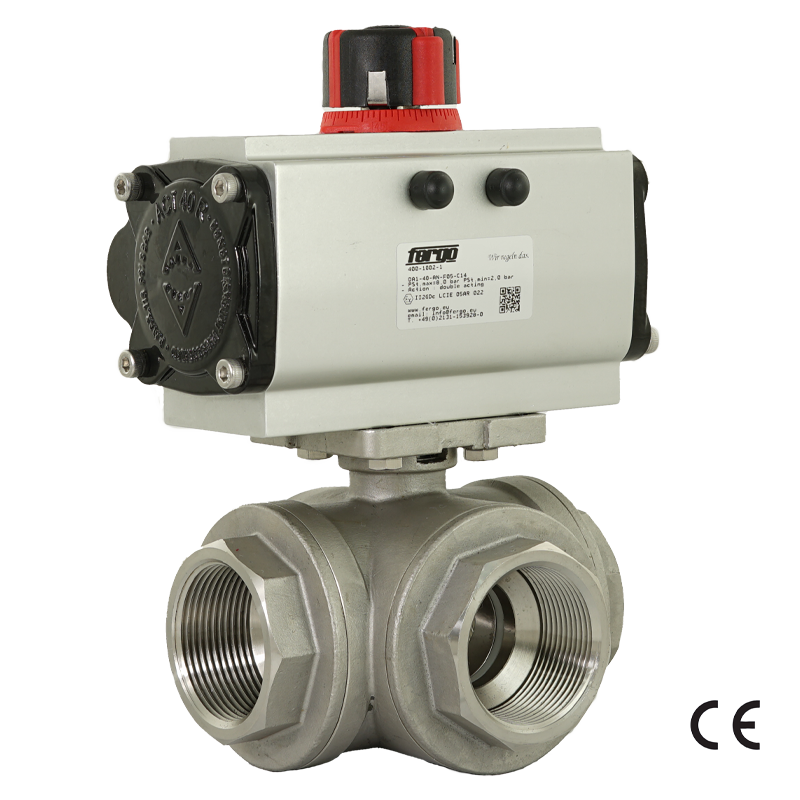

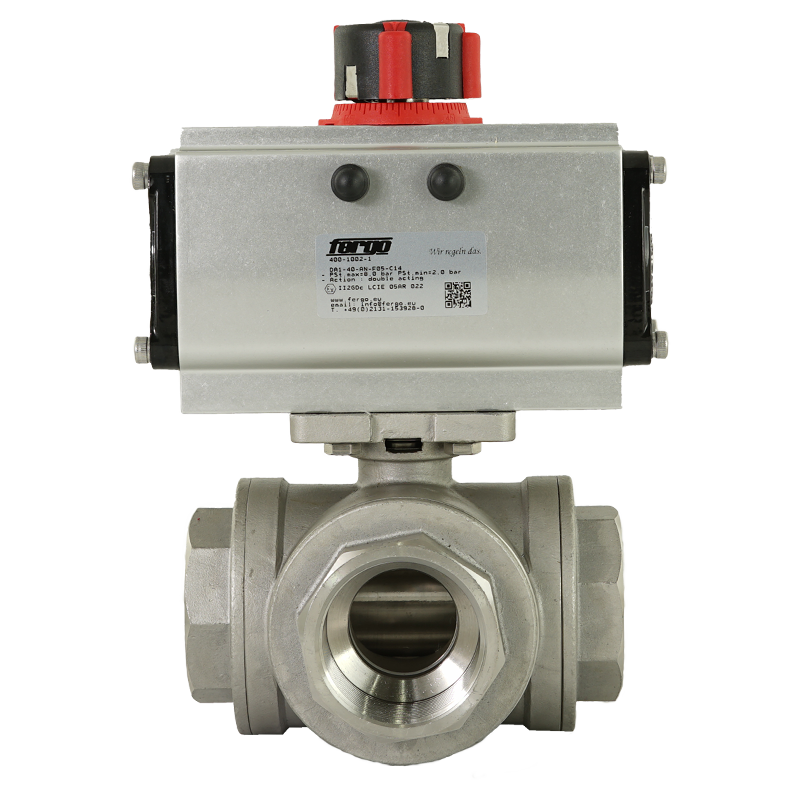

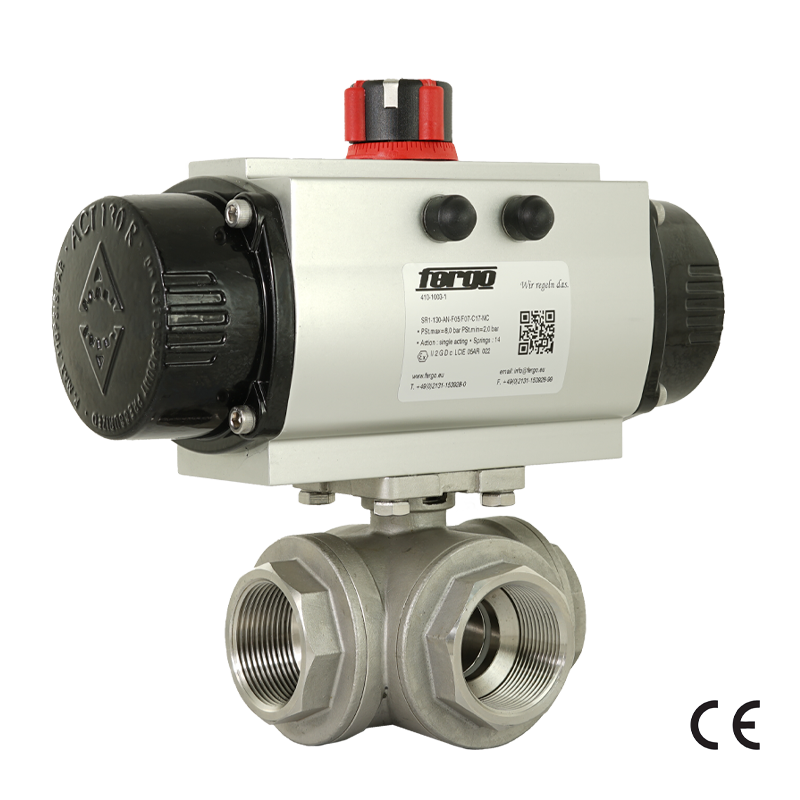

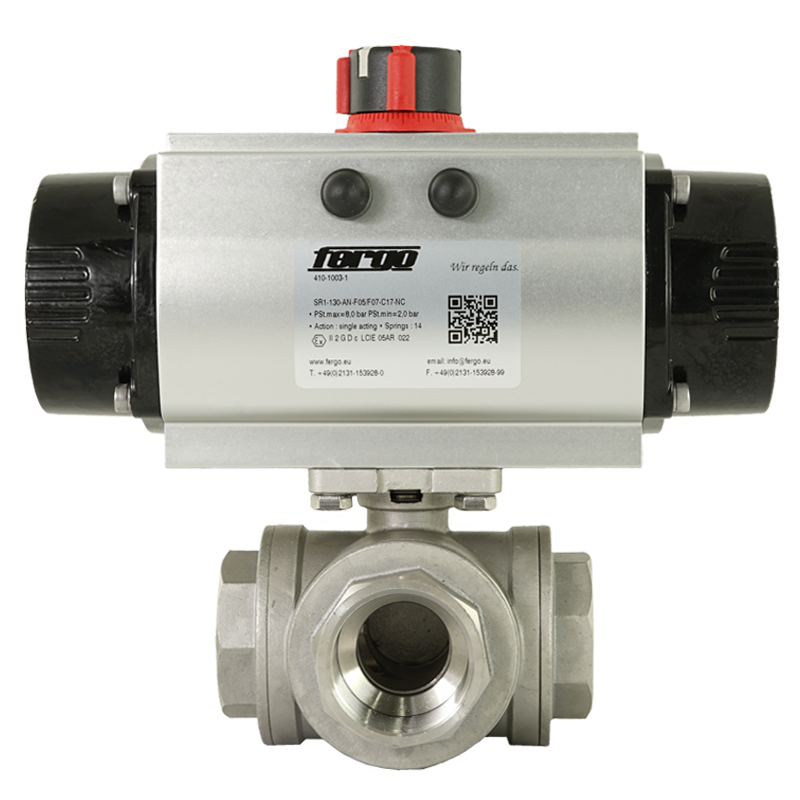

• Operation: hand lever, electric & pneumatic actuator
• Accessories and options: Limit switch box, Solenoid/pilot valve, Positioner

Ball valve KT103-SSTHI (Art.-Nr.: 102-1002-xx)

• 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″
• Design: 3-way
• T-port
• Female thread ends acc. to ISO 7-1 (EN 10226-1)
• Body: 1.4408, shot blasting + pickling
• Ball: 1.4408
• Stem: AISI 316
• Ball seals: PTFE +15% G.F.
• Stem packing: PTFE
• Working temperature (min./max.): -25°C to +180°C
• Max. working pressure: 63 bar
• Blow-out proof stem and antistatic device
• Operation: hand lever, electric & pneumatic actuator
• Accessories and options: Limit switch box, Solenoid/pilot valve, Positioner

Download “Ball Valve KL103 & KT103”
