Flanged Ends RD100
A foot valve consists of a standard check valve with a filter which is mounted in front. Foot valves are generally used for the intake of liquids; the filter protects against pollution and the check valve prevents the medium from flowing back to the source. We have foot valves made of different materials and with different mesh sizes. Feel free contact us if you are looking for a special design.

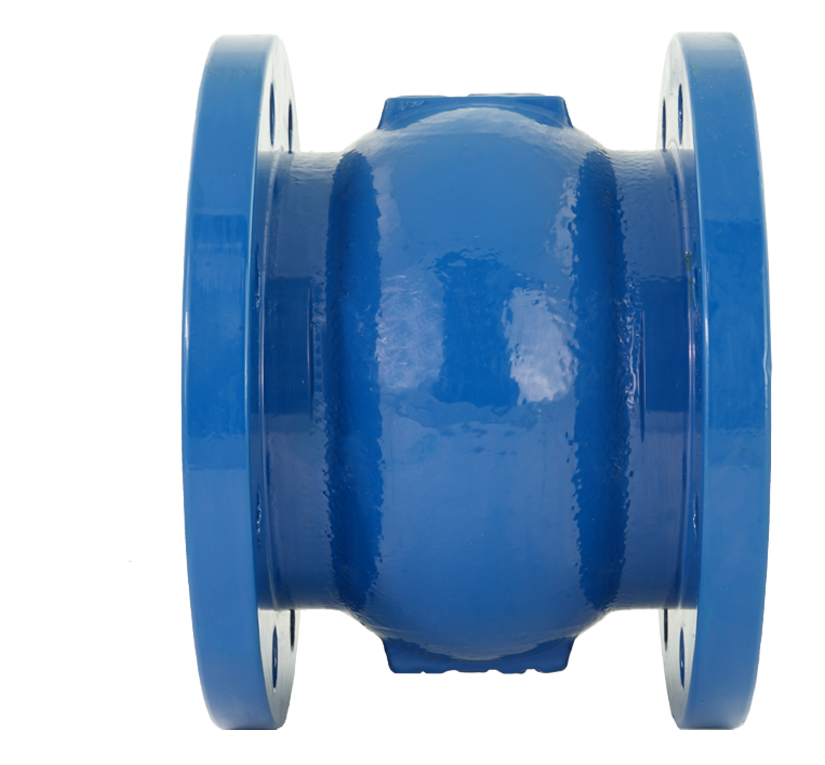

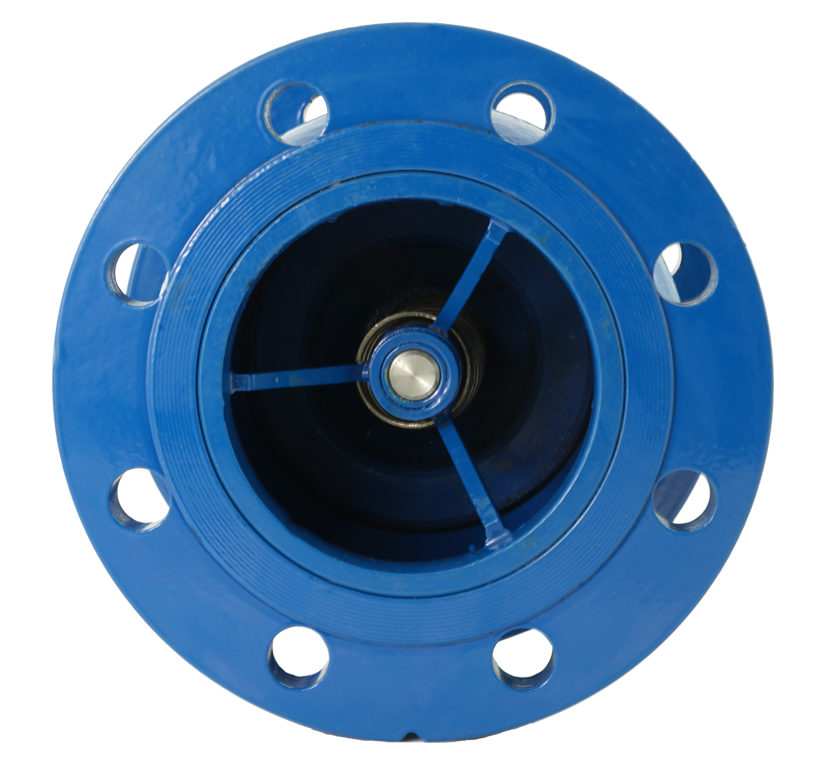

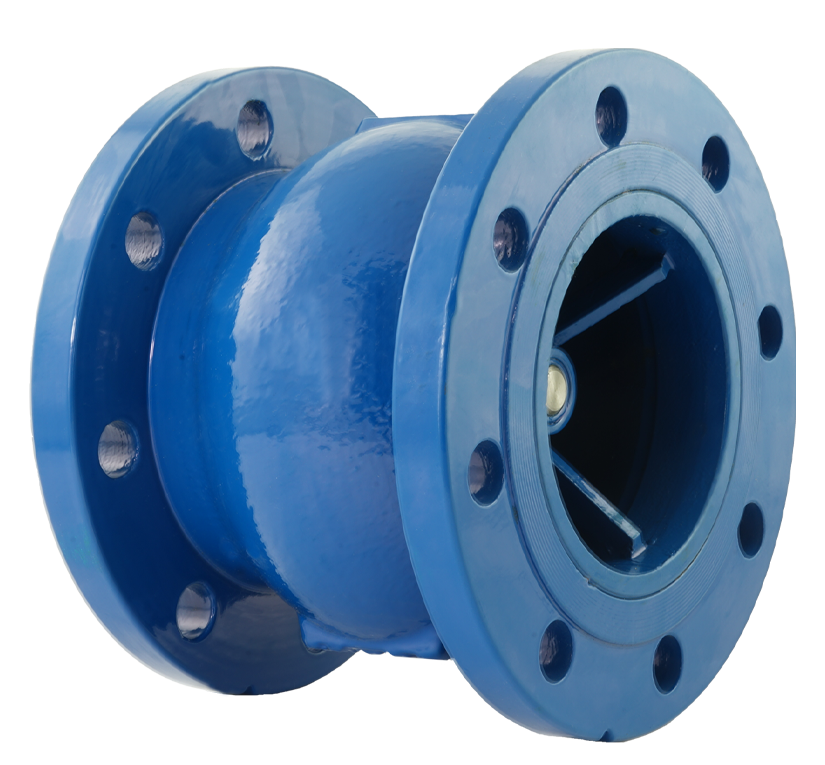

Axial check valve RD100-CD2EFF (Art.-Nr.: 304-1000-xx)
• DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN500
• Connection: flanged PN10/PN16
• Body: EN-GJL-250 (GG25)
• Disc / Guide: EN-GJS-400-15 (GGG40)
• Shaft / Spring: AISI 316
• Seat: EPDM
• Temp.(min./max.): -10°C/+80°C
• Max. working pressure: 16 bar
Type
Check Valve
Sizes
DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400
Flange connection
PN10, ANSI 150, PN16, PN25
Body material
GG25, GGG40, Duplex
Disc
GGG40, Duplex
Spring
1.4301, Inconel
Pressure range
PN25, PN16, PN10, Class 150
Sealing
EPDM, Viton
Connection
Flanges
