A foot valve consists of a standard check valve with a filter which is mounted in front. Foot valves are generally used for the intake of liquids; the filter protects against pollution and the check valve prevents the medium from flowing back to the source. We have foot valves made of different materials and with different mesh sizes. Fell free contact us if you are looking for a special design.

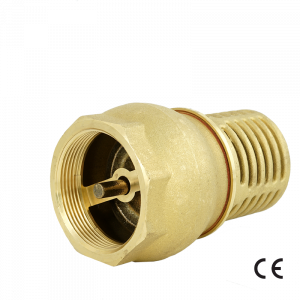

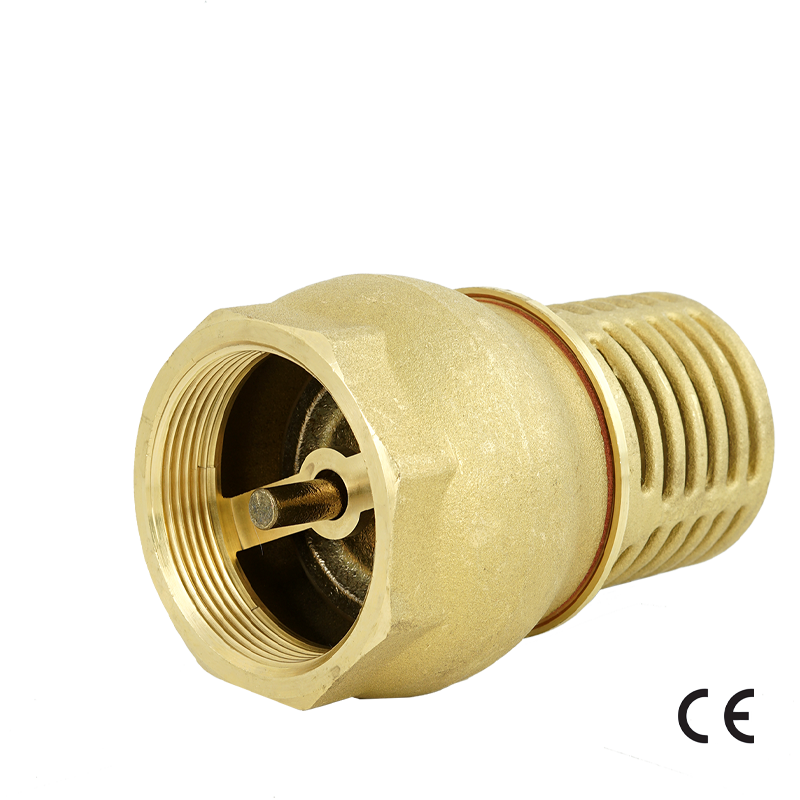

Disco check valve RV105-MMNFI (Art.-Nr.: 300-1050-xx)
- 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″
- Body: brass
- Disc: brass
- Seat: NBR
- Threads according to ISO 228/1
- Temperature range: max. 90°C
- Max. pressure: 10 bar (8 bar 1 1/4″ and above)
- Strainer: brass
Type
Check Valve
Sizes
1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Body material
Brass
Disc
Brass
Pressure range
PN10, PN8
Sealing
NBR
Sieve/Filter
Brass
Threads
ISO 228
