Threaded Ends KH119

Our carbon steel ball valve KH119, which is available with different connections, is a real allrounder. We offer it with socket weld ends and with threaded ends (ISO or NPT). Because of its high pressure range of PN63, the PTFE-ball seats are reinforced with fibre glas, its steel body and the standard ISO-top mounting flange for quarter-turn-actuators, the KH119 can be used for most applications universally. It is equipped with a lever; we also offer many other different actuator options: pneumatic (single and double acting) or electric. Due to its three-part body construction, it is very easy to maintain. The different sizes, pressure stages and materials are shown on the datasheet, which can be downloaded on our website. For special executions please contact our sales department.

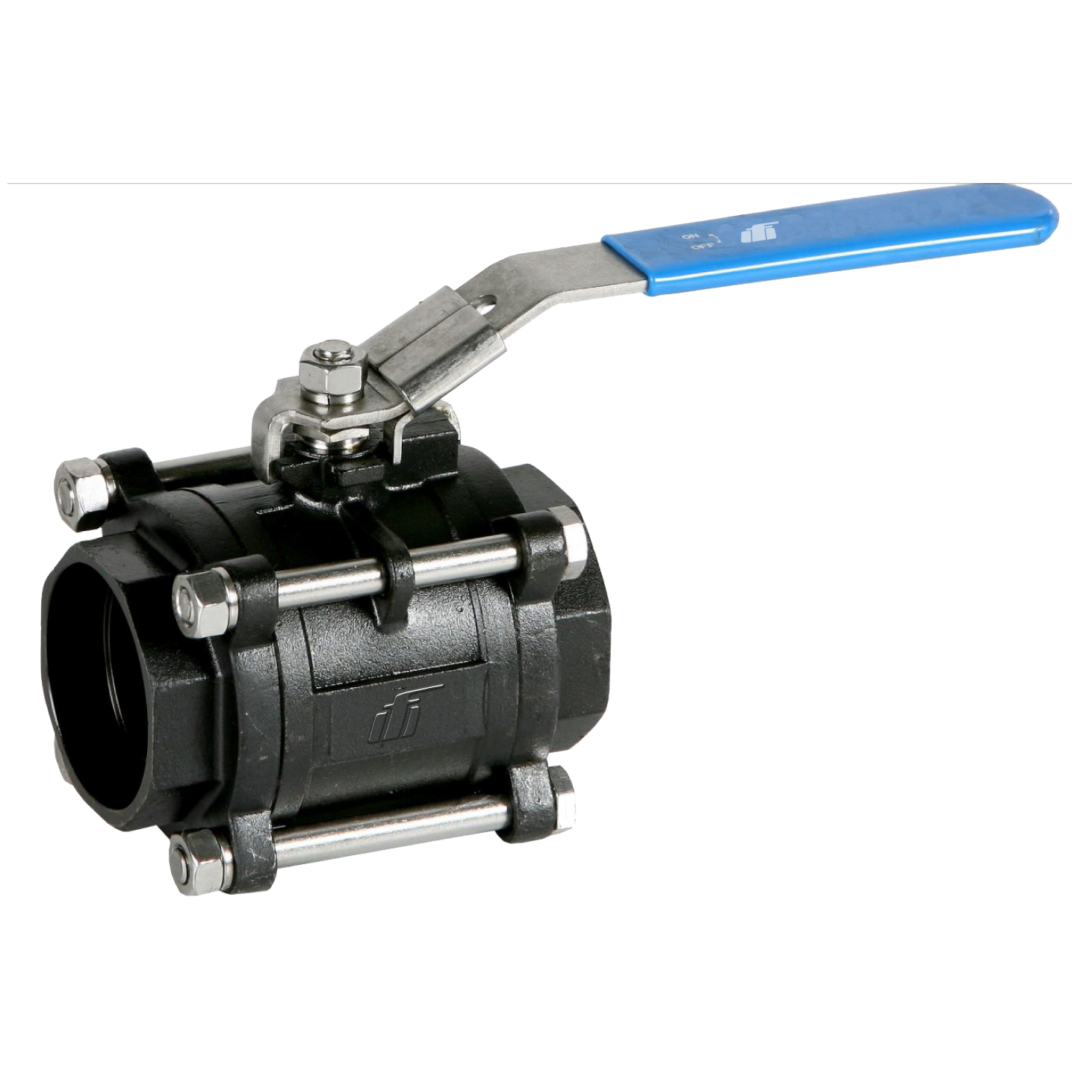

Ball valve KH119-LSTHI (Art-Nr.: 100-1102-xx)
• 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″
• Threaded ends F-F acc.´to ISO 7-1 (EN 10226-1)
• Full port
• 3- piece body
• Body: carbon steel WCB (phosphatized)
• Ball & Stem: SS316
• Ball seat: PTFE + 15% glass fibre
• Working temperature (min./max.): -25°C to +180°C
• Max. working pressure: 63 bar (1000 WOG)
• Locking system
• Blow-out proof stem
• Operation: handlever

Ball valve KH119-LSTHI (Art.-Nr.: 100-1203-xx)
• 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″
• Female thread ends acc. to ASME B1.20.1 NPT
• Full port
• 3- piece body
• Body: carbon steel WCB (phosphatized)
• Ball & Stem: SS316
• Ball seat: PTFE + 15% glass fibre
• Working temperature (min./max.): -25°C to +180°C
• Max. working pressure: 63 bar (1000 WOG)
• Locking system
• Blow-out proof stem
• Operation: handlever

Ball valve KH119-LSTHS (Art.-Nr.: 100-1034-xx)
• 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″
• Socket weld ends acc. to ASME B16.11
• Full port
• 3- piece body
• Body: carbon steel WCB (phosphatized)
• Ball & Stem: SS316
• Ball seat: PTFE + 15% glass fibre
• Working temperature (min./max.): -25°C to +180°C
• Max. working pressure: 63 bar (1000 WOG)
• Locking system
• Blow-out proof stem
• Operation: handlever

Type

Ball Valve

Operations

Lever

Sizes

1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"

Body material

Steel

Pressure range

PN63

Ball material

1.4408

Ball seat

PTFE+Glasfibre

Connection

F/F, Socket weld ends
